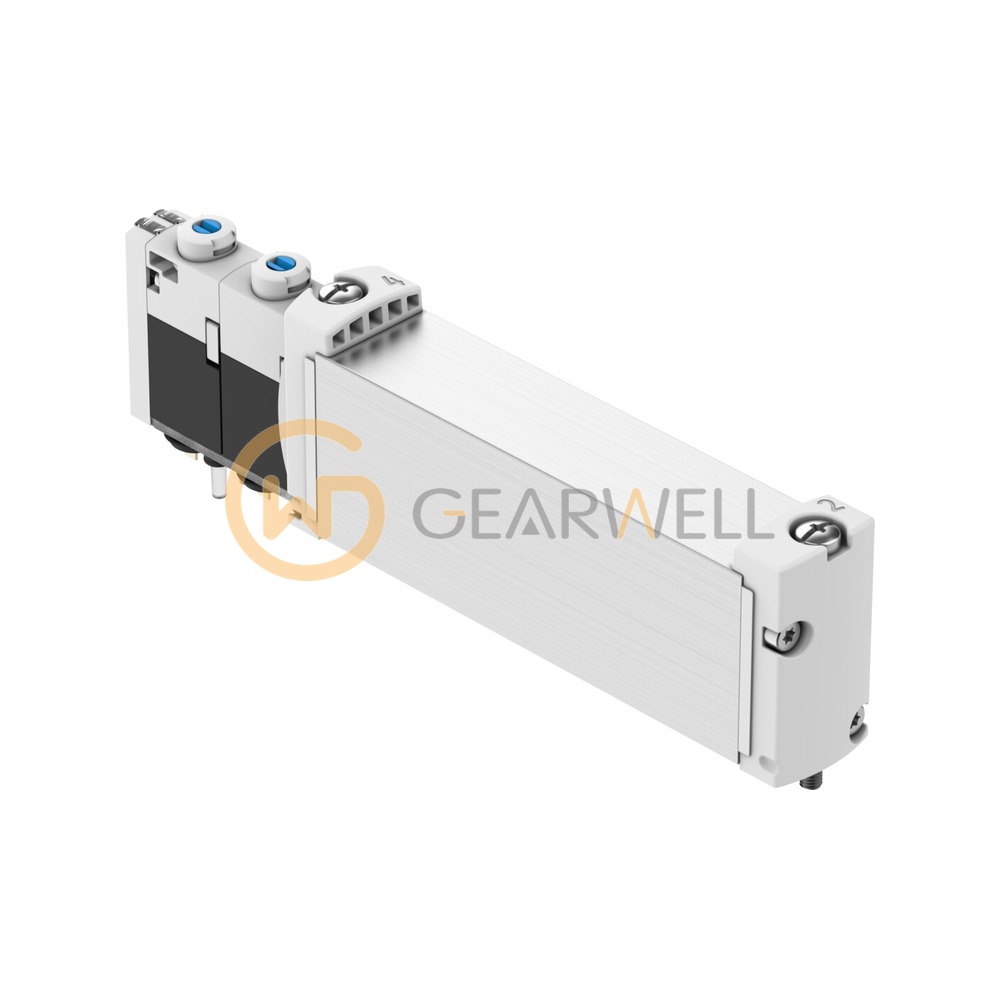

FESTO VUVG-B18-P53C-ZT-F-1T1L Solenoid Valve
- Brand
- FESTO
- Model
- VUVG-B18-P53C-ZT-F-1T1L
- GEARWELL SKU
- GWP-000011604
- Category
- Valves & Manifolds
Key specifications
- Order code
- VUVG-B18-P53C-ZT-F-1T1L
- Valve size
- 18 mm
- Reset method
- Mechanical spring
- Actuation type
- Electrical
- Valve function
- 5/3-way, closed
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO VUVG-B18-P53C-ZT-F-1T1L Solenoid Valve |
|---|---|
| Brand | FESTO |
| Model | VUVG-B18-P53C-ZT-F-1T1L |
| Category | Valves & Manifolds |
| Order code | VUVG-B18-P53C-ZT-F-1T1L |
| Valve size | 18 mm |
| Reset method | Mechanical spring |
| Actuation type | Electrical |
| Valve function | 5/3-way, closed |
| Festo part number | 8004894 |
| Operating voltage | 24V DC |
| Operating pressure | -0.9 ... 10 bar |
| Pneumatic working port | Flange |
| Normal nominal flow rate (normalized to DIN 1343) | 850 l/min |
