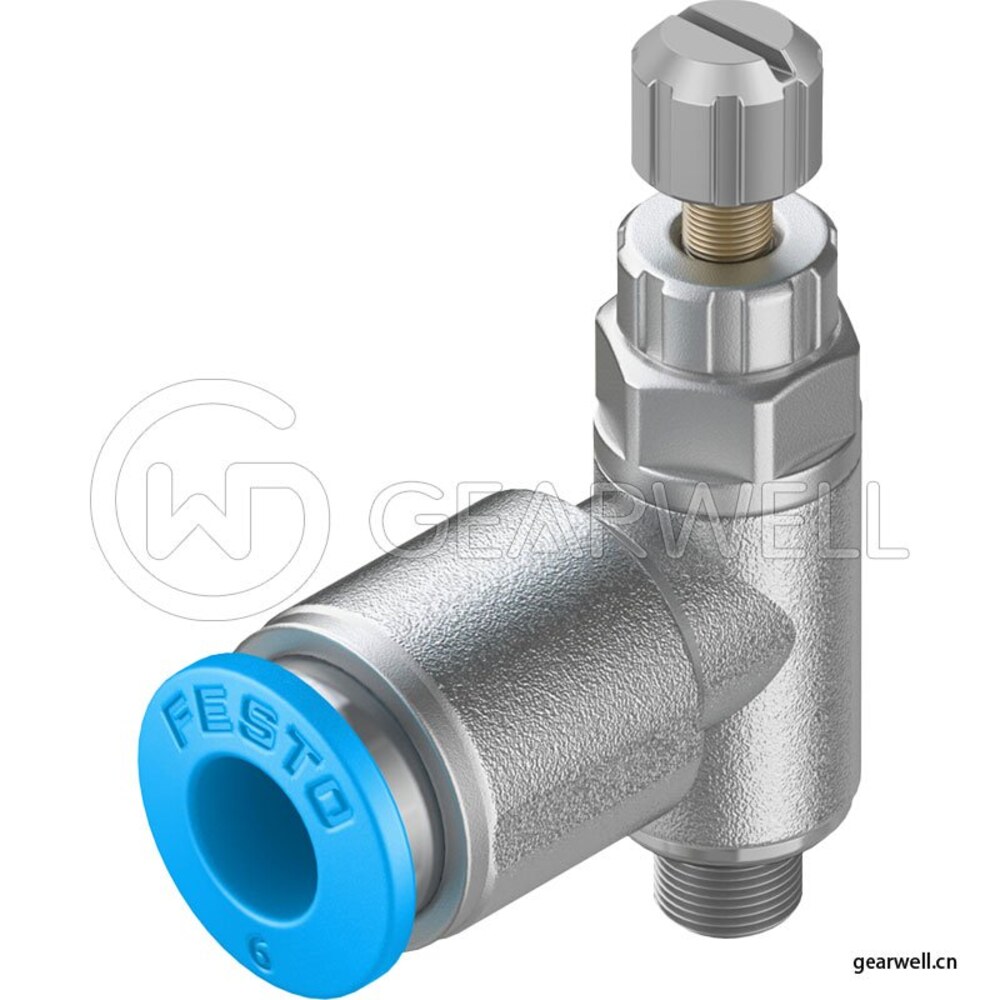

FESTO GRLA-M5-QS-6-RS-D 197578 One-way flow control valve
- Brand
- FESTO
- Model
- GRLA-M5-QS-6-RS-D 197578
- GEARWELL SKU
- GWP-000003038
- Category
- Industrial Automation Parts
Key specifications
- Valve function
- Exhaust air one-way flow control function
- Cleanroom class
- Class 4 according to ISO 14644-1
- Operating pressure
- 0.2...10 bar
- Ambient temperature
- -10...60 °C
- Adjustment component
- Knurled screw
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO GRLA-M5-QS-6-RS-D 197578 One-way flow control valve |
|---|---|
| Brand | FESTO |
| Model | GRLA-M5-QS-6-RS-D 197578 |
| Category | Industrial Automation Parts |
| Valve function | Exhaust air one-way flow control function |
| Cleanroom class | Class 4 according to ISO 14644-1 |
| Operating pressure | 0.2...10 bar |
| Ambient temperature | -10...60 °C |
| Adjustment component | Knurled screw |
| Standard nominal flow rate in flow control direction | 115 l/min |
| Pneumatic connection, port 1 | QS-6 |
| Pneumatic connection, port 2 | M5 |
