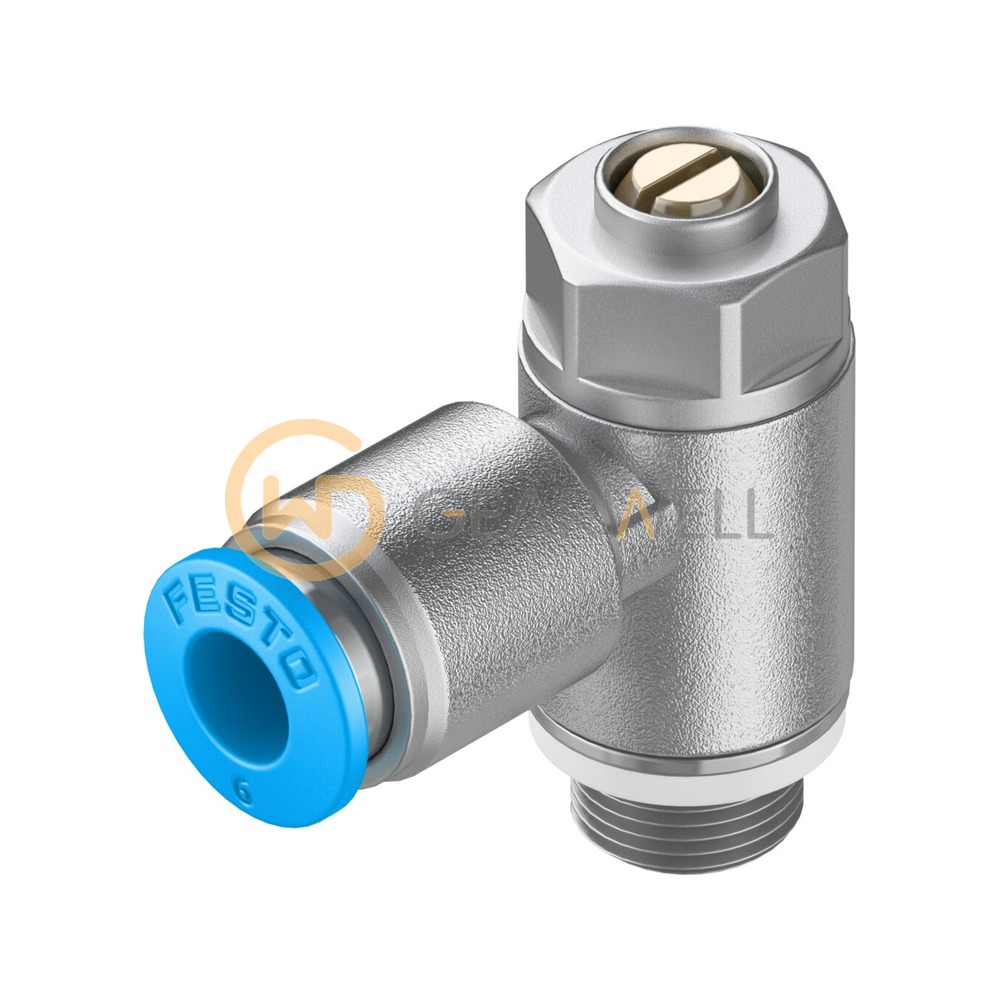

FESTO GRLA-1/8-QS-6-D One-Way Flow Control Valve
- Brand
- FESTO
- Model
- GRLA-1/8-QS-6-D
- GEARWELL SKU
- GWP-000011596
- Category
- Valves & Manifolds
Key specifications
- Order code
- GRLA-1/8-QS-6-D
- Valve function
- Exhaust air flow control non-return function
- Adjusting element
- Slotted screw
- Festo part number
- 193144
- Operating pressure
- 0.2 ... 10 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | FESTO GRLA-1/8-QS-6-D One-Way Flow Control Valve |
|---|---|
| Brand | FESTO |
| Model | GRLA-1/8-QS-6-D |
| Category | Valves & Manifolds |
| Order code | GRLA-1/8-QS-6-D |
| Valve function | Exhaust air flow control non-return function |
| Adjusting element | Slotted screw |
| Festo part number | 193144 |
| Operating pressure | 0.2 ... 10 bar |
| Ambient temperature | -10 ... 60 °C |
| Pneumatic connection 1 | QS-6 |
| Pneumatic connection 2 | G1/8 |
| Standard nominal flow rate in non-return direction | 160 ... 240 l/min |
| Standard nominal flow rate in flow control direction | 185 l/min |
