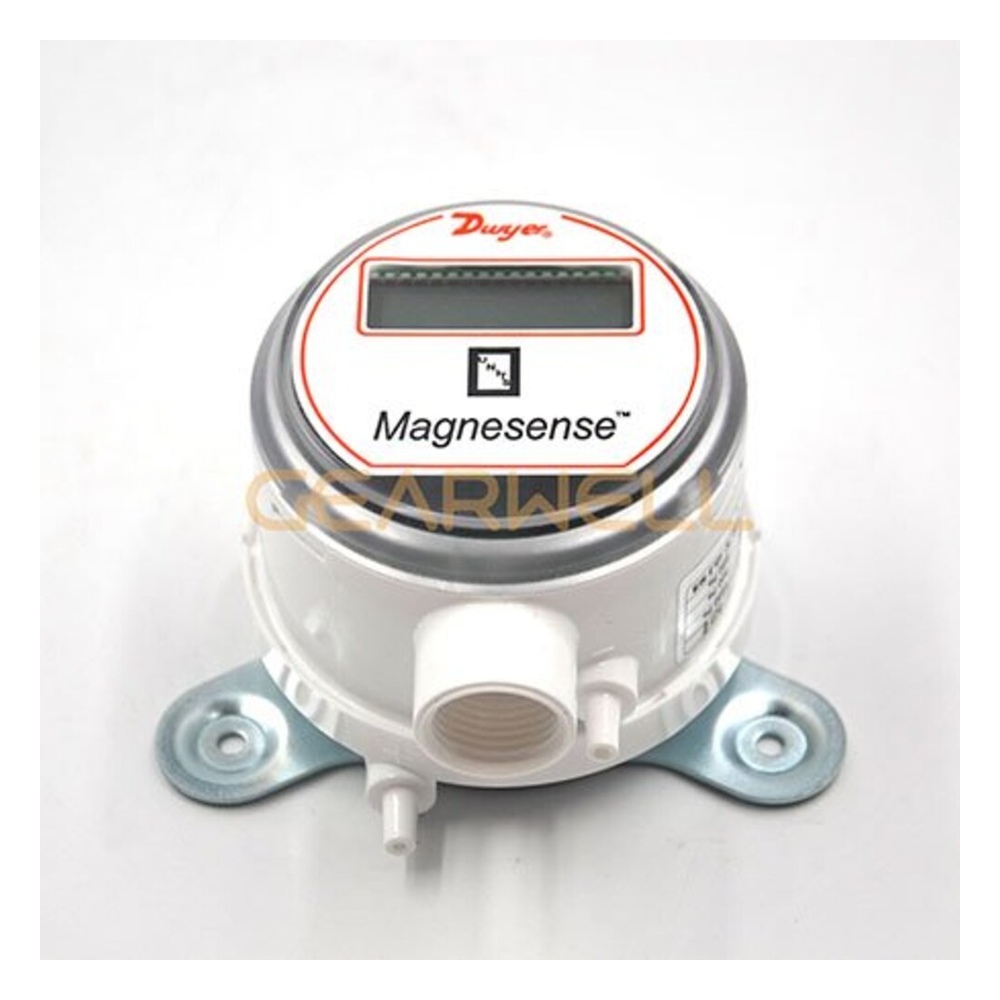

Dwyer MS-111 Differential Pressure Transmitter
- Brand
- Dwyer
- Model
- MS-111
- GEARWELL SKU
- GWP-000000554
- Category
- Industrial Automation Parts
Key specifications
- Accuracy
- ±2% at 1 in w.c.; ±1% at 2 and 5 in w.c.
- Product type
- Differential pressure transmitter
- Output signal
- 4–20 mA, 2-wire
- Pressure limits
- 1 psi operating; 10 psi burst
- Enclosure rating
- NEMA 4X (IP65)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Dwyer MS-111 Differential Pressure Transmitter |
|---|---|
| Brand | Dwyer |
| Model | MS-111 |
| Category | Industrial Automation Parts |
| Accuracy | ±2% at 1 in w.c.; ±1% at 2 and 5 in w.c. |
| Product type | Differential pressure transmitter |
| Output signal | 4–20 mA, 2-wire |
| Pressure limits | 1 psi operating; 10 psi burst |
| Enclosure rating | NEMA 4X (IP65) |
| Selectable pressure ranges | 1, 2 or 5 in w.c. (250, 500 or 1250 Pa) |
| Power requirements | 10–35 V DC, 2-wire |
| Temperature limits | -18 to 66 °C |
