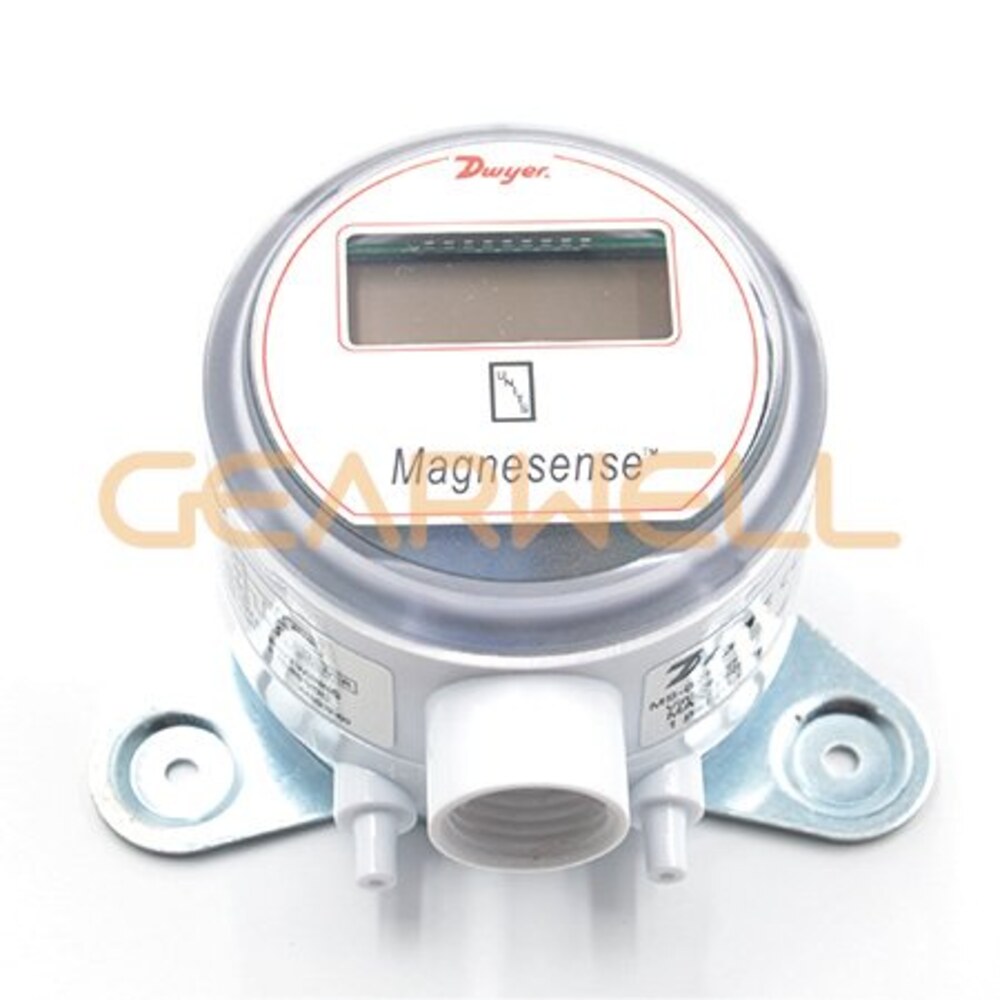

Dwyer MS-021 Series Pressure Transmitter
- Brand
- Dwyer
- Model
- MS-021
- GEARWELL SKU
- GWP-000003656
- Category
- Industrial Automation Parts
Key specifications
- Accuracy
- ±2% FS for bidirectional ranges
- Product type
- Bidirectional differential pressure transmitter
- Output signal
- 4–20 mA, 2-wire
- Pressure limits
- 1 psi operating; 10 psi burst
- Enclosure rating
- NEMA 4X (IP65)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Dwyer MS-021 Series Pressure Transmitter |
|---|---|
| Brand | Dwyer |
| Model | MS-021 |
| Category | Industrial Automation Parts |
| Accuracy | ±2% FS for bidirectional ranges |
| Product type | Bidirectional differential pressure transmitter |
| Output signal | 4–20 mA, 2-wire |
| Pressure limits | 1 psi operating; 10 psi burst |
| Enclosure rating | NEMA 4X (IP65) |
| Selectable pressure ranges | ±0.1, ±0.25 or ±0.5 in w.c. (±25, ±50 or ±100 Pa) |
| Power requirements | 10–35 V DC, 2-wire |
| Temperature limits | -18 to 66 °C |
