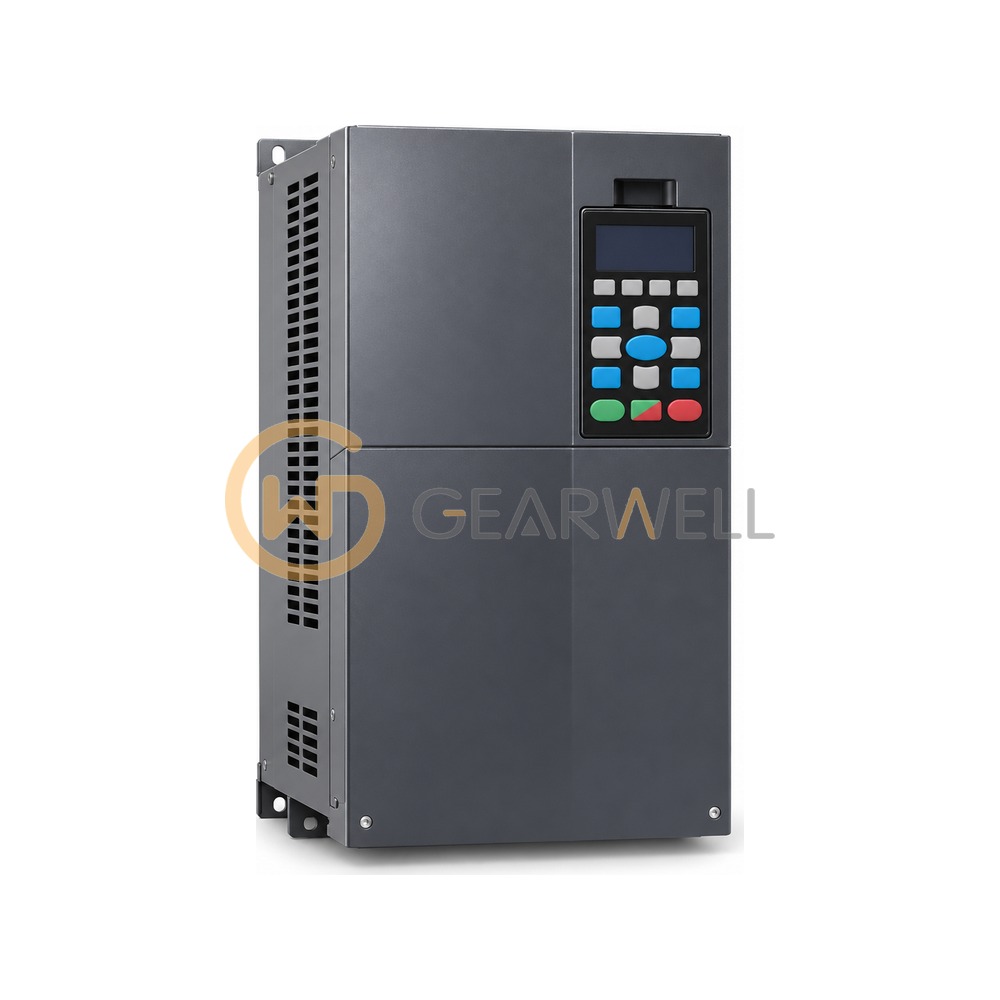

DELTA VFD550C43A-00 C2000 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD550C43A-00
- GEARWELL SKU
- GWP-000013164
- Category
- Variable Frequency Drives
Key specifications
- Frame
- D1
- Protection
- IP00 / UL Open Type (-00)
- Rated input voltage
- 3Ø, 380 ~ 480 VAC (-15% ~ +10%), 50 / 60 Hz
- HD rated input current
- 114 A
- HD rated output current
- 110 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD550C43A-00 is a C2000 Plus series vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 110 A output current in heavy duty for motors up to 55 kW (75 HP), built in frame D. In super heavy duty it delivers 91 A for 45 kW (60 HP) motors, and heavy-duty overload is 150% of rated current for 1 minute in every 5 minutes and 180% for 3 seconds in every 30 seconds. A DC reactor is built in, while the braking chopper and EMC filter are optional. The -00 suffix marks the version without conduit box, IP20 overall with an IP00 terminal area (UL open type). Version letter A denotes a wall-mount unit, and the drive is forced-air cooled.
Technical reference
| Product name | DELTA VFD550C43A-00 C2000 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD550C43A-00 |
| Category | Variable Frequency Drives |
| Frame | D1 |
| Protection | IP00 / UL Open Type (-00) |
| Rated input voltage | 3Ø, 380 ~ 480 VAC (-15% ~ +10%), 50 / 60 Hz |
| HD rated input current | 114 A |
| HD rated output current | 110 A |
| Heavy duty (HD) motor power | 55 kW |
| Super heavy duty (SHD) motor power / rated output current | 45 kW / 91 A |
