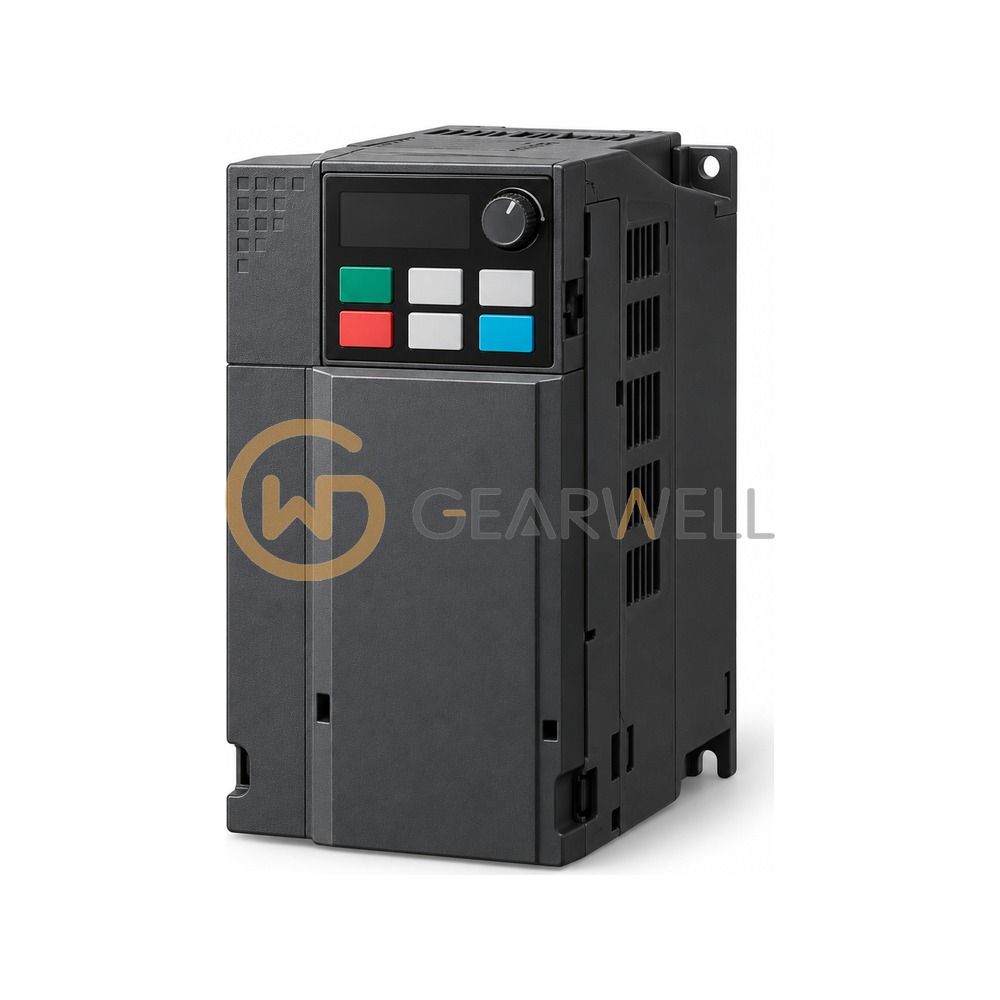

DELTA VFD4A8MS23ANSAA MS300 series AC Motor Drive
- Brand
- DELTA
- Model
- VFD4A8MS23ANSAA
- GEARWELL SKU
- GWP-000013163
- Category
- Variable Frequency Drives
Key specifications
- Frame
- A
- Size W x H (x D)
- 68 x 128 mm
- Built-in EMC filter
- No
- Applicable motor output
- 0.75 kW
- Rated voltage / frequency
- 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD4A8MS23ANSAA is an MS300 series compact AC motor drive for a 230 V 3-phase supply, rated 4.8 A output current in heavy duty for motors up to 0.75 kW (1 HP), built in frame size A. It accepts 200 to 240 V at 50/60 Hz (mains range 170 to 265 V) and delivers 5 A in normal duty. The model code marks an IP20 enclosure, no built-in EMC filter and integrated Safe Torque Off (STO). Heavy-duty overload is 150% of rated current for 60 seconds and 200% for 3 seconds, and output frequency goes up to 599 Hz; it controls induction and permanent magnet motors in V/F, SVC or sensorless FOC mode. A built-in brake chopper, a 2k-step PLC and Modbus are included.
Technical reference
| Product name | DELTA VFD4A8MS23ANSAA MS300 series AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD4A8MS23ANSAA |
| Category | Variable Frequency Drives |
| Frame | A |
| Size W x H (x D) | 68 x 128 mm |
| Built-in EMC filter | No |
| Applicable motor output | 0.75 kW |
| Rated voltage / frequency | 3-phase AC 200 V ~ 240 V (-15% ~ +10%), 50 / 60 Hz |
| Rated output current (Heavy Duty) | 4.8 A |
| Rated output current (Normal Duty) | 5 A |
