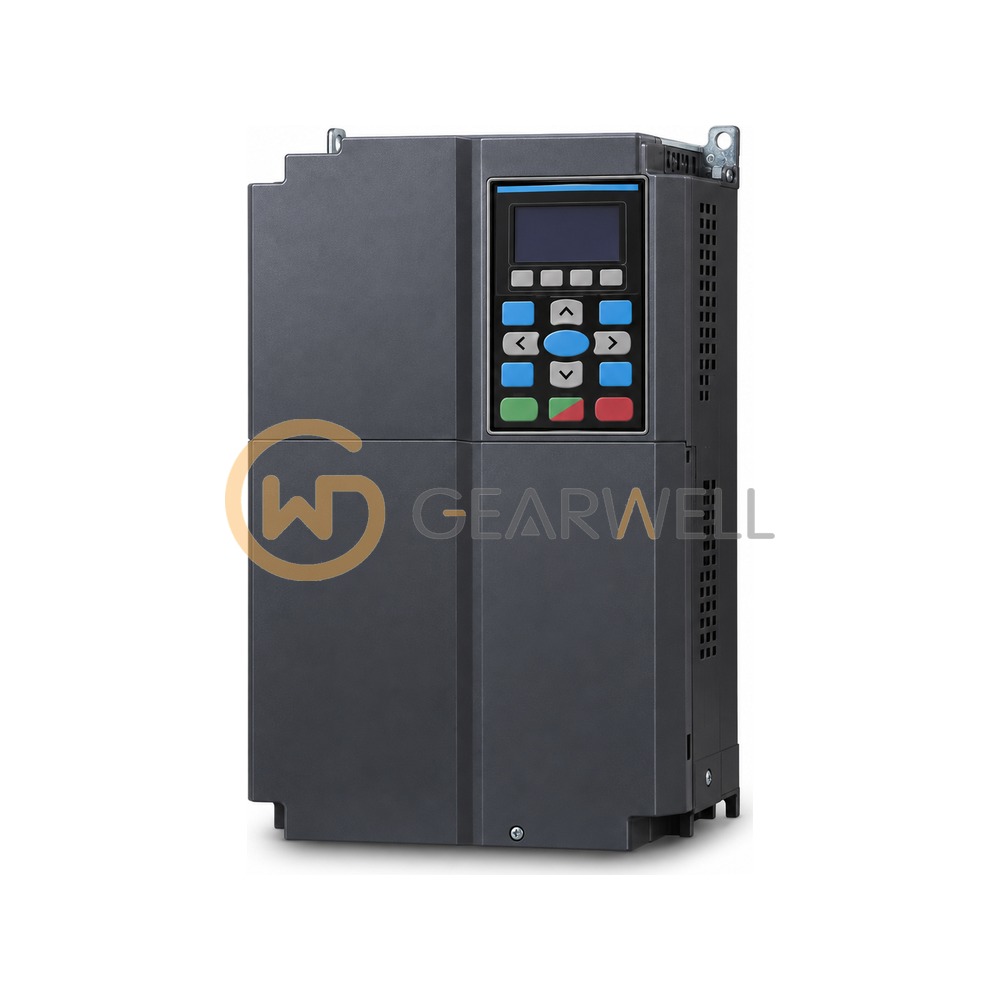

DELTA VFD055CP43B-21 CP2000 AC Motor Drive
- Brand
- DELTA
- Model
- VFD055CP43B-21
- GEARWELL SKU
- GWP-000012873
- Category
- Variable Frequency Drives
Key specifications
- Frame
- A1
- EMC filter
- No
- Overload (LD/ND)
- 120% 60s; 160% 3s / 120% 60s
- Rated power (LD/ND)
- 5.5 / 4 kW
- Dimensions (H x W x D)
- 250 x 130 x 170 mm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD055CP43B-21 is a CP2000 series fan and pump vector control AC motor drive for a 460 V 3-phase supply (380 to 480 VAC, 50/60 Hz), rated 13 A output current in light duty for motors up to 5.5 kW (7.5 HP), built in frame A. In normal duty it delivers 10.5 A for 4.0 kW (5 HP) motors; light-duty overload is 120% of rated current for 1 minute in every 5 minutes, and normal duty adds 160% for 3 seconds in every 25 seconds. A braking chopper is built in and the DC choke is optional, with no built-in EMC filter. The -21 suffix marks an IP20 version with NEMA 1 protection, supplied with top cover and standard conduit plate. Version letter B denotes a wall-mount unit.
Technical reference
| Product name | DELTA VFD055CP43B-21 CP2000 AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD055CP43B-21 |
| Category | Variable Frequency Drives |
| Frame | A1 |
| EMC filter | No |
| Overload (LD/ND) | 120% 60s; 160% 3s / 120% 60s |
| Rated power (LD/ND) | 5.5 / 4 kW |
| Dimensions (H x W x D) | 250 x 130 x 170 mm |
| Rated input current (LD/ND) | 20 / 15.5 A |
| Rated output current (LD/ND) | 13 / 10.5 A |
| Rated output capacity (LD/ND) | 9.6 / 8.4 kVA |
