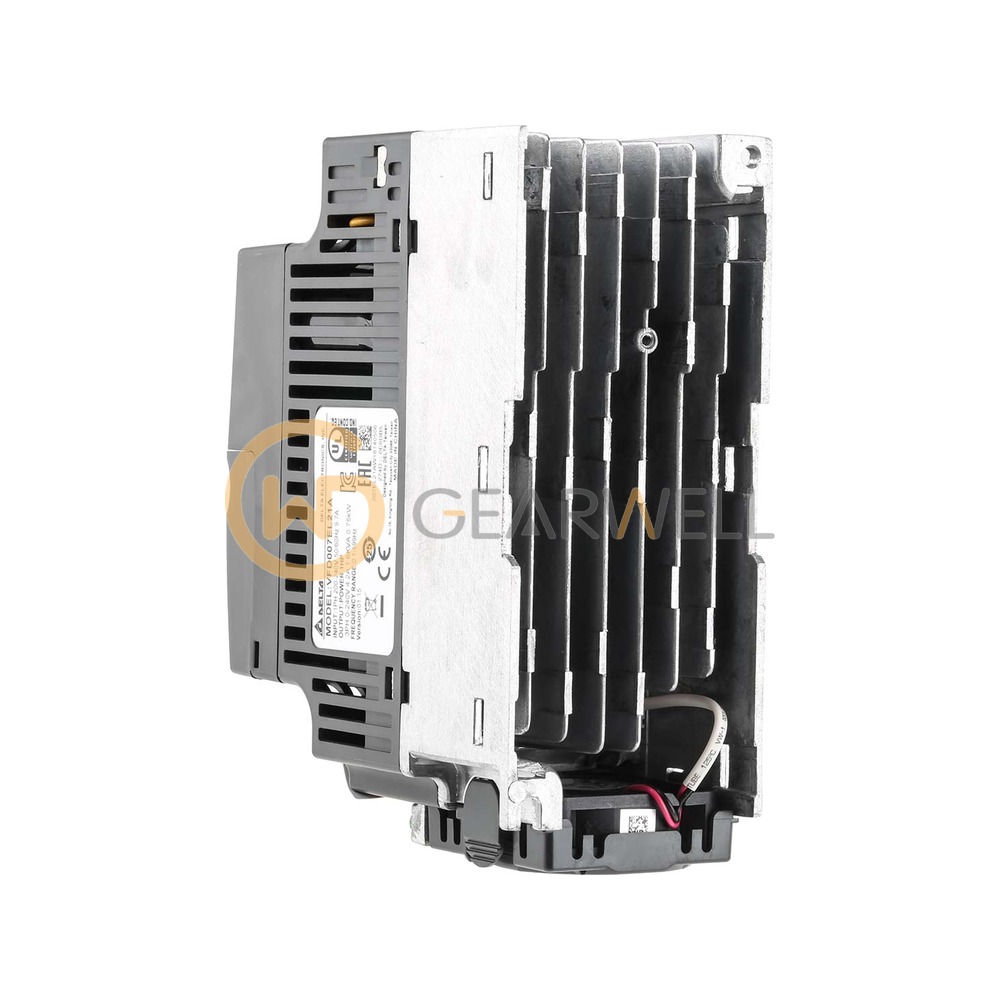

Delta VFD007EL21A VFD-EL AC Motor Drive
- Brand
- DELTA
- Model
- VFD007EL21A
- GEARWELL SKU
- GWP-000007450
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A
- Rated power
- 0.75 kW
- Input supply
- 230 V single phase
- Mains voltage range
- 180~264 V
- Rated input current
- 9.7 A
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta VFD007EL21A is a VFD-EL series micro AC motor drive with V/f control for a single-phase 200-240 V, 50/60 Hz supply. It suits a 0.75 kW (1 HP) motor, with a rated output current of 4.2 A, a rated output capacity of 1.6 kVA and a rated input current of 9.5 A. Overload capacity is 150% of rated current for 1 minute and the output frequency range is 0.1 to 599 Hz. The drive has a built-in EMC filter and an RS-485 (Modbus) port, and braking torque can be raised with an optional brake resistor. It is a frame A unit in an IP20 enclosure weighing 1.2 kg.
Technical reference
| Product name | Delta VFD007EL21A VFD-EL AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD007EL21A |
| Category | Variable Frequency Drives |
| Frame size | A |
| Rated power | 0.75 kW |
| Input supply | 230 V single phase |
| Mains voltage range | 180~264 V |
| Rated input current | 9.7 A |
| Rated output current | 4.2 A |
| Rated output capacity | 1.6 kVA |
