Delta VFD007E43T VFD-E AC Motor Drive
- Brand
- DELTA
- Model
- VFD007E43T
- GEARWELL SKU
- GWP-000007449
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- A
- Rated power
- 0.75 kW
- Input supply
- 400 V three phase
- Brake chopper
- built-in
- Mains voltage range
- 342~528 V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

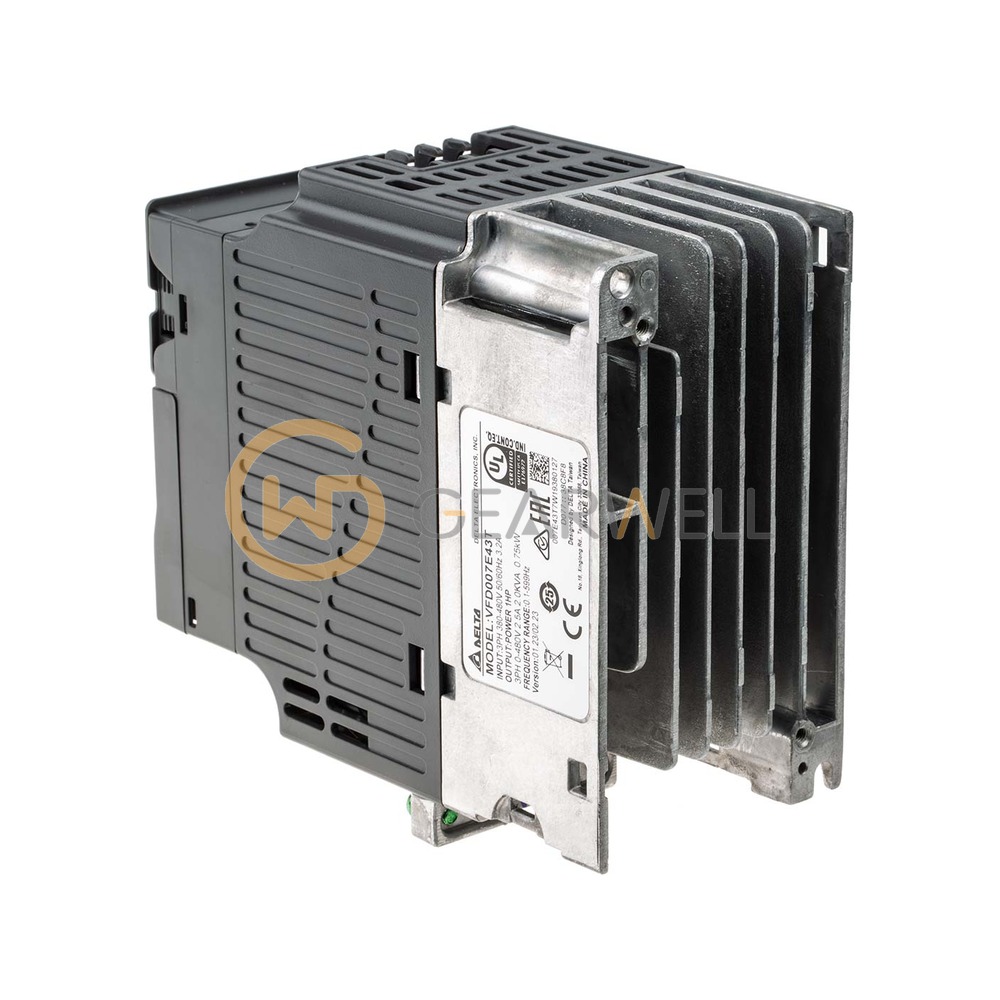

The Delta VFD007E43T is a VFD-E series sensorless vector compact AC motor drive for a 3-phase 380-480 V, 50/60 Hz supply, in the T version: a frame A drive with a built-in brake chopper. It suits a 0.75 kW (1 HP) motor, with a rated output current of 2.5 A, a rated output capacity of 2.0 kVA and a rated input current of 3.2 A. Overload capacity is 150% of rated current for 1 minute and the output frequency range is 0.1 to 599 Hz. The drive has a built-in EMC filter, a built-in PLC and an RS-485 (Modbus) port. It is a frame A1 unit in an IP20 enclosure weighing 1.2 kg.
Technical reference
| Product name | Delta VFD007E43T VFD-E AC Motor Drive |
|---|---|
| Brand | DELTA |
| Model | VFD007E43T |
| Category | Variable Frequency Drives |
| Frame size | A |
| Rated power | 0.75 kW |
| Input supply | 400 V three phase |
| Brake chopper | built-in |
| Mains voltage range | 342~528 V |
| Rated input current | 3.2 A |
| Rated output current | 2.5 A |
| Rated output capacity | 2 kVA |
