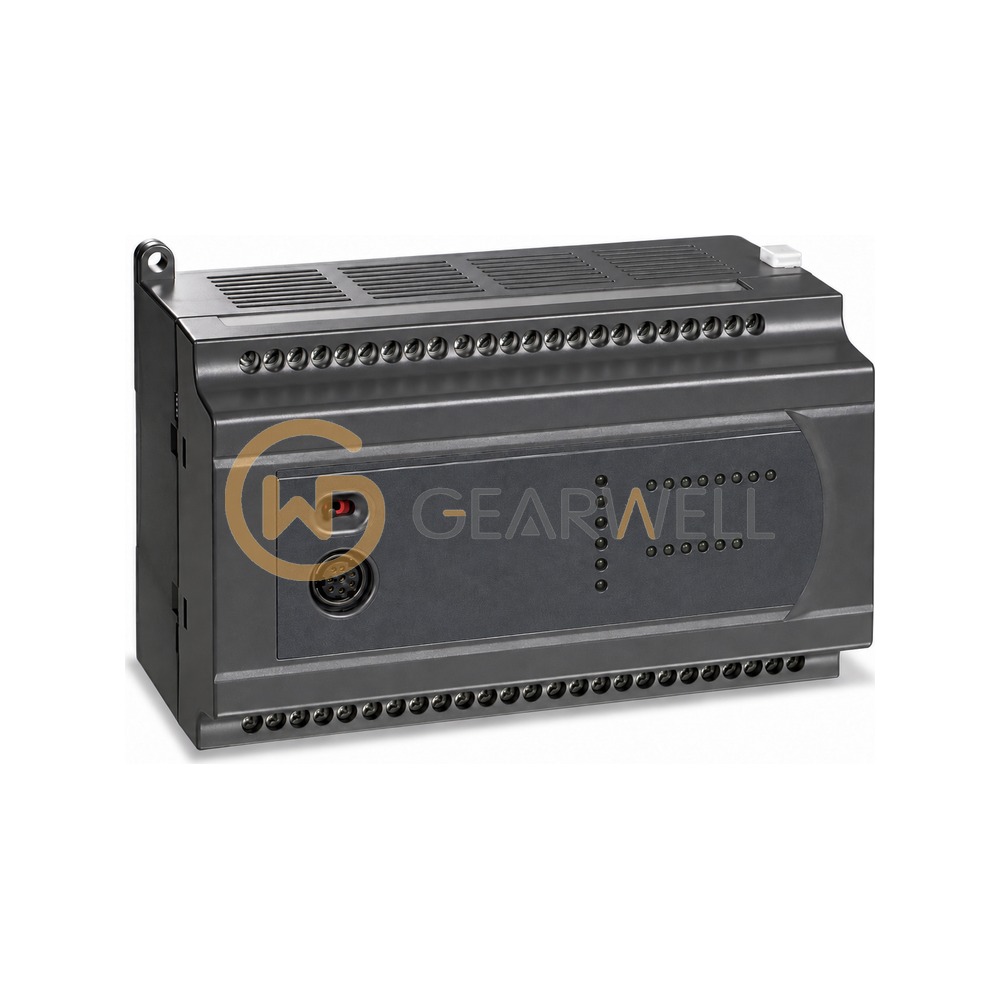

DELTA DVP60ES200T DVP-ES2 Programmable Logic Controller
- Brand
- DELTA
- Model
- DVP60ES200T
- GEARWELL SKU
- GWP-000012836
- Category
- PLCs & I/O
Key specifications
- Inputs
- 36 points
- Outputs
- 24 points
- Power supply
- 100 ~ 240 VAC
- Data register
- 10k words
- Output method
- Transistor (NPN)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta DVP60ES200T is a DVP-ES2 series standard PLC CPU powered from 100 ~ 240 VAC, with 36 digital inputs and 24 transistor outputs. It has a 32-bit CPU, 16 k steps of program capacity, 10 k words of data registers and a basic instruction speed of 0.35 μs. Communication is through 1 RS-232 and 2 RS-485 ports, and pulse control reaches 100 kHz for multi-axis applications. The housing length is 225 mm.
Technical reference
| Product name | DELTA DVP60ES200T DVP-ES2 Programmable Logic Controller |
|---|---|
| Brand | DELTA |
| Model | DVP60ES200T |
| Category | PLCs & I/O |
| Inputs | 36 points |
| Outputs | 24 points |
| Power supply | 100 ~ 240 VAC |
| Data register | 10k words |
| Output method | Transistor (NPN) |
| Program capacity | 16k steps |
| Communication ports | Built-in 1 RS-232 and 2 RS-485 ports |
| Length L (dimensions) | 225 mm |
