DELTA DVP40ES200T DVP-ES2 Standard PLC
- Brand
- DELTA
- Model
- DVP40ES200T
- GEARWELL SKU
- GWP-000003075
- Category
- Industrial Automation Parts
Key specifications
- Power supply
- 100–240 V AC
- Product type
- DVP-ES2 standard PLC
- Output method
- Transistor
- Digital inputs
- 24
- Digital outputs
- 16
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview

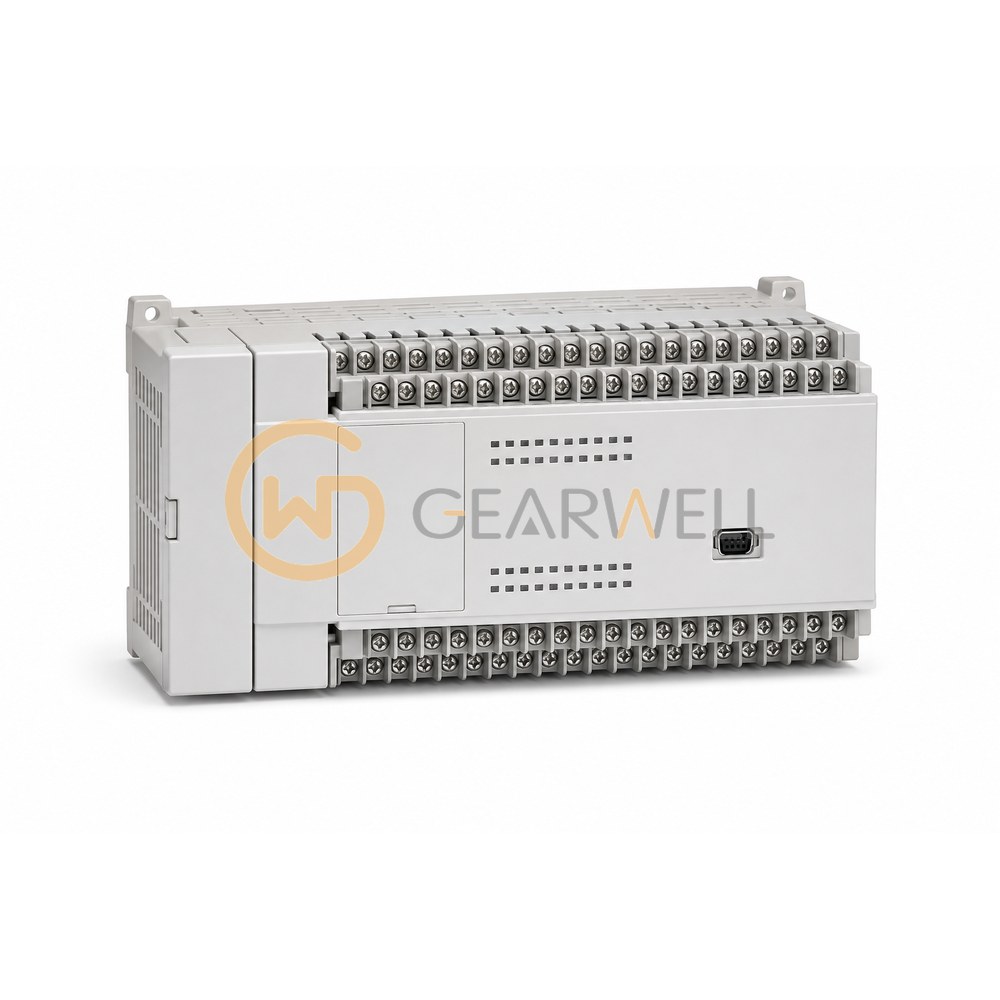

The Delta DVP40ES200T is a DVP-ES2 series standard PLC CPU powered from 100 ~ 240 VAC, with 24 digital inputs and 16 transistor outputs. It has a 32-bit CPU, 16 k steps of program capacity, 10 k words of data registers and a basic instruction speed of 0.35 μs. Communication is through 1 RS-232 and 2 RS-485 ports, and pulse control reaches 100 kHz for multi-axis applications. The housing length is 165 mm.
Technical reference
| Product name | DELTA DVP40ES200T DVP-ES2 Standard PLC |
|---|---|
| Brand | DELTA |
| Model | DVP40ES200T |
| Category | Industrial Automation Parts |
| Power supply | 100–240 V AC |
| Product type | DVP-ES2 standard PLC |
| Output method | Transistor |
| Digital inputs | 24 |
| Digital outputs | 16 |
| Basic instruction execution time | 0.35 μs |
