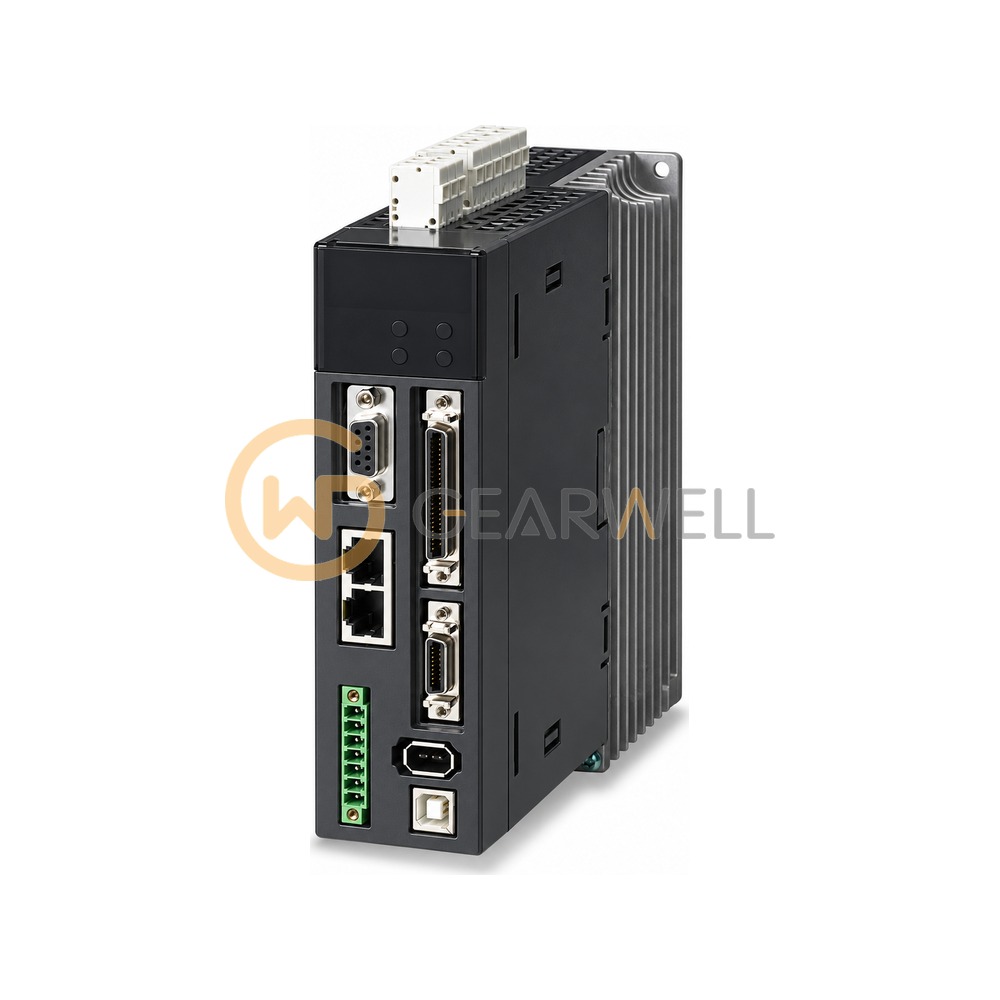

DELTA ASD-A2-2023-M ASDA-A2 AC Servo Drive
- Brand
- DELTA
- Model
- ASD-A2-2023-M
- GEARWELL SKU
- GWP-000012554
- Category
- Servo Systems
Key specifications
- Phase / Voltage
- 3-phase 220VAC; permissible range 3-phase 200 ~ 230VAC, -15% ~ 10%
- Input current (3PH)
- 8.76 Arms
- Rated output power
- 2 kW
- Continuous output current
- 13.4 Arms
- Model type M (network model)
- RS-485 (CN3) yes, full-closed control (CN5) yes, extension DI port (CN7) no, EtherCAT no, CANopen yes, DMCNET no, analog voltage control yes, pulse input yes, PR parameters yes, E-CAM yes
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ASD-A2-2023-M is a Delta ASDA-A2 series AC servo drive rated 2 kW for 220 V three-phase supply. It delivers 13.4 Arms continuous and 40.20 A peak output current, with an input current of 8.76 Arms. The M suffix marks the network model with CANopen and the built-in electronic cam (E-CAM) function, alongside an RS-485 port, a full-closed-loop encoder input, pulse and analog voltage command inputs and the internal PR position mode. Feedback supports 20-bit incremental and 17-bit absolute encoders, and the drive is rated IP20 for cabinet mounting.
Technical reference
| Product name | DELTA ASD-A2-2023-M ASDA-A2 AC Servo Drive |
|---|---|
| Brand | DELTA |
| Model | ASD-A2-2023-M |
| Category | Servo Systems |
| Phase / Voltage | 3-phase 220VAC; permissible range 3-phase 200 ~ 230VAC, -15% ~ 10% |
| Input current (3PH) | 8.76 Arms |
| Rated output power | 2 kW |
| Continuous output current | 13.4 Arms |
| Model type M (network model) | RS-485 (CN3) yes, full-closed control (CN5) yes, extension DI port (CN7) no, EtherCAT no, CANopen yes, DMCNET no, analog voltage control yes, pulse input yes, PR parameters yes, E-CAM yes |
| Max. instantaneous output current | 40.20 A |
| Encoder resolution / feedback resolution | Incremental encoder: 20-bit / Absolute encoder: 17-bit |
