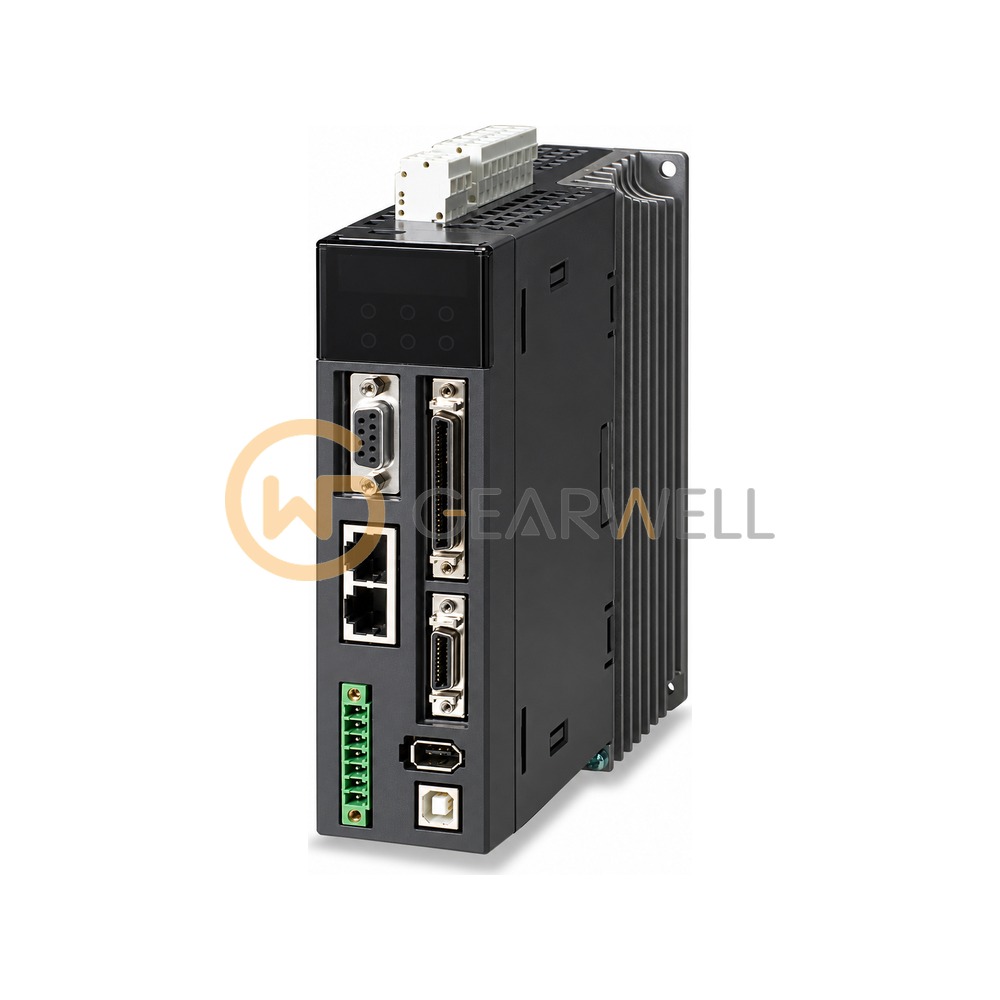

DELTA ASD-A2-1521-L ASDA-A2 AC Servo Drive
- Brand
- DELTA
- Model
- ASD-A2-1521-L
- GEARWELL SKU
- GWP-000012827
- Category
- Servo Systems
Key specifications
- Phase / Voltage
- Three-phase / Single-phase 220VAC
- Input current (1PH)
- 10.3 Arms
- Input current (3PH)
- 5.9 Arms
- Rated output power
- 1.5 kW
- Continuous output current
- 8.3 Arms
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ASD-A2-1521-L is a Delta ASDA-A2 series AC servo drive rated 1.5 kW for 220 V single-phase or three-phase supply. It delivers 8.86 Arms continuous output current, with input current of 6.33 Arms on three-phase and 10.96 Arms on single-phase supply. The L suffix marks the standard model with an RS-485 port, a full-closed-loop encoder input, pulse and analog voltage command inputs and the internal PR position mode. Feedback supports 20-bit incremental and 17-bit absolute encoders, and the drive is rated IP20 for cabinet mounting.
Technical reference
| Product name | DELTA ASD-A2-1521-L ASDA-A2 AC Servo Drive |
|---|---|
| Brand | DELTA |
| Model | ASD-A2-1521-L |
| Category | Servo Systems |
| Phase / Voltage | Three-phase / Single-phase 220VAC |
| Input current (1PH) | 10.3 Arms |
| Input current (3PH) | 5.9 Arms |
| Rated output power | 1.5 kW |
| Continuous output current | 8.3 Arms |
| Permissible voltage range | 1-phase / 3-phase 200 ~ 230VAC, -15% ~ 10% |
| Model type L (standard model) | RS-485 (CN3), full-closed control (CN5), analog voltage control, pulse input, PR parameters; no CN7 extension DI, EtherCAT, CANopen, DMCNET or E-CAM |
| Encoder resolution / feedback resolution | Incremental encoder: 20-bit / Absolute encoder: 17-bit |
