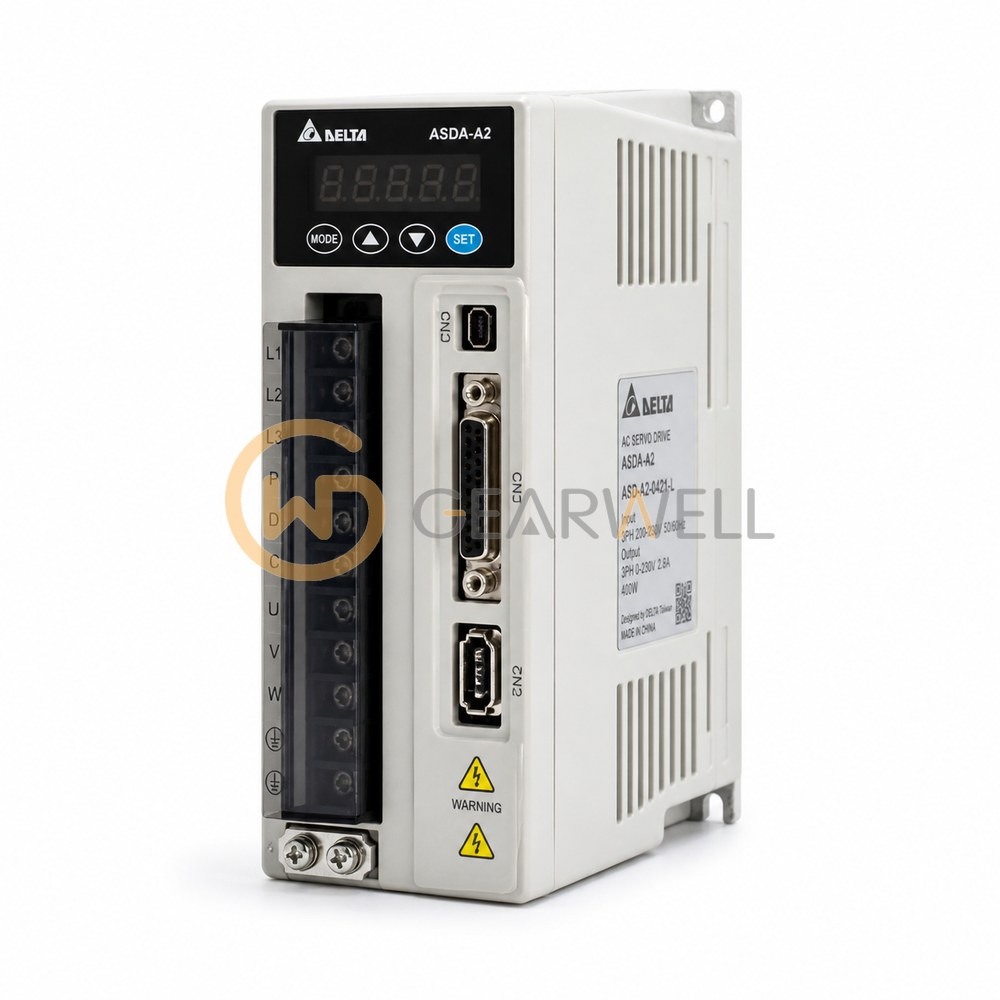

DELTA ASD-A2-0421-L ASDA-A2 Servo Drive
- Brand
- DELTA
- Model
- ASD-A2-0421-L
- GEARWELL SKU
- GWP-000003856
- Category
- Industrial Automation Parts
Key specifications
- Input phase
- Single-phase or three-phase
- Product type
- ASDA-A2 servo drive
- Rated output
- 400 W
- Input voltage
- 200–230 V AC
- Output voltage
- 110 V AC
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Delta ASD-A2-0421-L is a Delta ASDA-A2 series AC servo drive rated 400 W for 220 V single-phase or three-phase supply. It delivers 2.6 Arms continuous and 7.80 A peak output current, with input current of 1.86 Arms on three-phase and 3.22 Arms on single-phase supply. The L suffix marks the standard model with an RS-485 port, a full-closed-loop encoder input, pulse and analog voltage command inputs and the internal PR position mode. Feedback supports 20-bit incremental and 17-bit absolute encoders, and the drive is rated IP20 for cabinet mounting.
Technical reference
| Product name | DELTA ASD-A2-0421-L ASDA-A2 Servo Drive |
|---|---|
| Brand | DELTA |
| Model | ASD-A2-0421-L |
| Category | Industrial Automation Parts |
| Input phase | Single-phase or three-phase |
| Product type | ASDA-A2 servo drive |
| Rated output | 400 W |
| Input voltage | 200–230 V AC |
| Output voltage | 110 V AC |
| Input frequency | 50/60 Hz |
| Output frequency | 0–250 Hz |
| Rated output current | 2.6 A |
