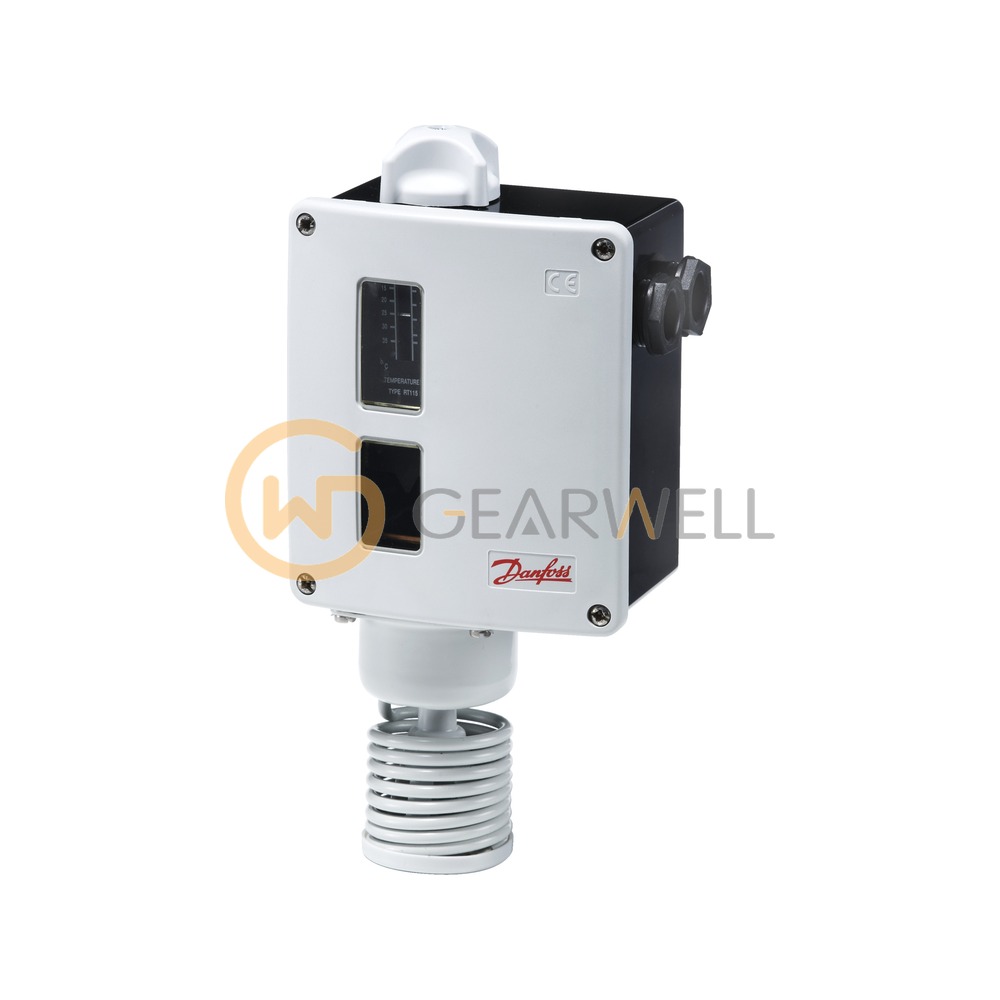

DANFOSS RT115 RT Series Thermostat Temperature Switch

Key specifications

Type: RT115
Enclosure: IP66
Net weight: 0.868 kg
Differential: 1.8 (fixed) C
Contact rating: AC15 3 A 400 V; AC1 10 A 400 V; AC3 4 A 400 V; DC13 12 W 220 V

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	DANFOSS RT115 RT Series Thermostat Temperature Switch
Brand	DANFOSS
Model	RT115
Category	Pressure, Flow & Temperature
Type	RT115
Enclosure	IP66
Net weight	0.868 kg
Differential	1.8 (fixed) C
Contact rating	AC15 3 A 400 V; AC1 10 A 400 V; AC3 4 A 400 V; DC13 12 W 220 V
Code no. options	017-519766 / 017-519866 (specify on order)
Contact function	SPDT
Ambient temperature	-50 ... +70 C
Electrical connection	2 x Pg 13.5 screwed cable entry
Max. sensor temperature	92 C
