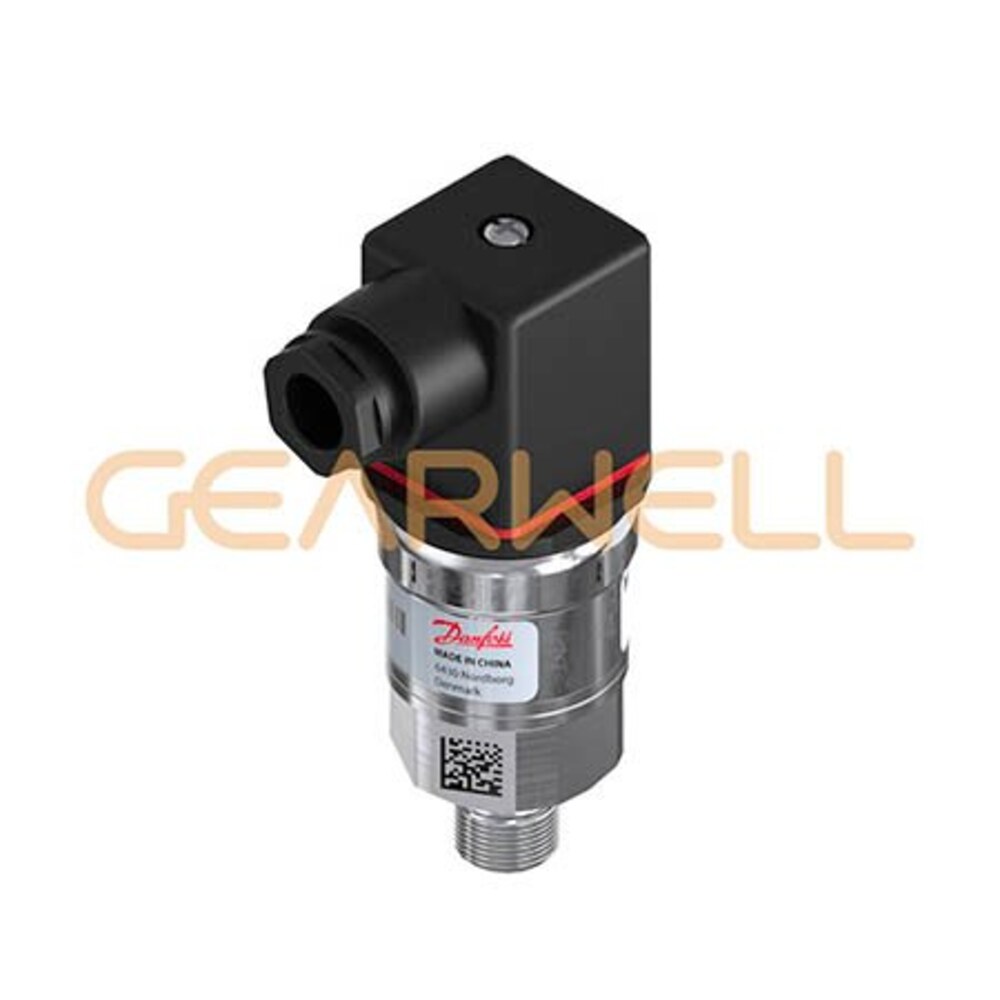

DANFOSS MBS3050-060G3 Pressure Transmitter
- Brand
- DANFOSS
- Model
- MBS3050-060G3
- GEARWELL SKU
- GWP-000004152
- Category
- Industrial Automation Parts
Key specifications
- Typical accuracy
- 0.5% FS
- Enclosure rating
- IP65 to IP69K (configuration dependent)
- Product type
- Industrial pressure transmitter with integrated pulse snubber
- Output signals
- 4 to 20 mA or voltage
- Available pressure range
- 0 to 1 bar through 0 to 600 bar
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS MBS3050-060G3 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | MBS3050-060G3 |
| Category | Industrial Automation Parts |
| Typical accuracy | 0.5% FS |
| Enclosure rating | IP65 to IP69K (configuration dependent) |
| Product type | Industrial pressure transmitter with integrated pulse snubber |
| Output signals | 4 to 20 mA or voltage |
| Available pressure range | 0 to 1 bar through 0 to 600 bar |
| Wetted parts material | AISI 316L stainless steel |
| Media temperature | -40 to 85 deg C |
| Pressure reference | Absolute or gauge |
