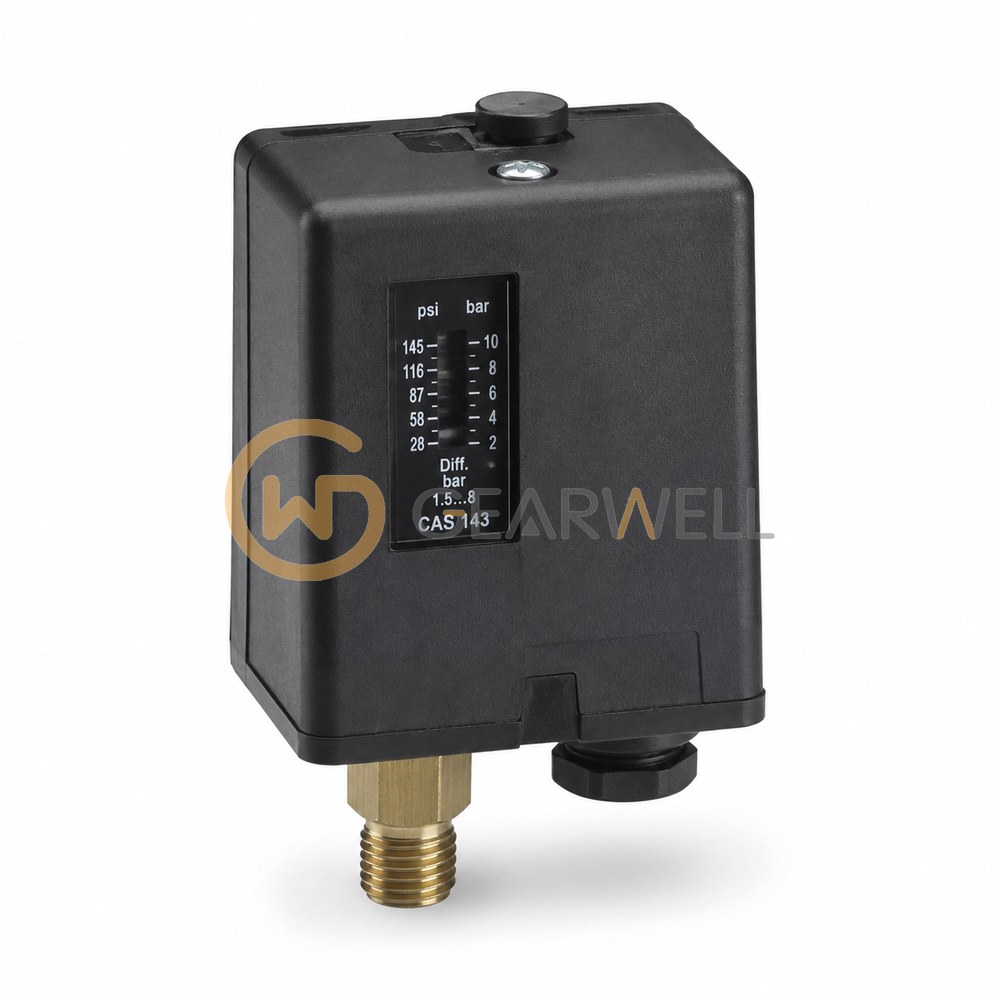

DANFOSS CAS143 060-316066 Pressure controller
- Brand
- DANFOSS
- Model
- CAS143 060-316066
- GEARWELL SKU
- GWP-000001537
- Category
- Industrial Automation Parts
Key specifications
- Differential [bar]
- 0.2 bar … 0.6 bar
- Differential [psi]
- 2.9 psi … 8.7 psi
- Burst pressure [bar]
- 240 bar
- Enclosure rating IP
- IP67
- Electrical connection
- Screwed cable entry
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060-316066 is a Danfoss CAS143 pressure switch with a diaphragm sensing element and a regulation range of 1 to 10 bar (14.5 to 145 psig), and a differential of 0.2 to 0.6 bar. It has an SPDT contact rated AC15 0.1 A at 220 V and DC13 12 W at 125 V. The pressure connection is G 1/4 female (ISO 228-1) and the electrical connection is a Pg 13.5 screwed cable entry with metal gland, in an IP67 enclosure. Maximum working pressure is 120 bar, the ambient range is -25 to 70 °C, and net weight is 1.11 kg.
Technical reference
| Product name | DANFOSS CAS143 060-316066 Pressure controller |
|---|---|
| Brand | DANFOSS |
| Model | CAS143 060-316066 |
| Category | Industrial Automation Parts |
| Differential [bar] | 0.2 bar … 0.6 bar |
| Differential [psi] | 2.9 psi … 8.7 psi |
| Burst pressure [bar] | 240 bar |
| Enclosure rating IP | IP67 |
| Electrical connection | Screwed cable entry |
| Electrical connection size | Pg 13.5 |
| Ambient temperature range [°C] | -25 °C … 70 °C |
| Electrical connection standard | DIN 40430 |
