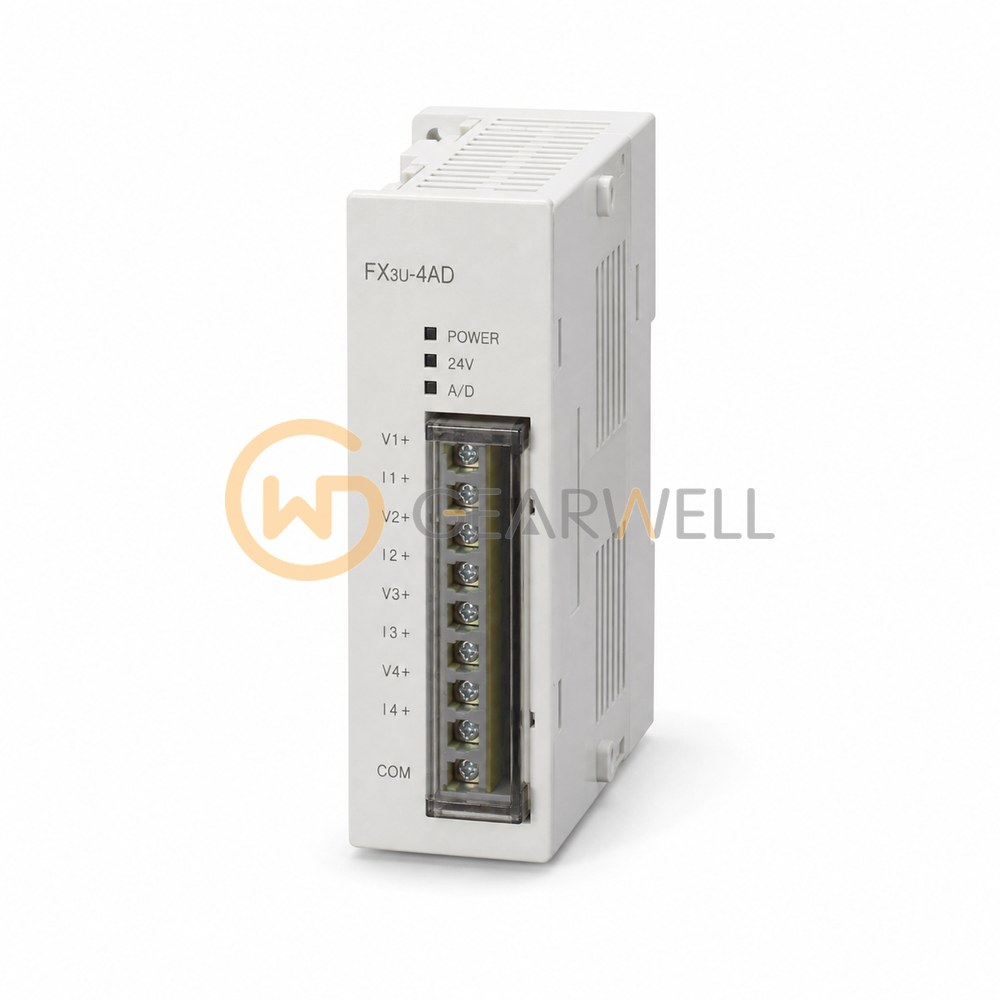

Mitsubishi Electric FX3U-4AD Input Module
- Brand
- Mitsubishi Electric
- Model
- FX3U-4AD
- GEARWELL SKU
- GWP-000000200
- Category
- Industrial Automation Parts
Key specifications
- Resolution
- 15-bit + sign for voltage; 14-bit + sign for current
- Power supply
- 5 V DC 110 mA internal; 24 V DC ±10% 90 mA external
- Product type
- MELSEC-F analog input module
- Input channels
- 4
- A/D conversion time
- 500 µs per channel in use
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Mitsubishi Electric FX3U-4AD is a MELSEC-F special function block with 4 voltage/current analog input channels. It occupies 8 I/O points on the PLC and draws 110 mA from the PLC's 5 V DC supply plus 90 mA from an external 24 V DC supply. Mitsubishi lists it for both FX3U and FX3G main units. Confirm the PLC model and the input signal ranges you need when requesting a quote.
Technical reference
| Product name | Mitsubishi Electric FX3U-4AD Input Module |
|---|---|
| Brand | Mitsubishi Electric |
| Model | FX3U-4AD |
| Category | Industrial Automation Parts |
| Resolution | 15-bit + sign for voltage; 14-bit + sign for current |
| Power supply | 5 V DC 110 mA internal; 24 V DC ±10% 90 mA external |
| Product type | MELSEC-F analog input module |
| Input channels | 4 |
| A/D conversion time | 500 µs per channel in use |
| Current input range | -20 to +20 mA DC or 4 to 20 mA DC |
| Voltage input range | -10 to +10 V DC |
| Operating temperature | 0 to 55 °C |
