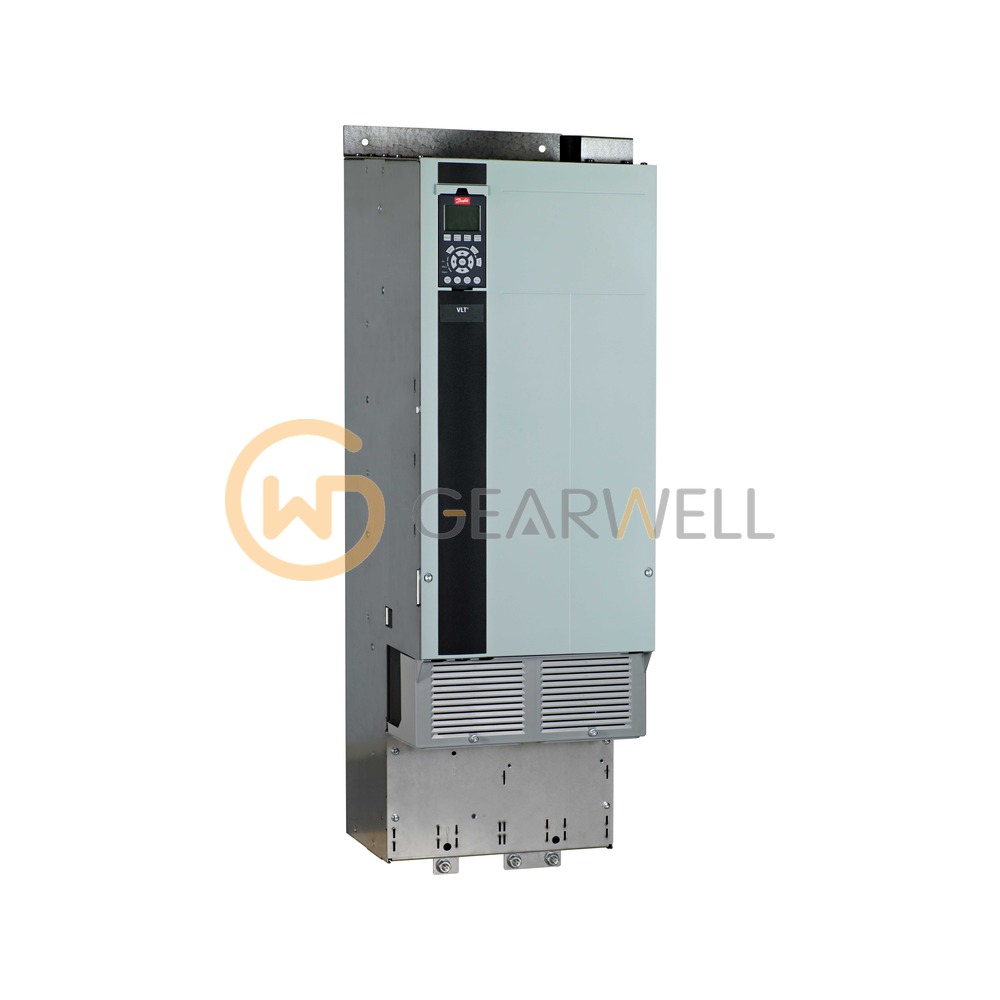

Danfoss 134F8456 VLT HVAC Drive FC 102 AC Drive
- Brand
- DANFOSS
- Model
- 134F8456
- GEARWELL SKU
- GWP-000011626
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- D3h
- Danfoss type code
- FC-102N110T4E20H2XGC7XXSXXXXAXBXCXXXXDX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code C)
- Coated PCB
- RFI filter (code H2)
- RFI Filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 134F8456 is a VLT® HVAC Drive FC 102 frequency converter for HVAC applications with the full type code FC-102N110T4E20H2XGC7XXSXXXXAXBXCXXXXDX, rated 110 kW / 150 hp (N110) for three-phase 380 - 480 VAC mains (T4). It delivers 212 A continuous and 233 A intermittent output current at 3 x 380-440 V and 190 A continuous at 3 x 441-480 V, in normal overload (110% for 1 min in 10 min). It is an IP20 / chassis unit (E20) in frame D3h with an H2 RFI filter, no brake chopper, the graphical local control panel (G), a coated PCB (C) and the fuse mains option (7). No A, B, C or D options are fitted. Dimensions are 909 x 250 x 375 mm (height x width x depth) and the net weight is 63 kg.
Technical reference
| Product name | Danfoss 134F8456 VLT HVAC Drive FC 102 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 134F8456 |
| Category | Variable Frequency Drives |
| Frame size | D3h |
| Danfoss type code | FC-102N110T4E20H2XGC7XXSXXXXAXBXCXXXXDX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code C) | Coated PCB |
| RFI filter (code H2) | RFI Filter |
| Mains option (code 7) | Fuse |
| Brake chopper (code X) | No |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code N110) | 110 kW / 150 HP |
| Local control panel (code G) | Graphical local control panel |
