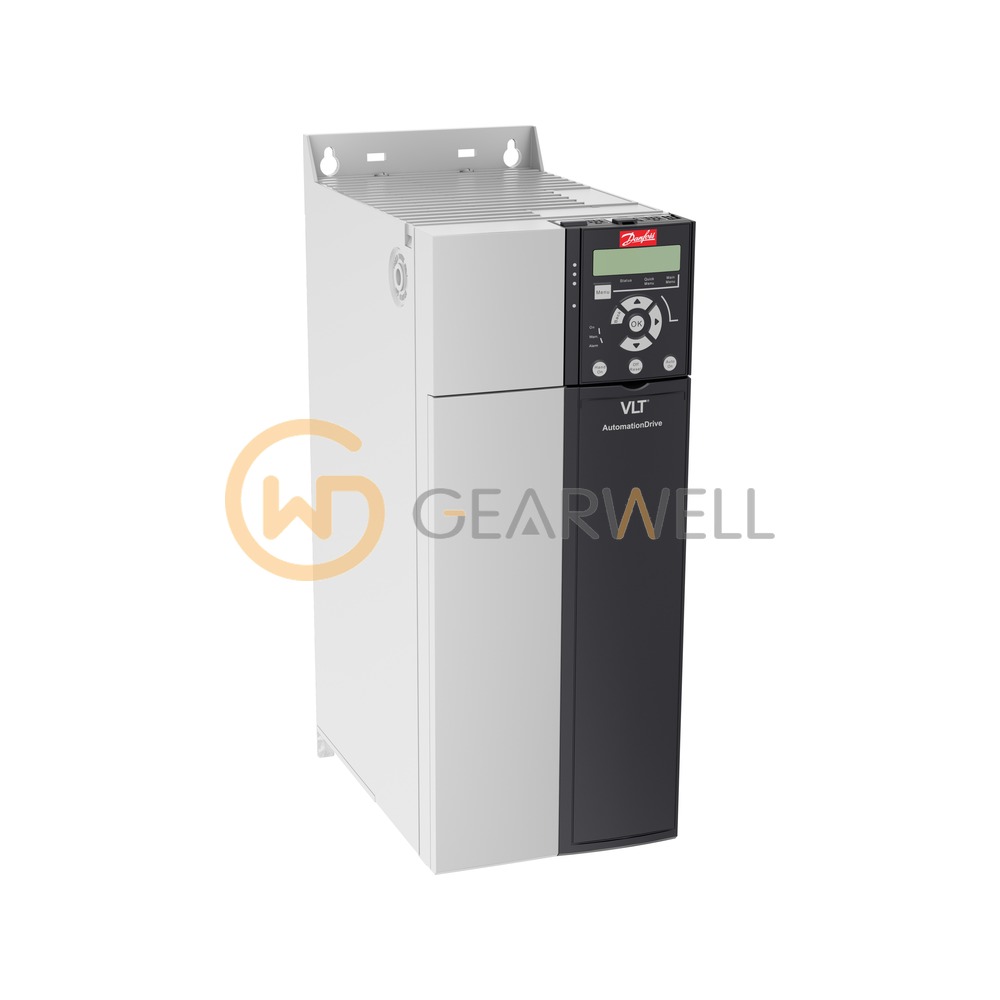

Danfoss 134F2983 VLT AutomationDrive FC 360 AC Drive
- Brand
- DANFOSS
- Model
- 134F2983
- GEARWELL SKU
- GWP-000011625
- Category
- Variable Frequency Drives
Key specifications
- Frame size
- J5
- Display (code X)
- No display (no blind cover)
- Danfoss type code
- FC-360H22KT4E20H2BXCDXXSXXXXAXBX
- Enclosure (code E20)
- IP20 / Chassis
- PCB coating (code C)
- Coated PCB
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 134F2983 is a VLT® AutomationDrive FC 360 frequency converter with the full type code FC-360H22KT4E20H2BXCDXXSXXXXAXBX, rated 22 kW / 30 hp in high overload (H22K) for three-phase 380-480 V AC mains (T4). It delivers 42.5 A continuous output current at 3 x 380-440 V, 40 A at 3 x 441-480 V and 63.8 A intermittent for 60 s, with high overload defined as 150% current during 60 s. It is an IP20 / chassis unit (E20) in frame J5 with an RFI filter class A2 (H2) and a brake chopper (B). No display is fitted (X; the LCP is an external option), the PCB is coated (C) and the mains option position is D, loadsharing; the control card is standard and no B option is fitted. The net weight is 12.5 kg.
Technical reference
| Product name | Danfoss 134F2983 VLT AutomationDrive FC 360 AC Drive |
|---|---|
| Brand | DANFOSS |
| Model | 134F2983 |
| Category | Variable Frequency Drives |
| Frame size | J5 |
| Display (code X) | No display (no blind cover) |
| Danfoss type code | FC-360H22KT4E20H2BXCDXXSXXXXAXBX |
| Enclosure (code E20) | IP20 / Chassis |
| PCB coating (code C) | Coated PCB |
| RFI filter (code H2) | RFI Class A2 |
| Mains option (code D) | Loadsharing |
| Brake chopper (code B) | Yes |
| Mains supply (code T4) | 3-phase 380-480 V AC |
| Rated power (code H22K) | 22 kW / 30 HP, high overload |
