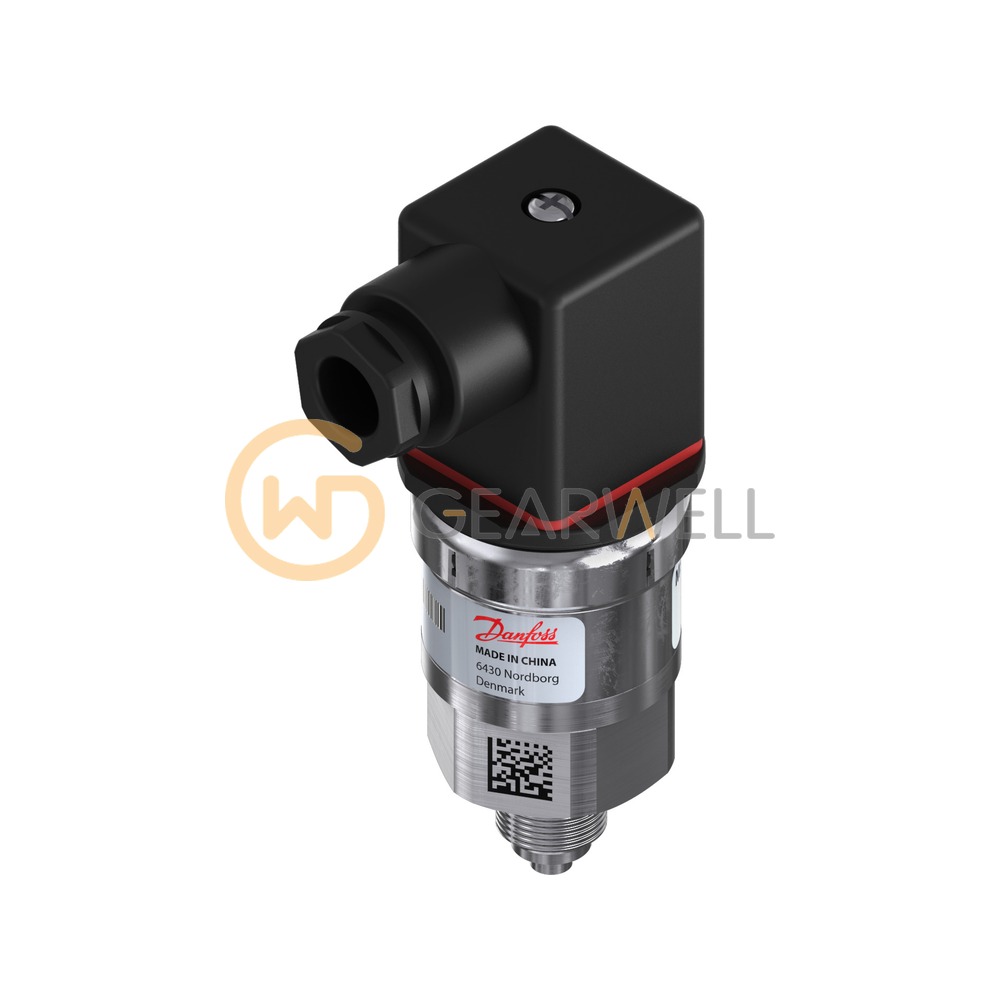

Danfoss 060G6358 MBS 3000 Pressure Transmitter
- Brand
- DANFOSS
- Model
- 060G6358
- GEARWELL SKU
- GWP-000006964
- Category
- Pressure, Flow & Temperature
Key specifications
- Product type
- MBS 3000
- Output signal
- 4 to 20 mA
- Pressure range
- -0.5 to 0.5 bar
- Supply voltage
- 9 to 32 V DC
- Accuracy (typical)
- ±0.5 % FS
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 060G6358 is a Danfoss MBS 3000 pressure transmitter (specification key MBS 3000-CU11-A1AB04-0) with a compound range of -0.5 to 0.5 bar (-7.25 to 7.25 psi), gauge reference. It gives a 4-20 mA output from a 9-32 V DC supply, with typical accuracy of 0.5 % of full scale and overload pressure up to 6 bar. The pressure connection is G 1/4 male (EN 837) and the electrical connection is an EN 175301-803-A angle plug with Pg 9 entry, rated IP65. Medium and ambient temperature range is -40 to 85 °C; approvals include CE, UL Recognized and ATEX Ex ec IIA T4 Gc.
Technical reference
| Product name | Danfoss 060G6358 MBS 3000 Pressure Transmitter |
|---|---|
| Brand | DANFOSS |
| Model | 060G6358 |
| Category | Pressure, Flow & Temperature |
| Product type | MBS 3000 |
| Output signal | 4 to 20 mA |
| Pressure range | -0.5 to 0.5 bar |
| Supply voltage | 9 to 32 V DC |
| Accuracy (typical) | ±0.5 % FS |
| Enclosure rating | IP65 |
| Pressure connection | G 1/4 (EN 837) |
| Electrical connection | EN 175301-803-A, Pg 9 |
