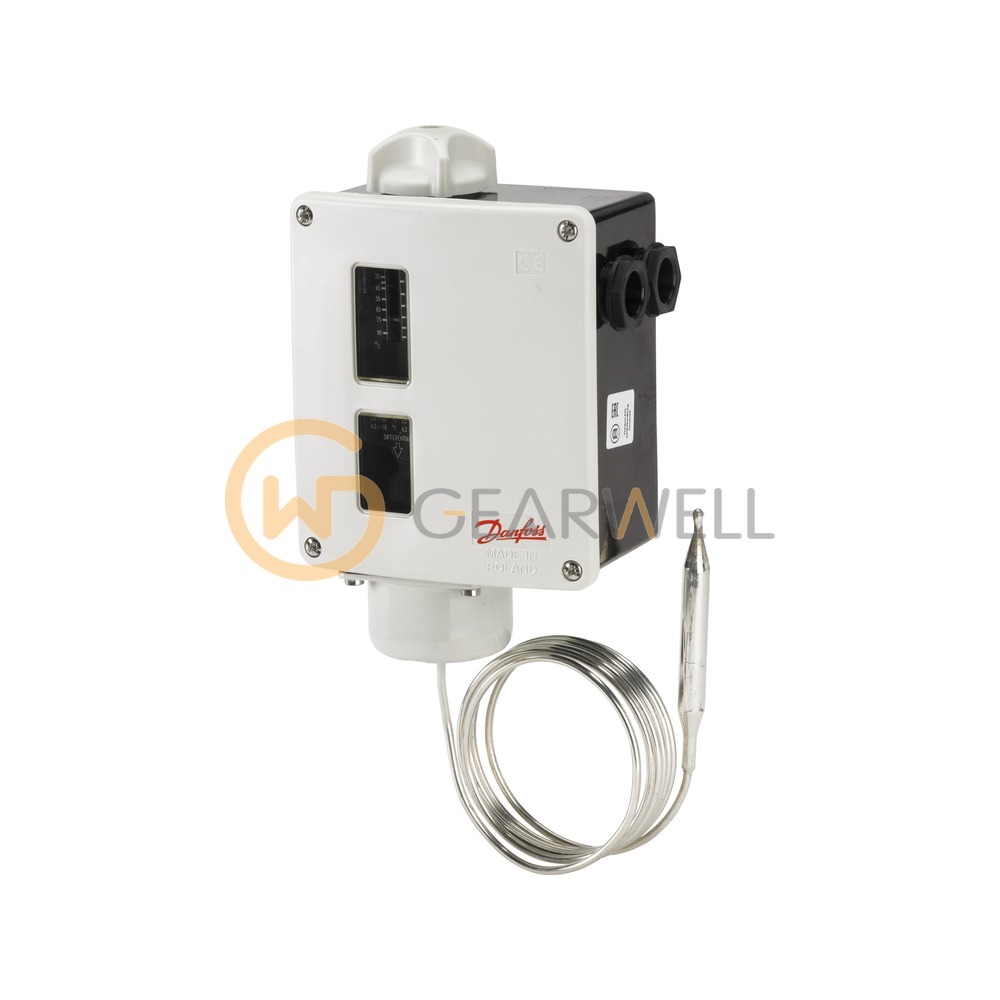

DANFOSS 017-5003 RT101 Remote Bulb Thermostat
- Brand
- DANFOSS
- Model
- 017-5003
- GEARWELL SKU
- GWP-000017011
- Category
- Pressure, Flow & Temperature
Key specifications
- Type
- RT101
- Sensor type
- Remote bulb
- Contact rating
- AC1=10 A, 400 V; AC15=3 A, 400 V; DC13=12 W, 220 V
- Reset function
- Auto
- Contact function
- SPDT
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | DANFOSS 017-5003 RT101 Remote Bulb Thermostat |
|---|---|
| Brand | DANFOSS |
| Model | 017-5003 |
| Category | Pressure, Flow & Temperature |
| Type | RT101 |
| Sensor type | Remote bulb |
| Contact rating | AC1=10 A, 400 V; AC15=3 A, 400 V; DC13=12 W, 220 V |
| Reset function | Auto |
| Contact function | SPDT |
| Enclosure rating | IP66 |
| Differential type | Adjustable |
| Temperature range | 25 - 90 °C |
| Danfoss code number | 017-500366 (Danfoss store search for 017-5003 resolves to this code) |
| Capillary tube length | 2000 mm |
