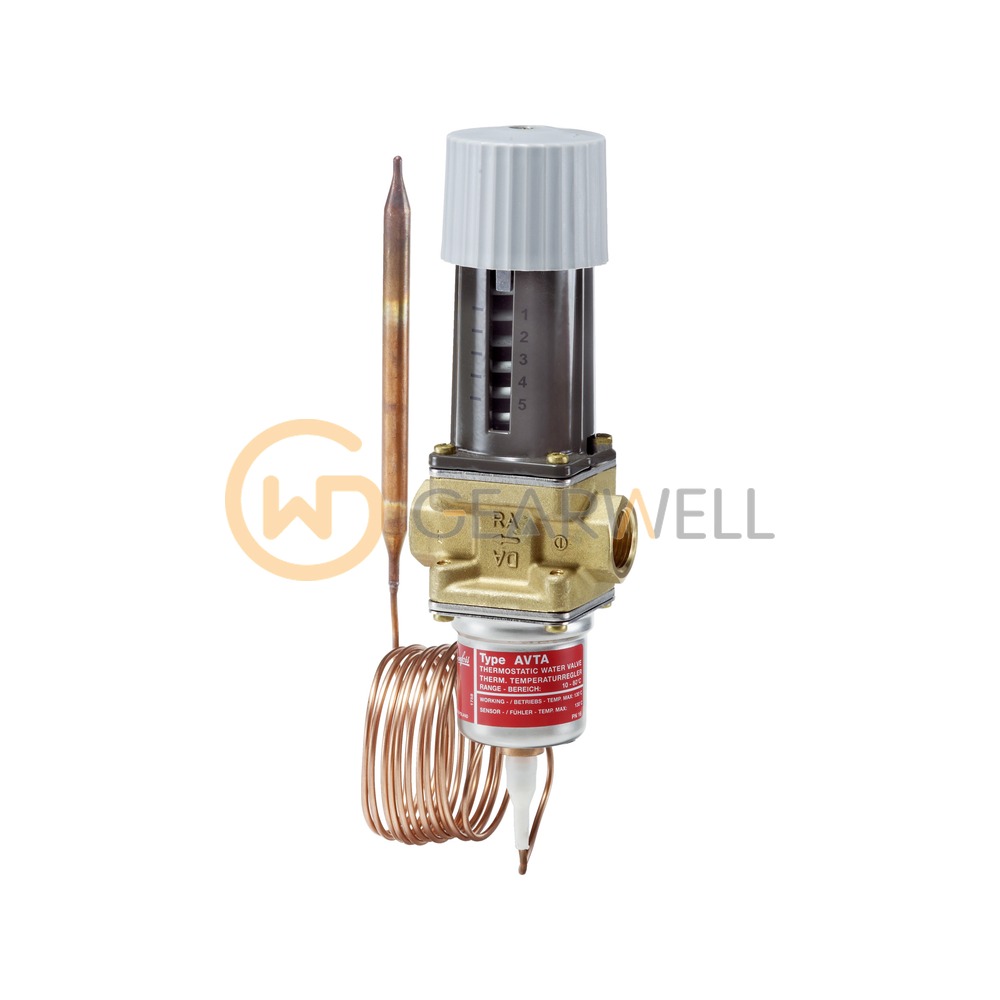

Danfoss 003N0108 AVTA 20 Thermostatic Water Valve
- Brand
- DANFOSS
- Model
- 003N0108
- GEARWELL SKU
- GWP-000011585
- Category
- Valves & Manifolds
Key specifications
- Type
- AVTA 20
- Kv value
- 3.4 m³/h
- Connection
- G 3/4 (ISO 228-1), internal
- Charge type
- Adsorption
- Body material
- Brass
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Danfoss 003N0108 is a Danfoss AVTA 20 thermostatically operated water valve with a brass body and G 3/4 internal (ISO 228-1) connections, which opens on rising sensor temperature. It uses an adsorption charge, a 9.5 x 150 mm sensor and a 2300 mm capillary tube; the temperature range is 10 to 80 °C. The 20 mm orifice gives a Kv value of 3.4 m³/h, with a maximum working pressure of 16 bar and a maximum differential pressure of 10 bar. It handles neutral media from -25 to 130 °C, and net weight is 1.3 kg.
Technical reference
| Product name | Danfoss 003N0108 AVTA 20 Thermostatic Water Valve |
|---|---|
| Brand | DANFOSS |
| Model | 003N0108 |
| Category | Valves & Manifolds |
| Type | AVTA 20 |
| Kv value | 3.4 m³/h |
| Connection | G 3/4 (ISO 228-1), internal |
| Charge type | Adsorption |
| Body material | Brass |
| Temperature range | 10-80 °C |
| Max. working pressure | 16 bar |
| Capillary tube length | 2300 mm |
| Opening configuration | Opens on rising sensor temperature |
| Medium temperature range | -25 to 130 °C |
