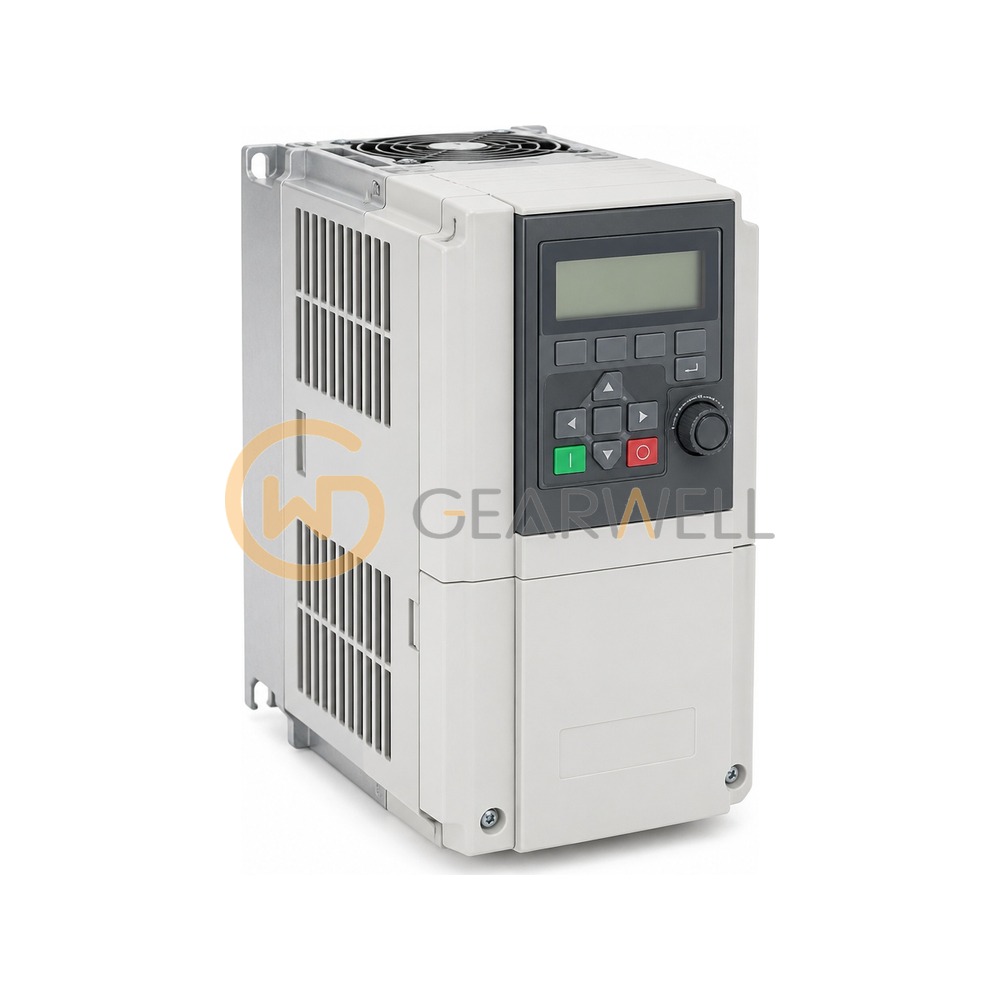

Control Techniques UNI1401-R Unidrive Size 1 AC Drive 400V 0.75kW
- Brand
- Control Techniques
- Model
- UNI1401-R
- GEARWELL SKU
- GWP-000033689
- Category
- Variable Frequency Drives
Key specifications
- Series
- Unidrive (classic)
- Frame size
- 1
- Code suffix "-R"
- as collected; not listed in the official model-number table
- Nominal rating
- 0.75 / 1 kW / hp
- Supply voltage
- 380-480 V +/-10% three-phase V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Control Techniques UNI1401-R Unidrive Size 1 AC Drive 400V 0.75kW |
|---|---|
| Brand | Control Techniques |
| Model | UNI1401-R |
| Category | Variable Frequency Drives |
| Series | Unidrive (classic) |
| Frame size | 1 |
| Code suffix "-R" | as collected; not listed in the official model-number table |
| Nominal rating | 0.75 / 1 kW / hp |
| Supply voltage | 380-480 V +/-10% three-phase V |
| Operating modes | Open loop / closed loop vector / servo / regen |
| Typical input current | 3.0 A |
| Output current (40 C, 3 kHz) | 2.1 A |
