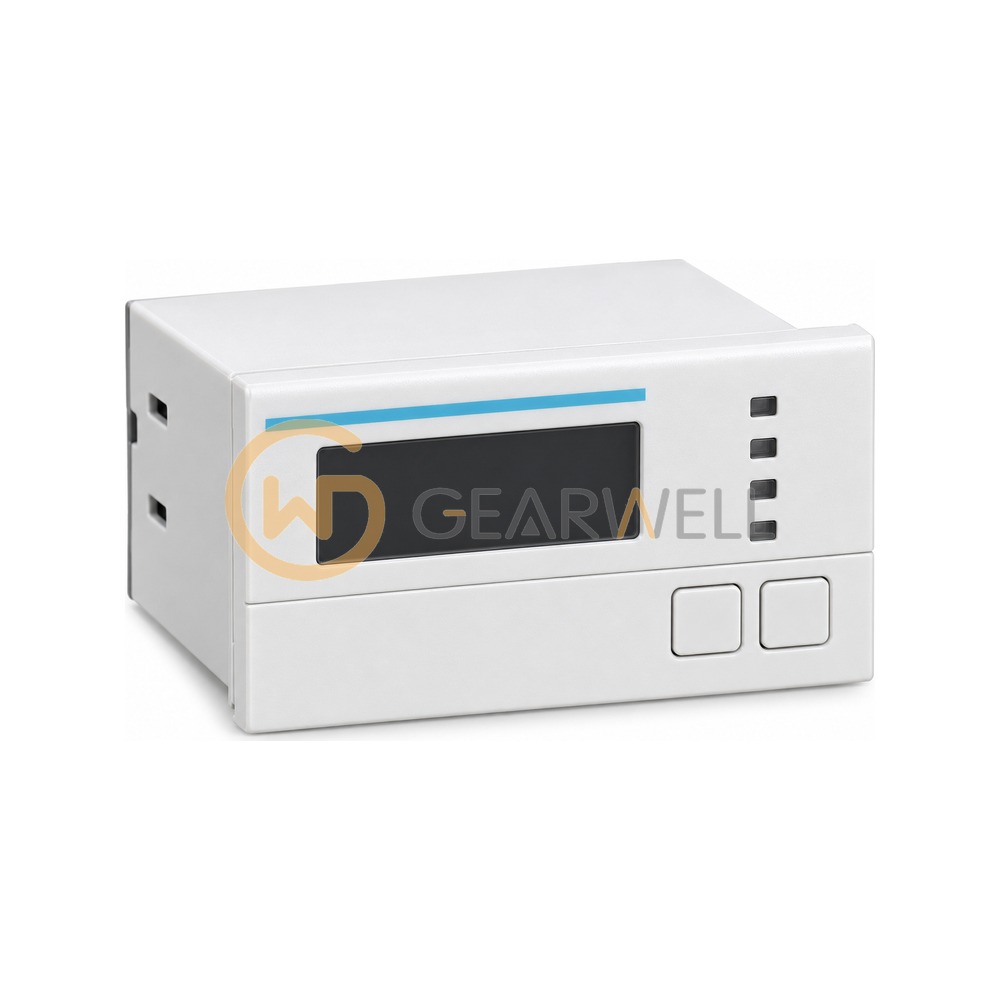

CHINT NJBK7-800M/40/AC380V 8A~40A NJBK7 Motor Protection Relay

Key specifications

Material number: 710220200000030
Type designation: NJBK7-800M/40
Enclosure protection: IP20
Protection functions: Overload, blocking, phase loss, three-phase unbalance, undercurrent, grounding, PTC temperature, communication failure
Optional function code: M

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	CHINT NJBK7-800M/40/AC380V 8A~40A NJBK7 Motor Protection Relay
Brand	CHINT
Model	NJBK7-800M/40/AC380V 8A~40A
Category	Circuit Protection
Material number	710220200000030
Type designation	NJBK7-800M/40
Enclosure protection	IP20
Protection functions	Overload, blocking, phase loss, three-phase unbalance, undercurrent, grounding, PTC temperature, communication failure
Optional function code	M
Rated insulation voltage	690 V AC
Rated current specification	8-40 A
Rated control supply voltage	AC 380 V
Rated impulse withstand voltage Uimp	4 kV
