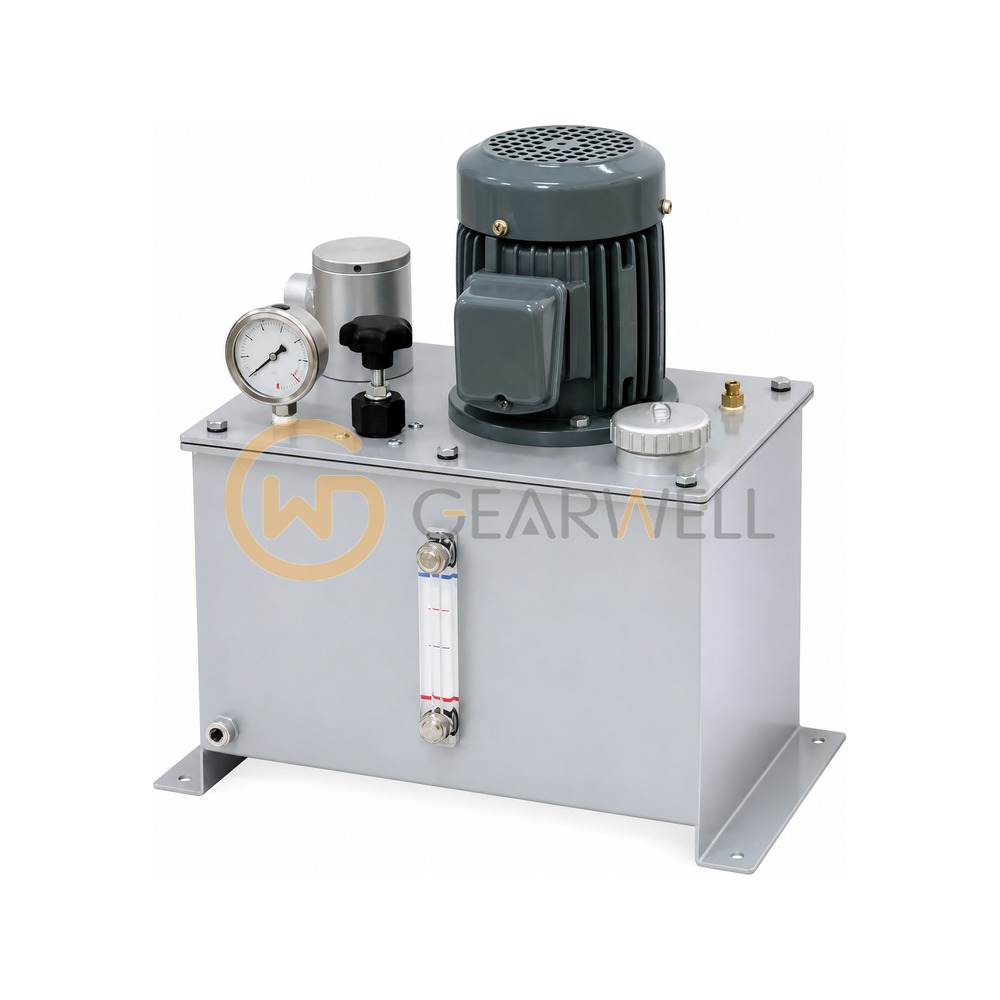

CHENYING CLSA-36 Circulating Type Oil Electric Lubricator 36L (Iron)

Key specifications

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

Product name	CHENYING CLSA-36 Circulating Type Oil Electric Lubricator 36L (Iron)
Brand	CHENYING
Model	CLSA-36
Category	Lubrication Parts
N.W. (kg)	38.8
Series	CLSA Circulating Type Oil Electric Lubricator
Voltage	1Ø110V, 1Ø220V, Three Phase
Width (mm)	353
Height (mm)	606
Length (mm)	410
Motor Power	1/4HP
Cyclic Inlet	PT1/2, PT3/4
Float Switch	NC Contact (NO Contact on request)
Discharge Bore	Ø4 , Ø6
Voltage options	1φ110V / 1φ220V / 3φ220/380V(Connect 220V for motor testing) / 3φ220/380V(Connect 380V for motor testing) / 3φ220/440V(Connect 220V for motor testing) / 3φ220/440V(Connect 440V for motor testing) / 3φ208/415V(Connect 208V for motor testing) / 3φ208/415V(Connect 415V for motor testing) / 3φ230/460V(Connect 230V for motor testing) / 3φ230/460V(Connect 460V for motor testing) / 3φ240/480V(Connect 240V for motor testing) / 3φ240/480V(Connect 480V for motor testing) / 3φ220V / 3φ380V / Special Voltage(Please specify the voltage you need in remarks.) (specify on order)
Suitable Viscosity	Oil, 32-68 cSt@40℃
Cyclic Inlet options	PT1/2 / PT3/4 (specify on order)
Fixed Hole Distance (mm)	300x215
Max. Operating Pressure	5kgf/c㎡
Tank Capacity (Material)	36L (Iron)
Rotary Oil Pump options	CYP-10A / CYP-11A / CYP-12A / CYP-13A (specify on order)
Optional special requests	NO Contact Float Switch
Motor Power (Number of Poles)	1/4HP (4P)
Discharge Bore (PT1/4) options	φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order)
