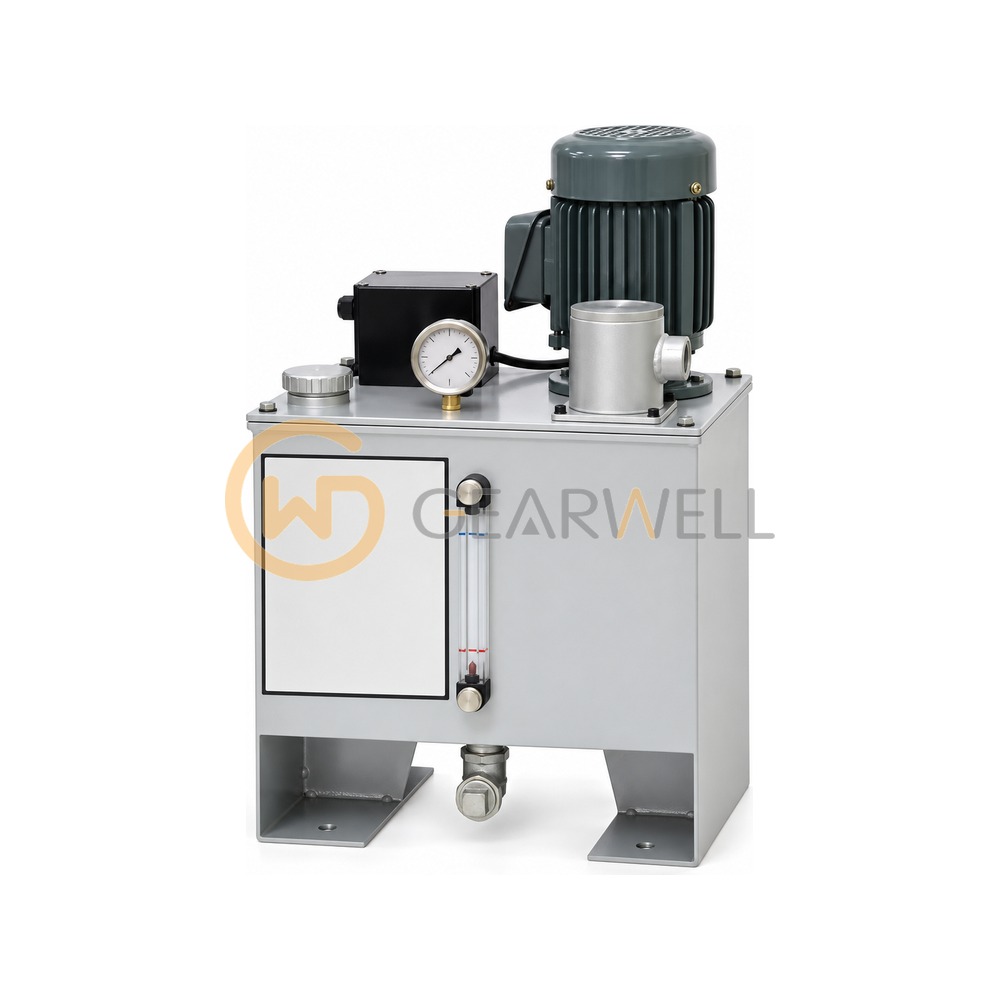

CHENYING CLS-10 Circulating Type Oil Electric Lubricator 1.5 L/min

CHENYING CLS-10 Circulating Type Oil Electric Lubricator 1.5 L/min

Model
CLS-10
GEARWELL SKU
GWP-000012549
Category
Lubrication Parts

Key specifications

Series
CLS Circulating Type Oil Electric Lubricator
Voltage
1Ø110V, 1Ø220V, Three Phase
Cyclic Inlet
PT3/4, PT1
Float Switch
NC Contact (NO Contact on request)
Discharge Bore
Ø4 , Ø6
Request a QuoteWhatsApp

This opens your email client. Send the email to submit your inquiry; this website does not store your message.

← Back to products

Technical reference

Product nameCHENYING CLS-10 Circulating Type Oil Electric Lubricator 1.5 L/min
BrandCHENYING
ModelCLS-10
CategoryLubrication Parts
SeriesCLS Circulating Type Oil Electric Lubricator
Voltage1Ø110V, 1Ø220V, Three Phase
Cyclic InletPT3/4, PT1
Float SwitchNC Contact (NO Contact on request)
Discharge BoreØ4 , Ø6
Pressure SwitchNC Contact (NO Contact on request)
Voltage options1φ110V / 1φ220V / 3φ220/380V(Connect 220V for motor testing) / 3φ220/380V(Connect 380V for motor testing) / 3φ220/440V(Connect 220V for motor testing) / 3φ220/440V(Connect 440V for motor testing) / 3φ208/415V(Connect 208V for motor testing) / 3φ208/415V(Connect 415V for motor testing) / 3φ230/460V(Connect 230V for motor testing) / 3φ230/460V(Connect 460V for motor testing) / 3φ240/480V(Connect 240V for motor testing) / 3φ240/480V(Connect 480V for motor testing) / 3φ220V / 3φ380V / Special Voltage(Please specify the voltage you need in remarks.) (specify on order)
Discharge Volume1.5 L/min
Suitable ViscosityOil, 32-100 cSt@40℃
Motor Power options1/2HP / 1HP (specify on order)
Cyclic Inlet optionsPT3/4 / PT1 (specify on order)
Max. Operating Pressure15kgf/c㎡
Optional special requestsNO Contact Pressure Switch / NO Contact Float Switch
Motor Power (Number of Poles)1/2HP, 1HP (4P)
Discharge Bore (PT1/4) optionsφ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order)
Tank Capacity (Material) options30L (Iron) / 36L (Iron) / 40L (Iron) / 60L (Iron) / 64L (Iron) / 77L (Iron) / 100L (Iron) / 130L (Iron) / 150L (Iron) / 204L (Iron) (specify on order)
