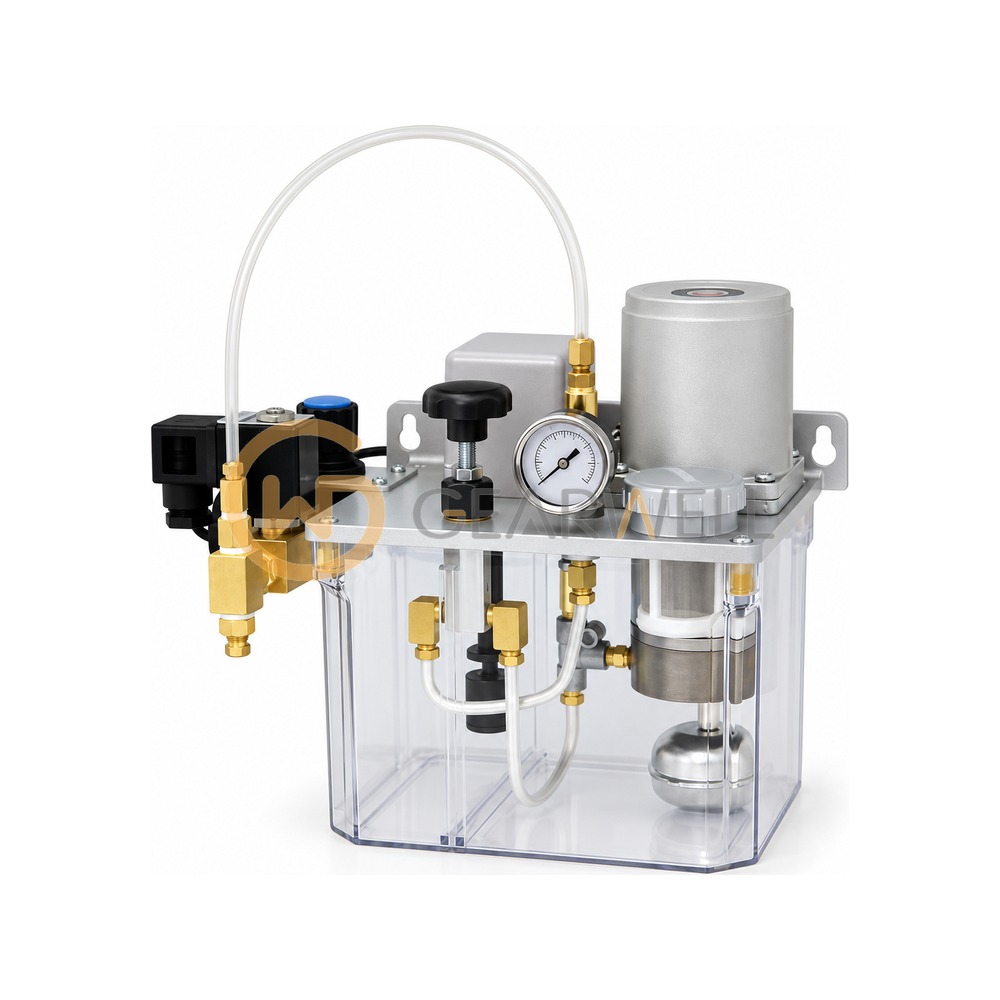

CHENYING CEN24-04 Horizontal Oil-Mist Type Electric Lubricator
- Brand
- CHENYING
- Model
- CEN24-04
- GEARWELL SKU
- GWP-000011774
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible
- Ampere
- 0.6A / 0.3A
- N.W. (kg)
- 6.00
- Series
- CEN24 Horizontal Oil-Mist Type Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CEN24-04 Horizontal Oil-Mist Type Electric Lubricator |
|---|---|
| Brand | CHENYING |
| Model | CEN24-04 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible |
| Ampere | 0.6A / 0.3A |
| N.W. (kg) | 6.00 |
| Series | CEN24 Horizontal Oil-Mist Type Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 185 |
| Height (mm) | 308 |
| Length (mm) | 353 |
| Motor Power | 25W |
| Float Switch | NC Contact (NO Contact on request) |
| Discharge Bore | Ø4, Ø6 |
| Voltage options | 110V / 220V (specify on order) |
| Single-Phase Power | M = Motor WS = Float Switch |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 200cc/min |
| Discharge Bore options | φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 250 |
| Max. Operating Pressure | 15kgf/c㎡ |
| Tank Capacity (Material) | 4L (Resin) |
| Optional special requests | NO Contact Float Switch |
