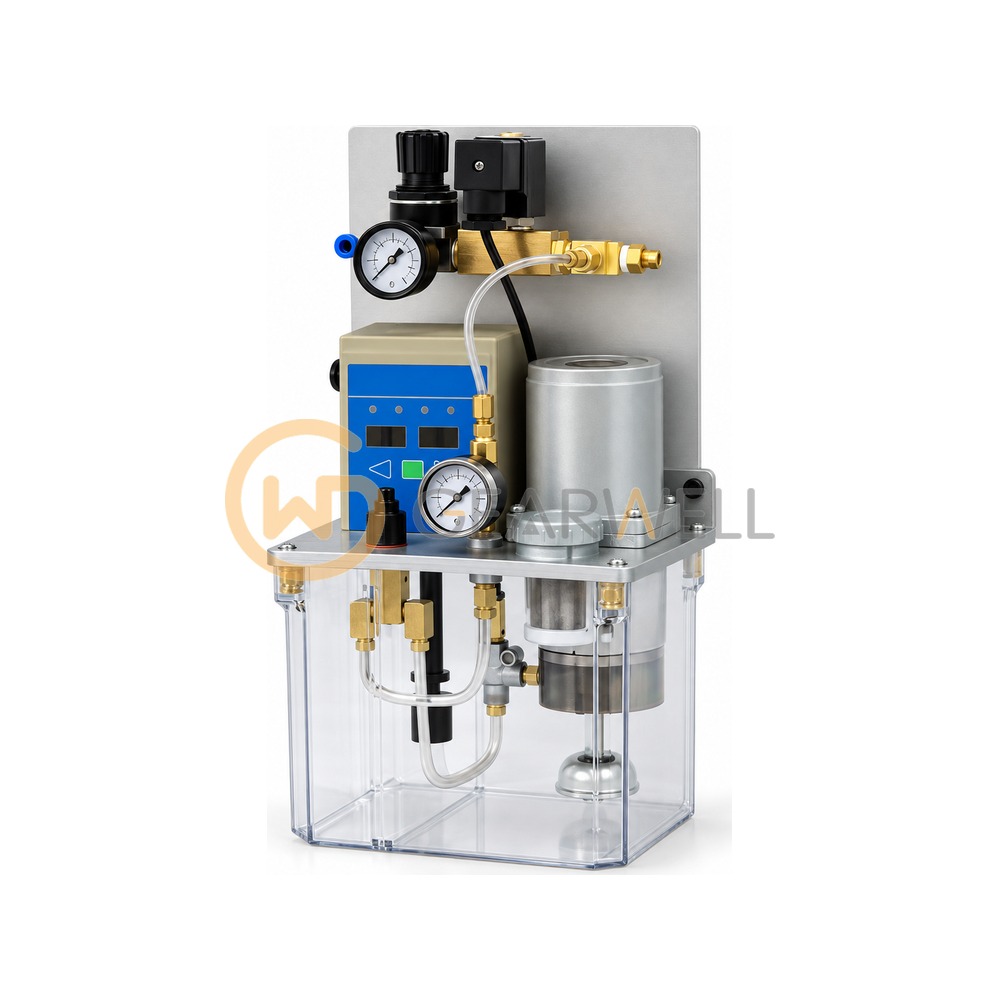

CHENYING CEN23-04 Vertical Oil-Mist Type Electric Lubricator
- Brand
- CHENYING
- Model
- CEN23-04
- GEARWELL SKU
- GWP-000011772
- Category
- Lubrication Parts
Key specifications
- Hertz
- 50/60Hz Compatible
- Ampere
- 0.6A / 0.3A
- N.W. (kg)
- 7.10
- Series
- CEN23 Vertical Oil-Mist Type Electric Lubricator
- Voltage
- 110V / 220V
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CHENYING CEN23-04 Vertical Oil-Mist Type Electric Lubricator |
|---|---|
| Brand | CHENYING |
| Model | CEN23-04 |
| Category | Lubrication Parts |
| Hertz | 50/60Hz Compatible |
| Ampere | 0.6A / 0.3A |
| N.W. (kg) | 7.10 |
| Series | CEN23 Vertical Oil-Mist Type Electric Lubricator |
| Voltage | 110V / 220V |
| Width (mm) | 174 |
| Height (mm) | 377 |
| Length (mm) | 277 |
| Motor Power | 25W |
| Float Switch | NC Contact |
| Interval Time | 1-999 sec, 1-999 min |
| Discharge Bore | Ø4, Ø6 |
| Operation Time | 1-999 sec |
| Voltage options | 110V / 220V (specify on order) |
| ACT x INT options | sec x sec / sec x min (specify on order) |
| Suitable Viscosity | Oil, 32-68 cSt@40oC |
| Max. Discharge Volume | 200cc/min |
| Discharge Bore options | φ4 W/Pressure Gauge / φ6 W/Pressure Gauge (specify on order) |
| Fixed Hole Distance (mm) | 250 |
| Max. Operating Pressure | 15kgf/c㎡ |
| Tank Capacity (Material) | 4L (Resin) |
| Optional special requests | Turn-on-feeding Operation Mode |
