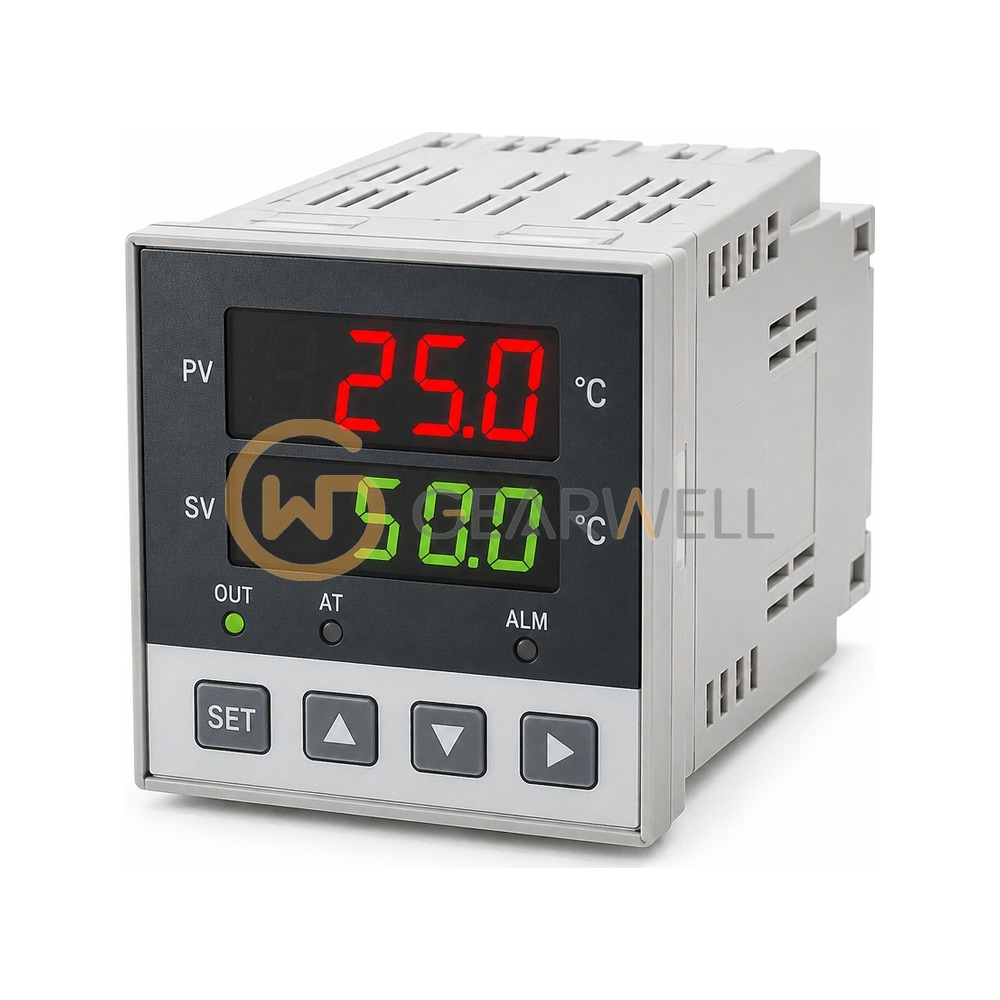

CAL 95001PA400 9500P 1/16 DIN Programmable Temperature Controller
- Brand
- CAL
- Model
- 95001PA400
- GEARWELL SKU
- GWP-000033606
- Category
- Pressure, Flow & Temperature
Key specifications
- Format
- 48 x 48 mm (1/16 DIN)
- Series
- CAL 9500P programmable profiling temperature & process controller
- Evidence
- CAL Controls 9500P brochure SL000272 (hosted at docs.rs-online.com); West Control Solutions catalogue BR-PC-2-US-1808 (west-cs.com asset)
- Brand note
- CAL (CAL Controls) is now a brand of WEST Control Solutions; brand kept as printed on the unit
- Order code
- 95001PA400
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | CAL 95001PA400 9500P 1/16 DIN Programmable Temperature Controller |
|---|---|
| Brand | CAL |
| Model | 95001PA400 |
| Category | Pressure, Flow & Temperature |
| Format | 48 x 48 mm (1/16 DIN) |
| Series | CAL 9500P programmable profiling temperature & process controller |
| Evidence | CAL Controls 9500P brochure SL000272 (hosted at docs.rs-online.com); West Control Solutions catalogue BR-PC-2-US-1808 (west-cs.com asset) |
| Brand note | CAL (CAL Controls) is now a brand of WEST Control Solutions; brand kept as printed on the unit |
| Order code | 95001PA400 |
| Programmer | up to 31 programs, 126 segments total |
| Protection | NEMA 4X, IP66 (front) |
| Input (code A) | Sensor (thermocouple or PT100 RTD) |
| Supply voltage | 100-240 V AC, 50-60 Hz |
| Output 3 (code 1) | Relay, Form A/SPST 2 A/250 V AC resistive |
| Outputs 1 & 2 (code 00) | SSd / relay |
| Communications (code 4) | RS485 Modbus RTU |
