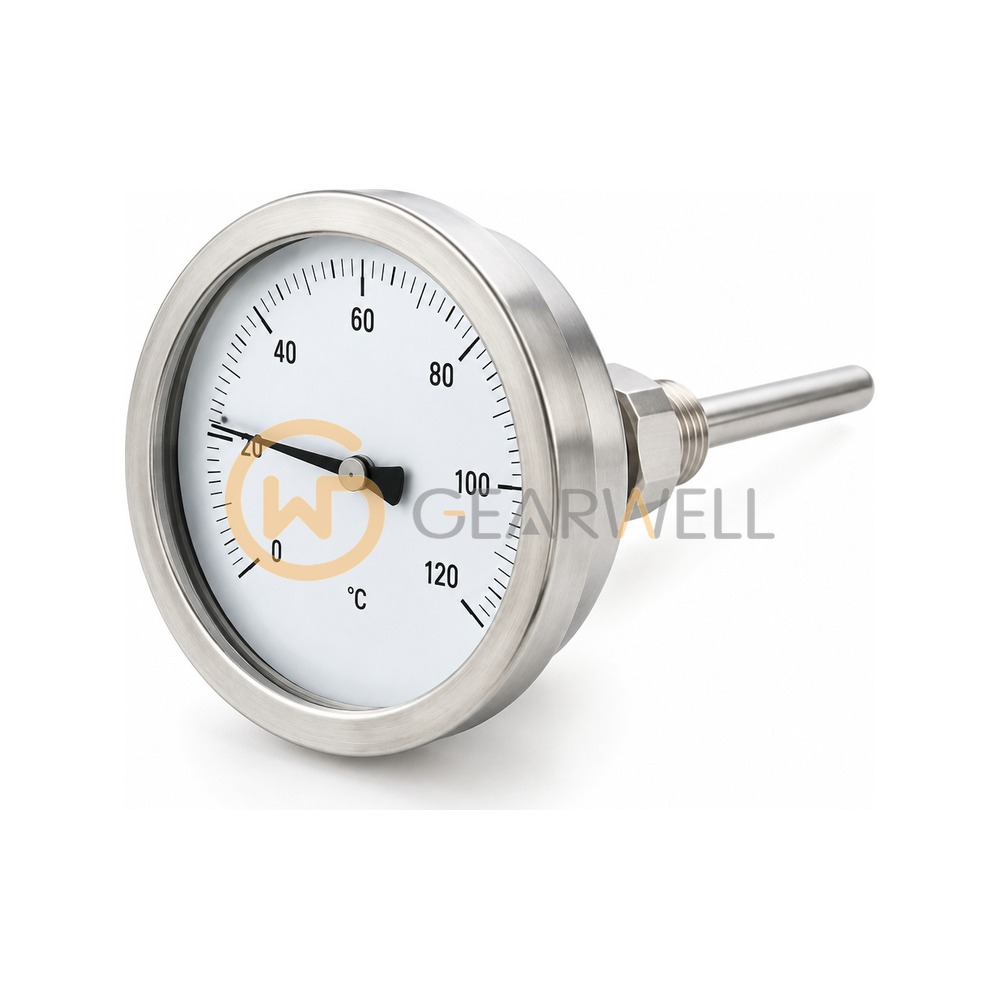

BOURDON TB100-211.154.13T TB 100 Bimetal Thermometer
- Brand
- BOURDON
- Model
- TB100-211.154.13T
- GEARWELL SKU
- GWP-000033600
- Category
- Pressure, Flow & Temperature
Key specifications
- Series
- TB 100
- Nominal size
- 100 mm
- Case material
- Stainless steel 1.4301 / AISI 304
- Accuracy (EN 13190)
- Class 1 up to 250 °C; class 2 above (class 1 on request)
- Immersion tube material
- Brass / stainless steel 1.4571 (AISI 316Ti)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BOURDON TB100-211.154.13T TB 100 Bimetal Thermometer |
|---|---|
| Brand | BOURDON |
| Model | TB100-211.154.13T |
| Category | Pressure, Flow & Temperature |
| Series | TB 100 |
| Nominal size | 100 mm |
| Case material | Stainless steel 1.4301 / AISI 304 |
| Accuracy (EN 13190) | Class 1 up to 250 °C; class 2 above (class 1 on request) |
| Immersion tube material | Brass / stainless steel 1.4571 (AISI 316Ti) |
| Temperature range (series) | -30 … +500 °C |
| Code suffix / open positions | "TB100-211.154.13T" as collected; positions not verified against the official ordering key (specify on order) |
| Protection rating (EN 60529) | IP50 |
