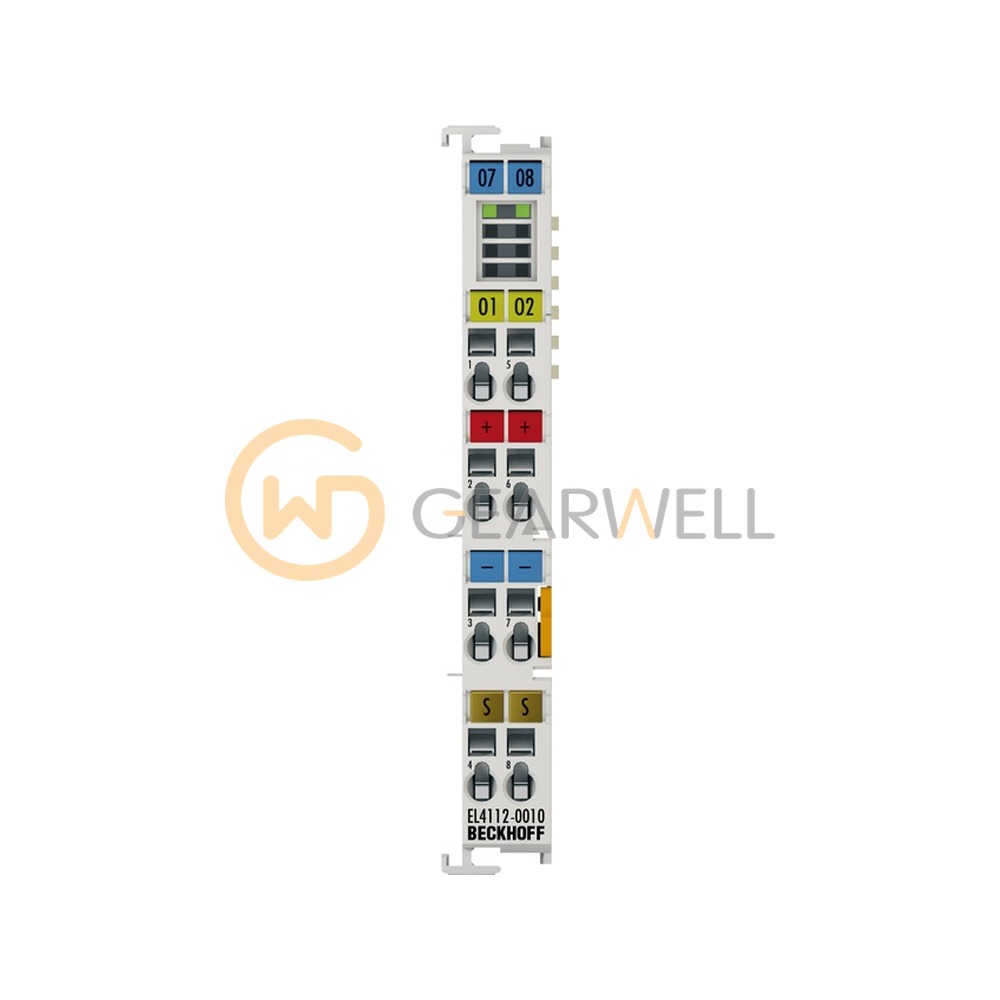

BECKHOFF EL4112-0010 EtherCAT 2-Channel Analog Output Terminal
- Brand
- BECKHOFF
- Model
- EL4112-0010
- GEARWELL SKU
- GWP-000008088
- Category
- PLCs & I/O
Key specifications
- Load
- < 500 Ω (short-circuit proof)
- Resolution
- 16 bit (incl. sign)
- Output error
- < ±0.3% (relative to end value)
- Power supply
- 24 V DC via power contacts
- Signal current
- -10…+10 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL4112-0010 is a 2-channel analog output terminal for EtherCAT for -10 to +10 mA signals, with 16-bit resolution and an output error below ±0.3 % of the end value. It updates at up to 15 ksps, and the load must be below 500 Ω. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL4112-0010 EtherCAT 2-Channel Analog Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL4112-0010 |
| Category | PLCs & I/O |
| Load | < 500 Ω (short-circuit proof) |
| Resolution | 16 bit (incl. sign) |
| Output error | < ±0.3% (relative to end value) |
| Power supply | 24 V DC via power contacts |
| Signal current | -10…+10 mA |
| Number of outputs | 2 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Distributed clock accuracy | << 1 µs |
