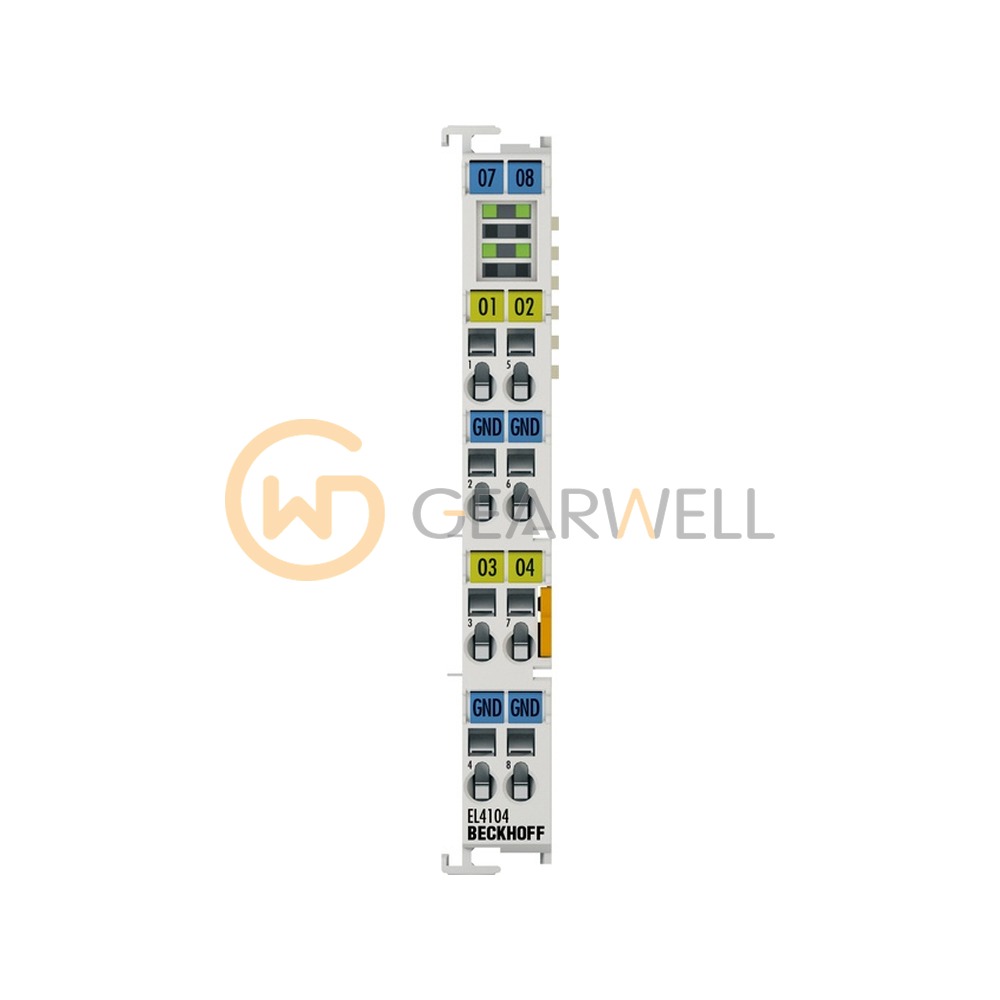

BECKHOFF EL4104 EtherCAT 4-Channel Analog Output Terminal
- Brand
- BECKHOFF
- Model
- EL4104
- GEARWELL SKU
- GWP-000008086
- Category
- PLCs & I/O
Key specifications
- Load
- > 5 kΩ (short-circuit proof)
- Resolution
- 16 bit (incl. sign)
- Output rate
- max. 4 ksps
- Output error
- < 0.1% (relative to end value)
- Power supply
- via the E-bus
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL4104 is a 4-channel analog output terminal for EtherCAT for 0 to 10 V signals, with 16-bit resolution and an output error below 0.1 % of the end value. It updates at up to 4 ksps and is powered via the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL4104 EtherCAT 4-Channel Analog Output Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL4104 |
| Category | PLCs & I/O |
| Load | > 5 kΩ (short-circuit proof) |
| Resolution | 16 bit (incl. sign) |
| Output rate | max. 4 ksps |
| Output error | < 0.1% (relative to end value) |
| Power supply | via the E-bus |
| Number of outputs | 4 |
| Electrical isolation | 500 V (E-bus/signal voltage) |
| Distributed clock accuracy | << 1 µs |
