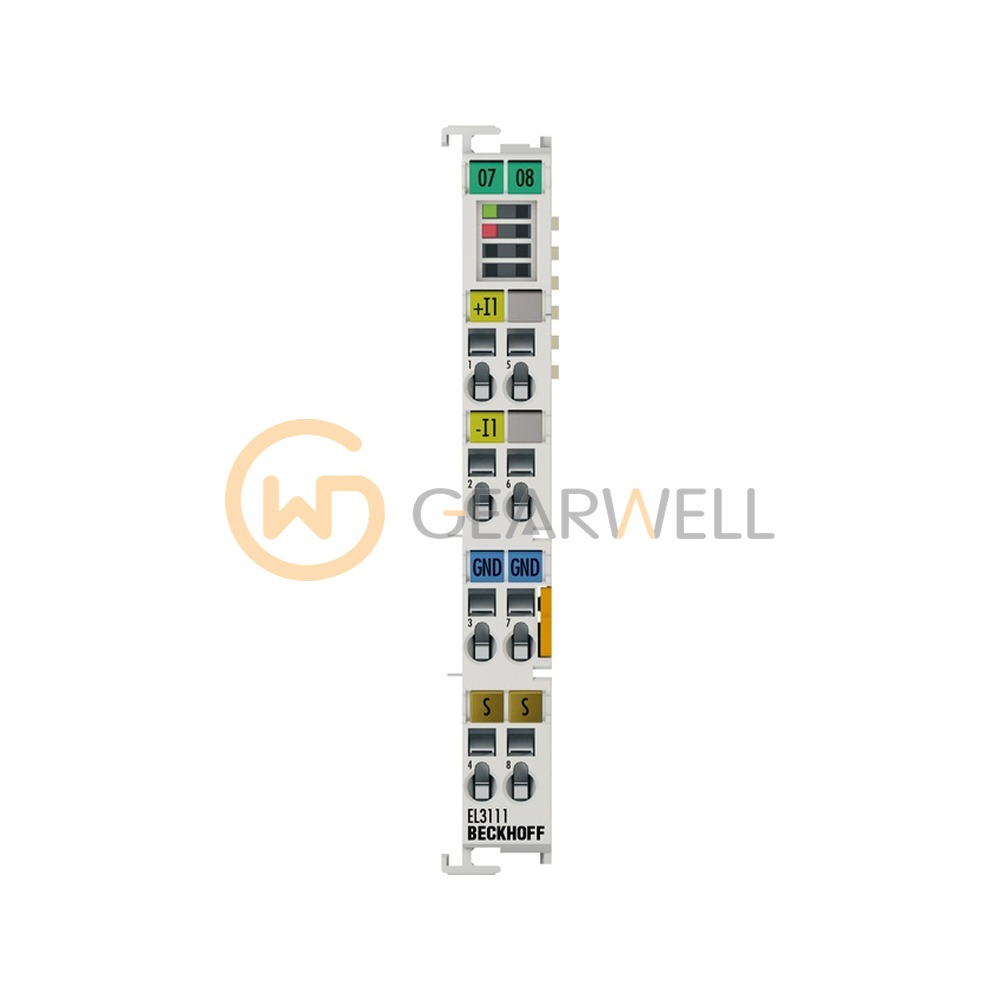

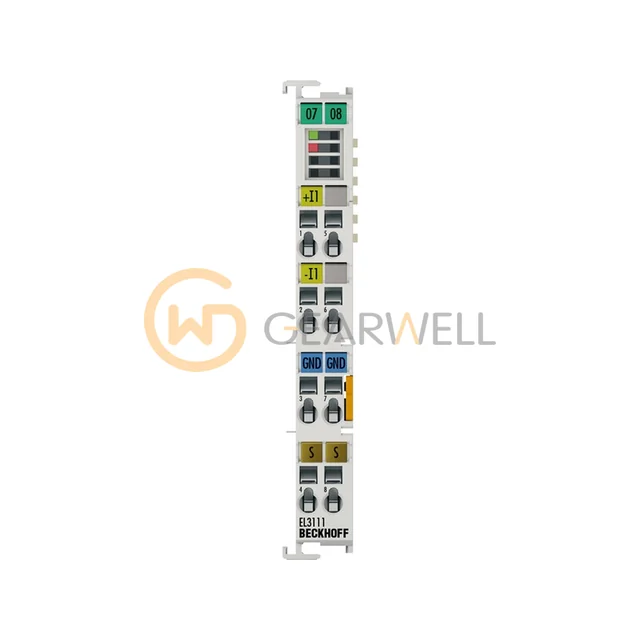

BECKHOFF EL3111 EtherCAT 1-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3111
- GEARWELL SKU
- GWP-000008000
- Category
- PLCs & I/O
Key specifications
- Power supply
- via the E-bus
- Signal current
- 0…20 mA
- Number of inputs
- 1 (differential)
- Internal resistance
- typ. 85 Ω + diode voltage
- Input signal bandwidth
- see input filter
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3111 is a 1-channel analog input terminal for EtherCAT for 0 to 20 mA differential signals, with 16-bit resolution and an error below ±0.3 % of full scale. Conversion takes about 40 µs, distributed clocks are supported, and FIR/IIR filters and limit value monitoring can be activated. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3111 EtherCAT 1-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3111 |
| Category | PLCs & I/O |
| Power supply | via the E-bus |
| Signal current | 0…20 mA |
| Number of inputs | 1 (differential) |
| Internal resistance | typ. 85 Ω + diode voltage |
| Input signal bandwidth | see input filter |
| Common mode voltage U CM | max. 10 V |
| Distributed clock accuracy | << 1 µs |
| Input filter cut-off frequency | 5 kHz |
