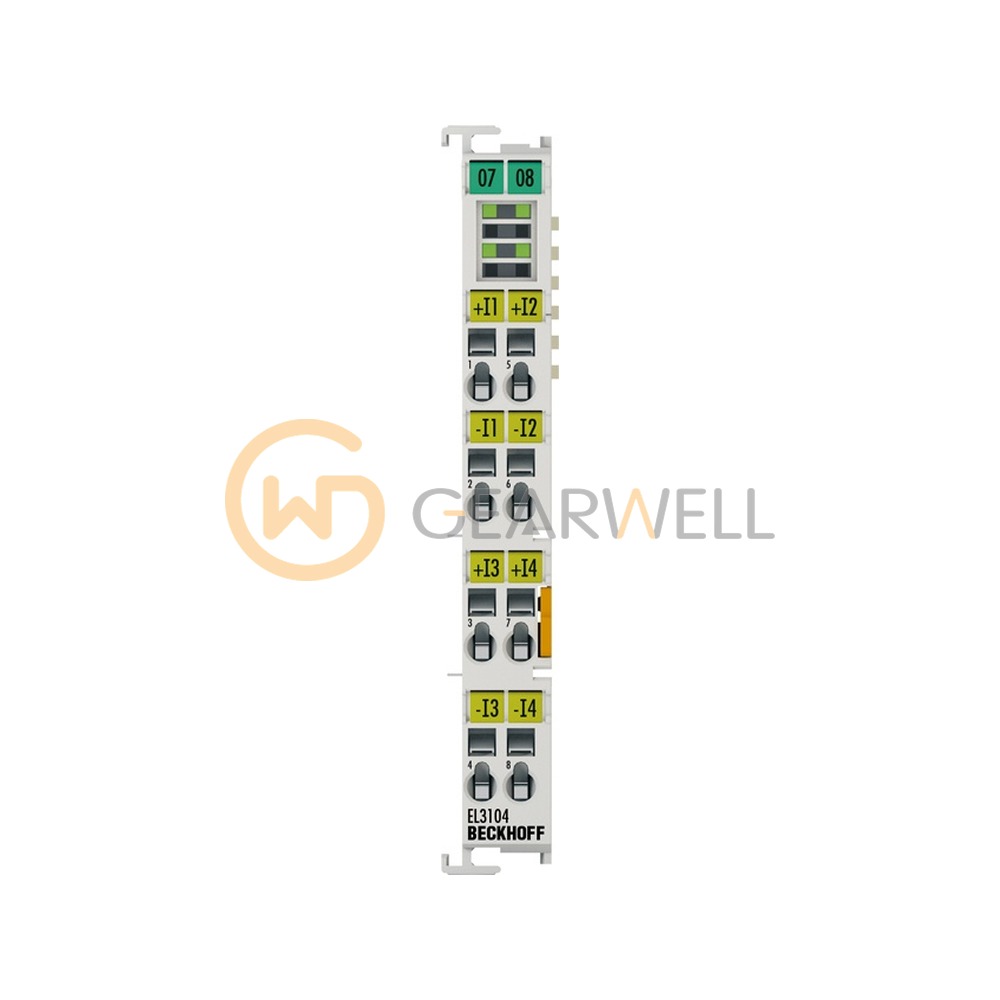

BECKHOFF EL3104 EtherCAT 4-Channel Analog Input Terminal
- Brand
- BECKHOFF
- Model
- EL3104
- GEARWELL SKU
- GWP-000007999
- Category
- PLCs & I/O
Key specifications
- Resolution
- 16 bit (incl. sign)
- Power supply
- via the E-bus
- Conversion time
- ~ 100 µs
- Number of inputs
- 4 (differential)
- Internal resistance
- > 200 kΩ
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL3104 is a 4-channel analog input terminal for EtherCAT for -10 to +10 V differential signals, with 16-bit resolution and an error below ±0.3 % of full scale. Conversion takes about 100 µs, and distributed clocks are supported for synchronised sampling. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL3104 EtherCAT 4-Channel Analog Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL3104 |
| Category | PLCs & I/O |
| Resolution | 16 bit (incl. sign) |
| Power supply | via the E-bus |
| Conversion time | ~ 100 µs |
| Number of inputs | 4 (differential) |
| Internal resistance | > 200 kΩ |
| Common mode voltage U CM | max. 35 V (relative to GND power contact) |
| Distributed clock accuracy | << 1 µs |
| Input filter cut-off frequency | 5 kHz |
