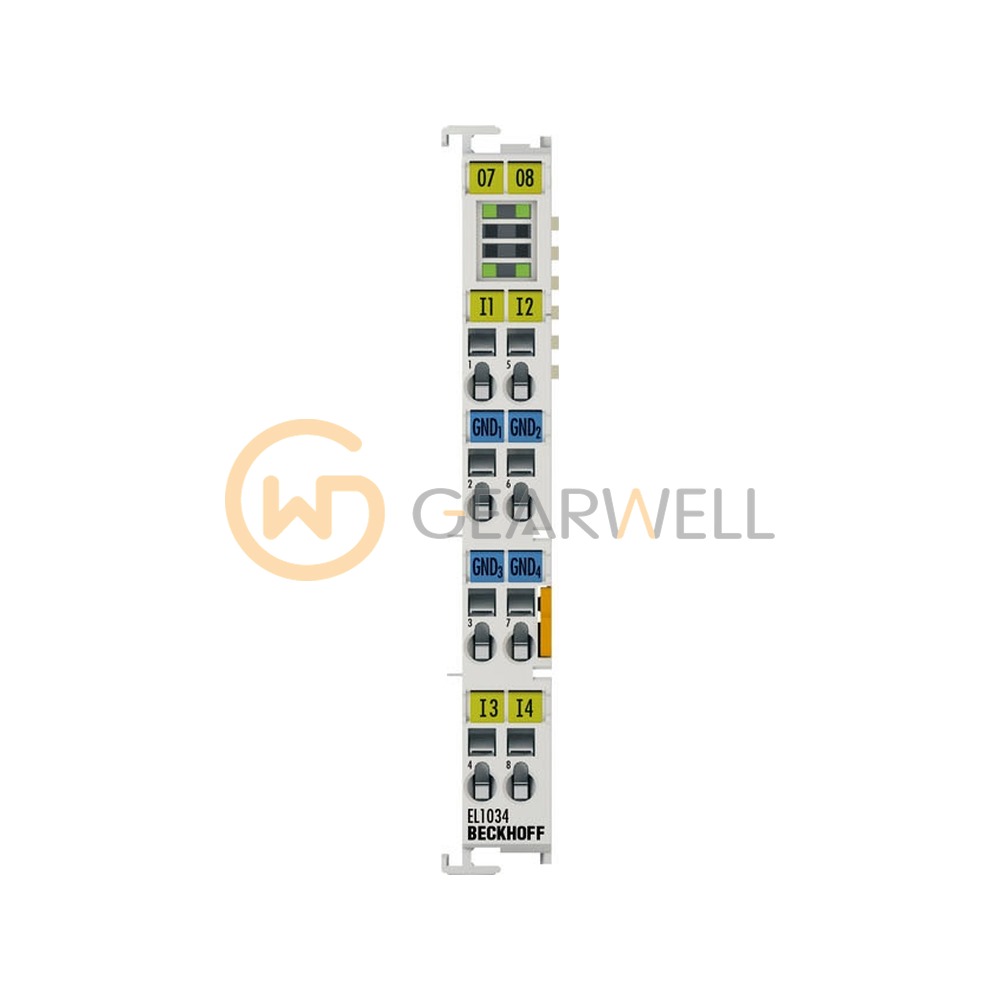

BECKHOFF EL1034 EtherCAT 4-Channel Digital Input Terminal
- Brand
- BECKHOFF
- Model
- EL1034
- GEARWELL SKU
- GWP-000007909
- Category
- PLCs & I/O
Key specifications
- Weight
- approx. 50 g
- Input filter
- typ. 10 µs
- Input current
- typ. 3 mA (EN 61131-2, type 1)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of inputs
- 4
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1034 is a 4-channel digital input terminal for EtherCAT with fast, potential-free 24 V DC inputs: each channel is electrically isolated and the input filter is typically 10 µs. It uses 2-wire connection (EN 61131-2, type 1) and draws typically 90 mA from the E-bus. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1034 EtherCAT 4-Channel Digital Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1034 |
| Category | PLCs & I/O |
| Weight | approx. 50 g |
| Input filter | typ. 10 µs |
| Input current | typ. 3 mA (EN 61131-2, type 1) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 4 |
| Electrical isolation | 500 V (E-bus/field potential) |
| Connection technology | 2-wire |
| Current consumption E-bus | typ. 90 mA |
