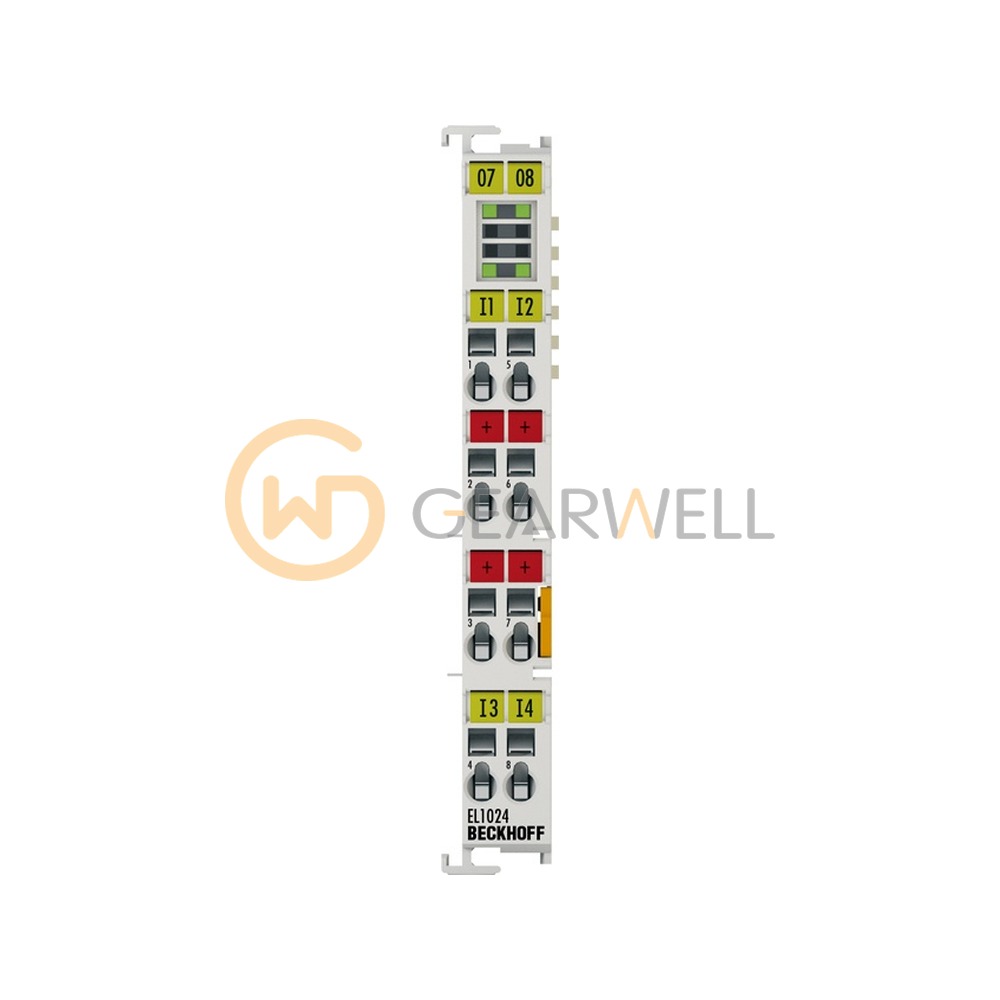

BECKHOFF EL1024 EtherCAT 4-Channel Digital Input Terminal
- Brand
- BECKHOFF
- Model
- EL1024
- GEARWELL SKU
- GWP-000007908
- Category
- PLCs & I/O
Key specifications
- Input filter
- typ. 3 ms
- Input current
- typ. 6 mA (EN 61131-2, type 2)
- Nominal voltage
- 24 V DC (-15%/+20%)
- Number of inputs
- 4
- Electrical isolation
- 500 V (E-bus/field potential)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
Beckhoff EL1024 is a 4-channel digital input terminal for EtherCAT, for 24 V DC type 2 inputs (EN 61131-2) with typically 6 mA input current and a 3 ms filter. It uses 2-wire connection, draws typically 90 mA from the E-bus and is rated for 0 to 55 °C. Check the full order number, including any suffix, on the terminal when requesting a quote.
Technical reference
| Product name | BECKHOFF EL1024 EtherCAT 4-Channel Digital Input Terminal |
|---|---|
| Brand | BECKHOFF |
| Model | EL1024 |
| Category | PLCs & I/O |
| Input filter | typ. 3 ms |
| Input current | typ. 6 mA (EN 61131-2, type 2) |
| Nominal voltage | 24 V DC (-15%/+20%) |
| Number of inputs | 4 |
| Electrical isolation | 500 V (E-bus/field potential) |
| Connection technology | 2-wire |
| Current consumption E-bus | typ. 90 mA |
| Current consumption power contacts | typ. 30 mA + load |
