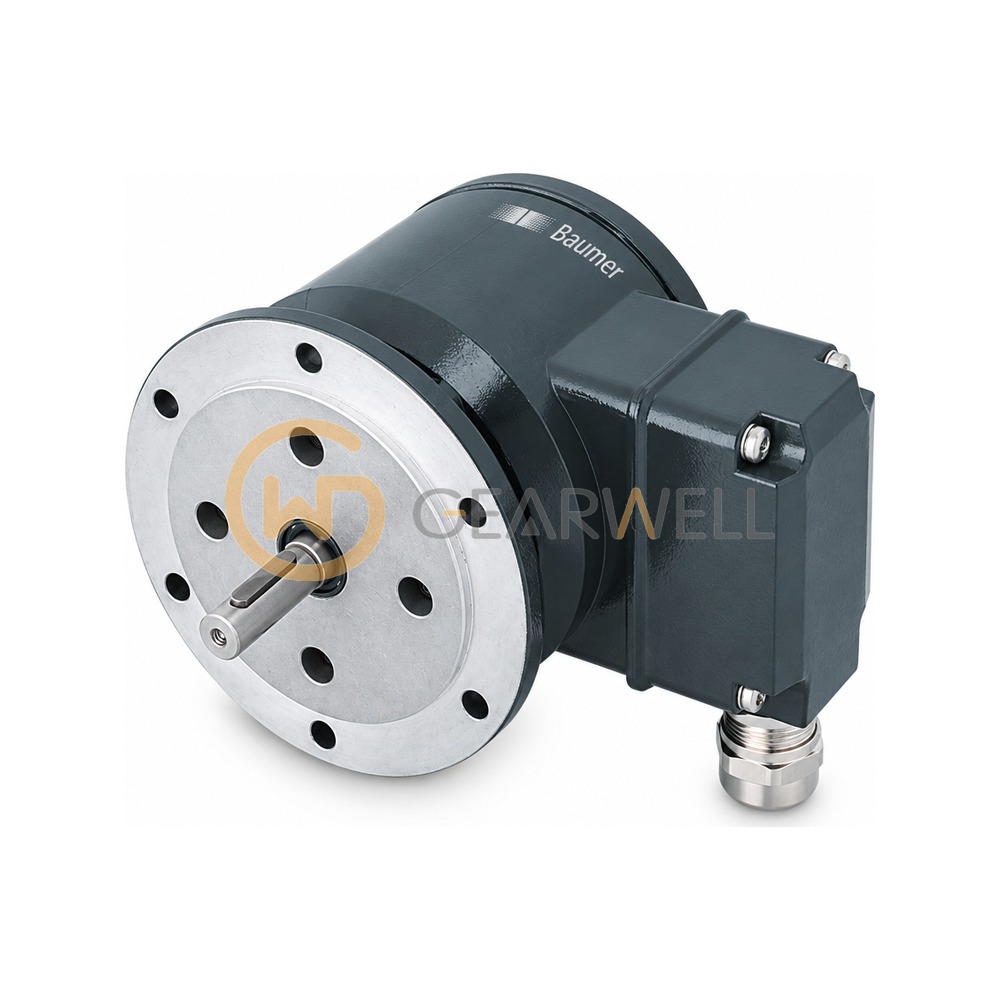

BAUMER 11042716 POG10 DN 1024 I Heavy-Duty Incremental Encoder
- Brand
- BAUMER
- Model
- 11042716
- GEARWELL SKU
- GWP-000020547
- Category
- Encoders & Position
Key specifications
- Flange
- EURO flange B10, ø115 mm
- Shaft type
- ø11 mm solid shaft
- Output stages
- HTL-P (power linedriver)
- Article number
- 11042716
- Output signals
- K1, K2, K0 + inverted
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BAUMER 11042716 POG10 DN 1024 I Heavy-Duty Incremental Encoder |
|---|---|
| Brand | BAUMER |
| Model | 11042716 |
| Category | Encoders & Position |
| Flange | EURO flange B10, ø115 mm |
| Shaft type | ø11 mm solid shaft |
| Output stages | HTL-P (power linedriver) |
| Article number | 11042716 |
| Output signals | K1, K2, K0 + inverted |
| Voltage supply | 9 … 30 VDC |
| Operating speed | ≤ 12000 rpm (mechanical) |
| Type designation | POG10 DN 1024 I |
| Protection EN 60529 | IP 66 |
| Pulses per revolution | 1024 |
