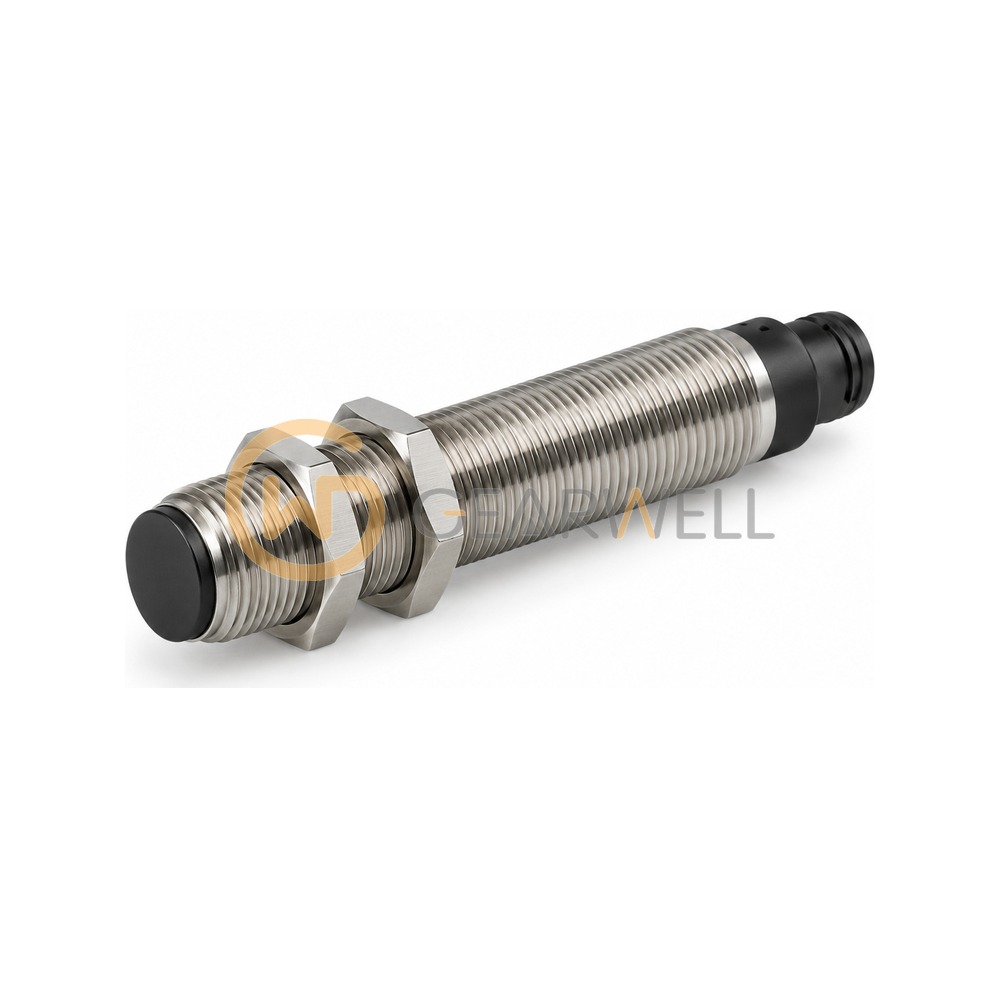

BALLUFF BES M08EH-PSC40F-S49G BES001J Inductive Proximity Sensor
- Brand
- BALLUFF
- Model
- BES M08EH-PSC40F-S49G
- GEARWELL SKU
- GWP-000012697
- Category
- Proximity & Photoelectric Sensors
Key specifications
- Range
- 4 mm
- Connection
- M8x1 male, 3-pin
- Dimensions
- Ø 8 x 60 mm
- Order code
- BES001J
- Installation
- non-flush
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | BALLUFF BES M08EH-PSC40F-S49G BES001J Inductive Proximity Sensor |
|---|---|
| Brand | BALLUFF |
| Model | BES M08EH-PSC40F-S49G |
| Category | Proximity & Photoelectric Sensors |
| Range | 4 mm |
| Connection | M8x1 male, 3-pin |
| Dimensions | Ø 8 x 60 mm |
| Order code | BES001J |
| Installation | non-flush |
| Housing style | M8x1 |
| Switching output | PNP NO |
| Type designation | BES M08EH-PSC40F-S49G |
| Operating voltage | 10...30 VDC |
| Switching frequency | 4000 Hz |
