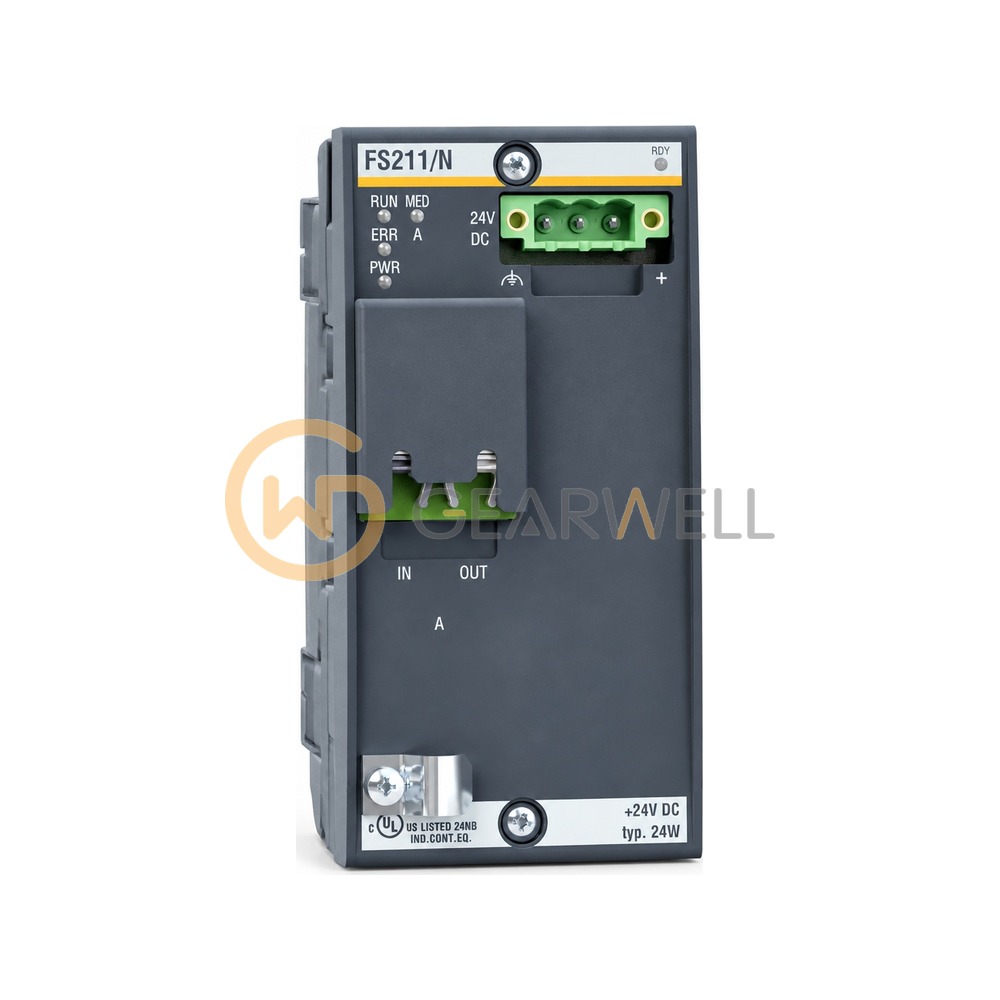

Bachmann FS211/N Fx210 FASTBUS Slave Module, 1 FO Interface
- Brand
- Bachmann
- Model
- FS211/N
- GEARWELL SKU
- GWP-000033389
- Category
- Industrial Communication
Key specifications
- Evidence
- Bachmann official datasheet FM211/FM212/FS211/N/FS212/N (09.10.2025)
- Part number
- 00017823-00
- FO interfaces
- 1 (HCS/PCF 150 m or POF 40 m; special HCS 180 m)
- Input voltage
- 24 V DC (18 to 34 V)
- Output currents
- +5 V 2800 mA; +15 V 250 mA; -15 V 200 mA
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Bachmann FS211/N Fx210 FASTBUS Slave Module, 1 FO Interface |
|---|---|
| Brand | Bachmann |
| Model | FS211/N |
| Category | Industrial Communication |
| Evidence | Bachmann official datasheet FM211/FM212/FS211/N/FS212/N (09.10.2025) |
| Part number | 00017823-00 |
| FO interfaces | 1 (HCS/PCF 150 m or POF 40 m; special HCS 180 m) |
| Input voltage | 24 V DC (18 to 34 V) |
| Output currents | +5 V 2800 mA; +15 V 250 mA; -15 V 200 mA |
| Galvanic isolation | 500 V |
| Current consumption | max. 1.2 A at 24 V |
| Nominal output power | 17 W |
| Operating temperature | 0 to +60 °C |
| Max. number of stations | 16 |
