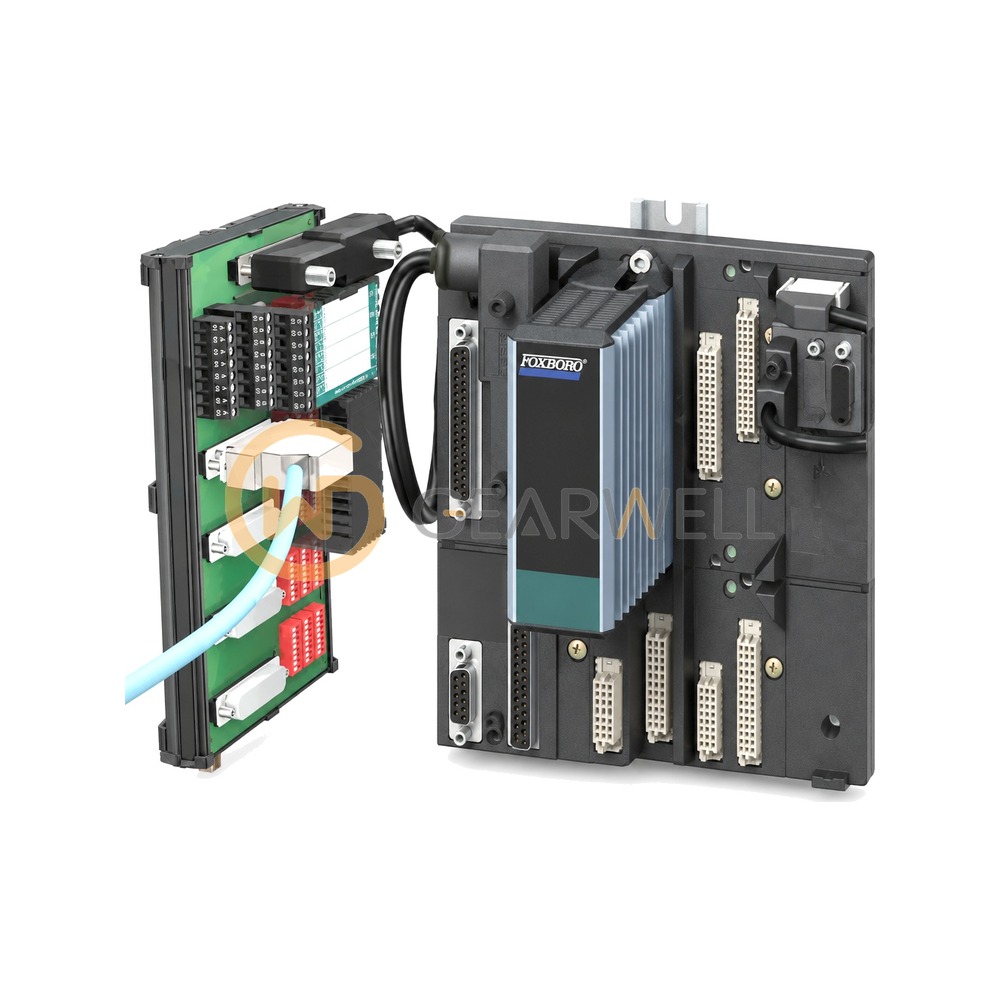

Foxboro P0926GU FBM230 FDSI Module, Four Serial Ports, Single
- Brand
- Foxboro
- Model
- P0926GU
- GEARWELL SKU
- GWP-000033984
- Category
- Industrial Communication
Key specifications
- Mass
- 284 g (10 oz) approximate
- Module
- FBM230
- Evidence
- Foxboro PSS 21H-2Z30 B4 (official PSS hosted at paresource.se.com)
- Part number
- P0926GU
- I/O capacity
- Up to 64 devices, up to 2000 DCI connections
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | Foxboro P0926GU FBM230 FDSI Module, Four Serial Ports, Single |
|---|---|
| Brand | Foxboro |
| Model | P0926GU |
| Category | Industrial Communication |
| Mass | 284 g (10 oz) approximate |
| Module | FBM230 |
| Evidence | Foxboro PSS 21H-2Z30 B4 (official PSS hosted at paresource.se.com) |
| Part number | P0926GU |
| I/O capacity | Up to 64 devices, up to 2000 DCI connections |
| Serial ports | 4 (RS-232 / RS-422 / RS-485, configurable per port) |
| Transmission rate | 300 to 115200 baud |
| Operating temperature | -20 to +70 °C |
| Power consumption (max.) | 7 W |
| Product specification | PSS 21H-2Z30 B4 |
| Supply voltage (redundant) | 24 V dc +5%, -10% |
