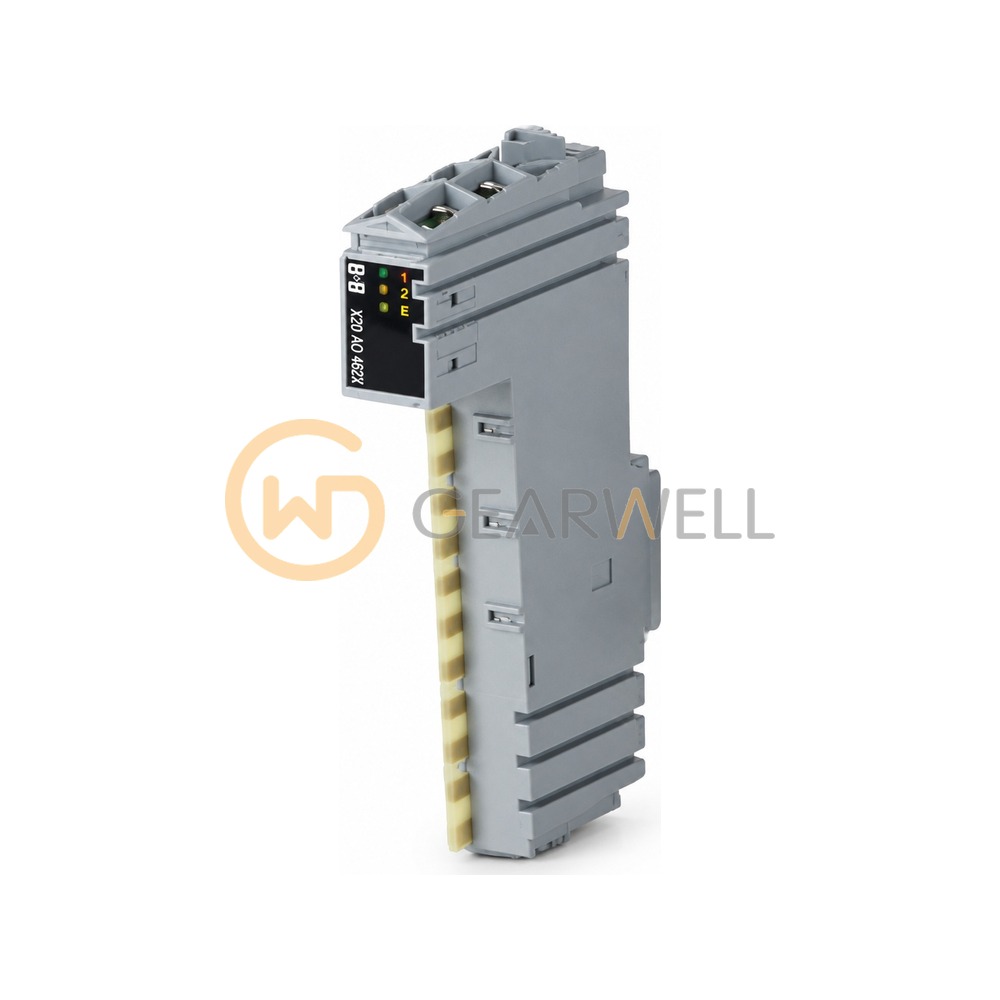

B&R X20AO4622 X20 Analog Output Module, 4 AO ±10 V / 0-20 mA / 4-20 mA
- Brand
- B&R
- Model
- X20AO4622
- GEARWELL SKU
- GWP-000033344
- Category
- PLCs & I/O
Key specifications
- Outputs
- 4 analog outputs
- Evidence
- B&R official product page (br-automation.com)
- Resolution
- Voltage ±12-bit; current 12-bit
- Output signal
- ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals
- Conversion time
- 300 µs for all outputs
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | B&R X20AO4622 X20 Analog Output Module, 4 AO ±10 V / 0-20 mA / 4-20 mA |
|---|---|
| Brand | B&R |
| Model | X20AO4622 |
| Category | PLCs & I/O |
| Outputs | 4 analog outputs |
| Evidence | B&R official product page (br-automation.com) |
| Resolution | Voltage ±12-bit; current 12-bit |
| Output signal | ±10 V or 0 to 20 mA / 4 to 20 mA, via different terminals |
| Conversion time | 300 µs for all outputs |
| Material number | X20AO4622 |
| Load per channel | Voltage: max. ±10 mA, load ≥1 kΩ; current: max. 600 Ω (Rev. ≥J0) |
| Output protection | Short-circuit proof, current limiting ±40 mA |
| Power consumption | Bus 0.01 W; internal I/O 1.8 W (Rev. ≥J0) |
| Degree of protection | IP20 |
