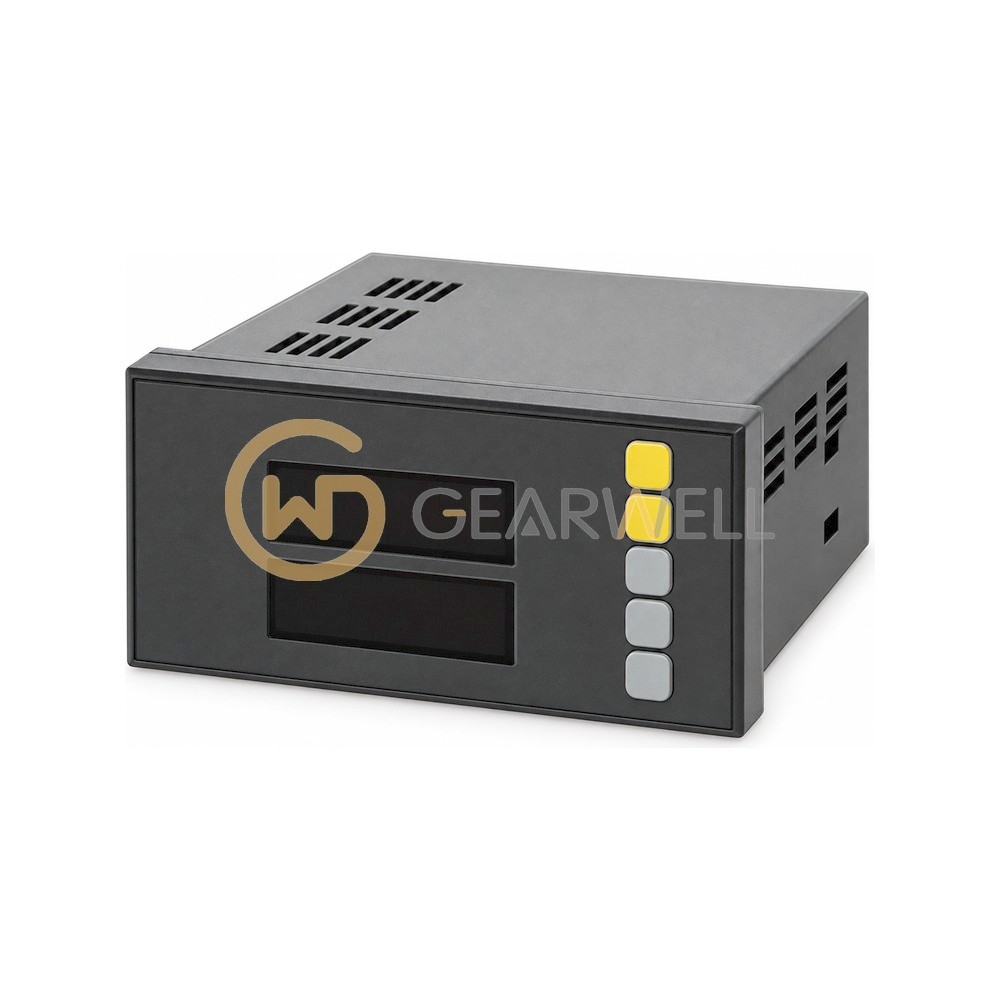

AUTONICS TZN4W-R4C TZN Series Dual-Speed PID Temperature Controller
- Brand
- AUTONICS
- Model
- TZN4W-R4C
- GEARWELL SKU
- GWP-000016482
- Category
- Pressure, Flow & Temperature
Key specifications
- Option output
- Event 1, PV transmission (DC4-20mA)
- Power voltage
- 100-240VAC~ 50/60Hz
- Control method
- ON/OFF, P, PI, PD, PIDF, PIDS
- Control output
- Current output (DC4-20mA)
- Display method
- 4-digit 7-segment LED
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS TZN4W-R4C TZN Series Dual-Speed PID Temperature Controller |
|---|---|
| Brand | AUTONICS |
| Model | TZN4W-R4C |
| Category | Pressure, Flow & Temperature |
| Option output | Event 1, PV transmission (DC4-20mA) |
| Power voltage | 100-240VAC~ 50/60Hz |
| Control method | ON/OFF, P, PI, PD, PIDF, PIDS |
| Control output | Current output (DC4-20mA) |
| Display method | 4-digit 7-segment LED |
| Product status | Discontinued |
| Sampling cycle | 500ms |
| Display accuracy | F.S ±0.3% or 3℃, select the higher one |
| Input specification | Thermocouple K, J, E, T, R, S, N, W; RTD DPt100Ω, JPt100Ω; analog 1-5VDC, 0-10VDC, DC4-20mA |
