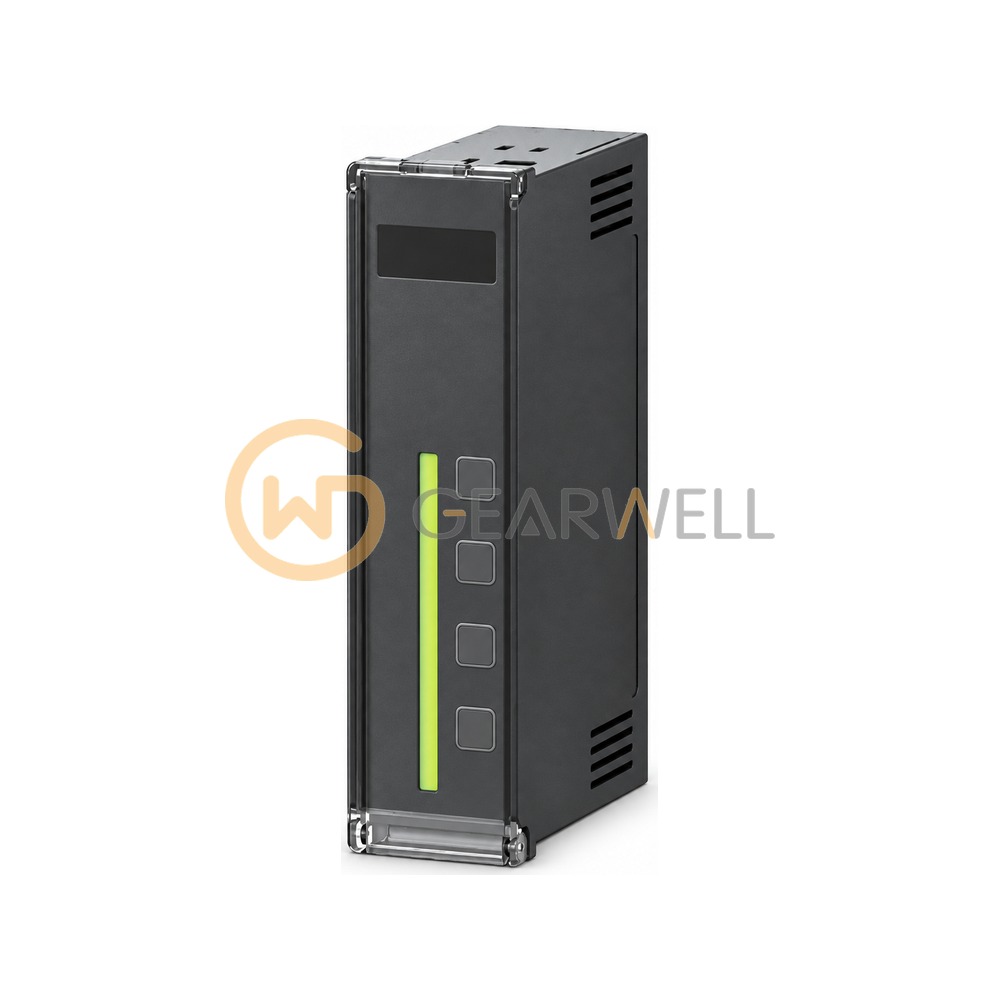

AUTONICS KN-1211B KN-1000B Series Bar Graph Indicator
- Brand
- AUTONICS
- Model
- KN-1211B
- GEARWELL SKU
- GWP-000016407
- Category
- Test & Measurement
Key specifications
- Weight
- Approx. 304g (approx. 182g unit)
- Alarm output
- 2-point relay, 250VAC 3A 1c
- Power supply
- 24VDC
- Input type (TC)
- K, J, E, T, R, B, S, N, C (W5), L, U, PLII (12 types)
- Input type (RTD)
- JPt100, DPt100, DPt50, Cu50, Cu100 (5 types)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS KN-1211B KN-1000B Series Bar Graph Indicator |
|---|---|
| Brand | AUTONICS |
| Model | KN-1211B |
| Category | Test & Measurement |
| Weight | Approx. 304g (approx. 182g unit) |
| Alarm output | 2-point relay, 250VAC 3A 1c |
| Power supply | 24VDC |
| Input type (TC) | K, J, E, T, R, B, S, N, C (W5), L, U, PLII (12 types) |
| Input type (RTD) | JPt100, DPt100, DPt50, Cu50, Cu100 (5 types) |
| Display accuracy | ±0.2% F.S. ±1 digit (25 °C ±5 °C) |
| Input type (analog) | Voltage: ±1.000V, ±50.00mV, -199.9-200.0mV, -1.00-10.00V; Current: 4-20mA, 0-20mA |
| Transmission output | Isolated 4-20mA (PV transmission), load max. 600 ohm |
