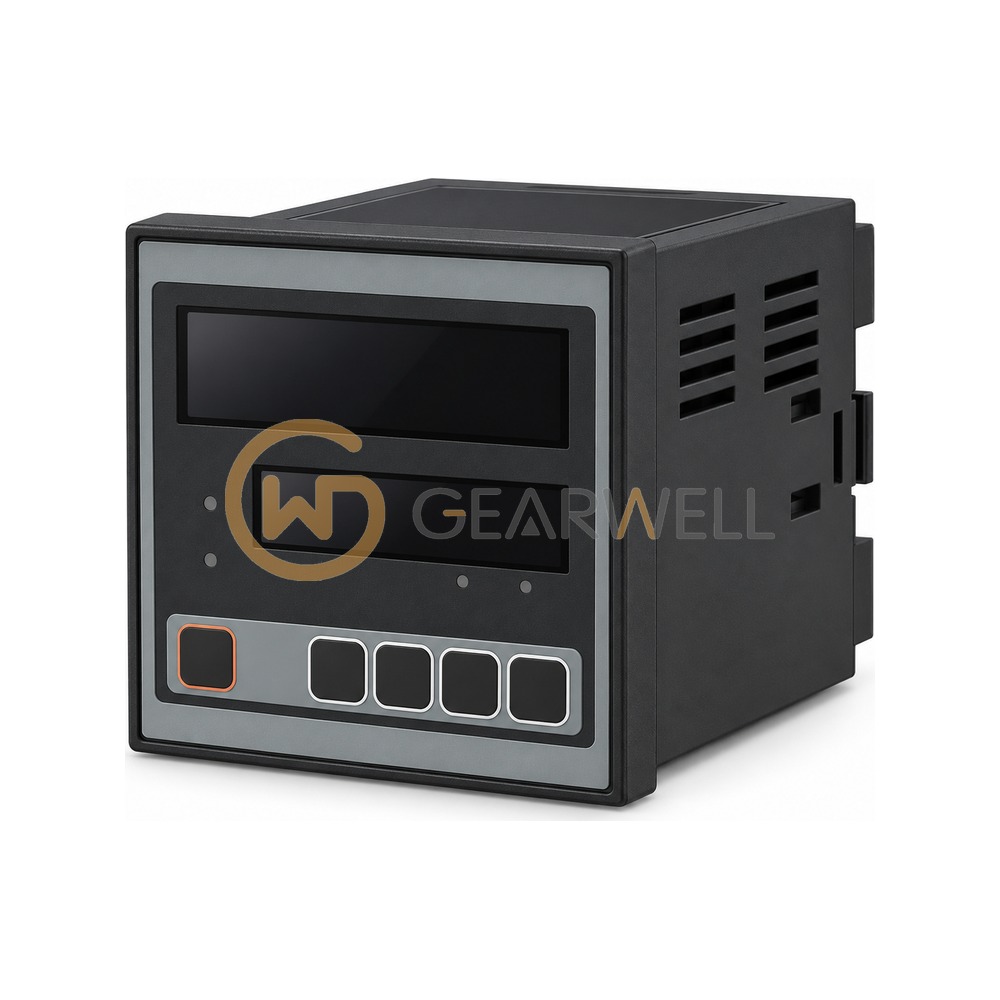

AUTONICS CT6M-I4 CT Series Programmable Digital Counter/Timer
- Brand
- AUTONICS
- Model
- CT6M-I4
- GEARWELL SKU
- GWP-000016404
- Category
- Test & Measurement
Key specifications
- Display
- 6-digit 7-segment LED
- Operation
- Counter: up, down, up/down; Timer: up, down
- Connection
- Terminal block
- Signal input
- Voltage input (PNP), no-voltage input (NPN)
- Power voltage
- 100-240VAC 50/60Hz
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | AUTONICS CT6M-I4 CT Series Programmable Digital Counter/Timer |
|---|---|
| Brand | AUTONICS |
| Model | CT6M-I4 |
| Category | Test & Measurement |
| Display | 6-digit 7-segment LED |
| Operation | Counter: up, down, up/down; Timer: up, down |
| Connection | Terminal block |
| Signal input | Voltage input (PNP), no-voltage input (NPN) |
| Power voltage | 100-240VAC 50/60Hz |
| Control output | Indicator (no output) |
| Counting range | -99999 to 999999 |
| Protection rating | IP65 (front panel) |
| Max. counting speed | 1, 30, 1k, 5k, 10k cps |
| External power supply | Max. 12VDC ±10%, 100mA |
