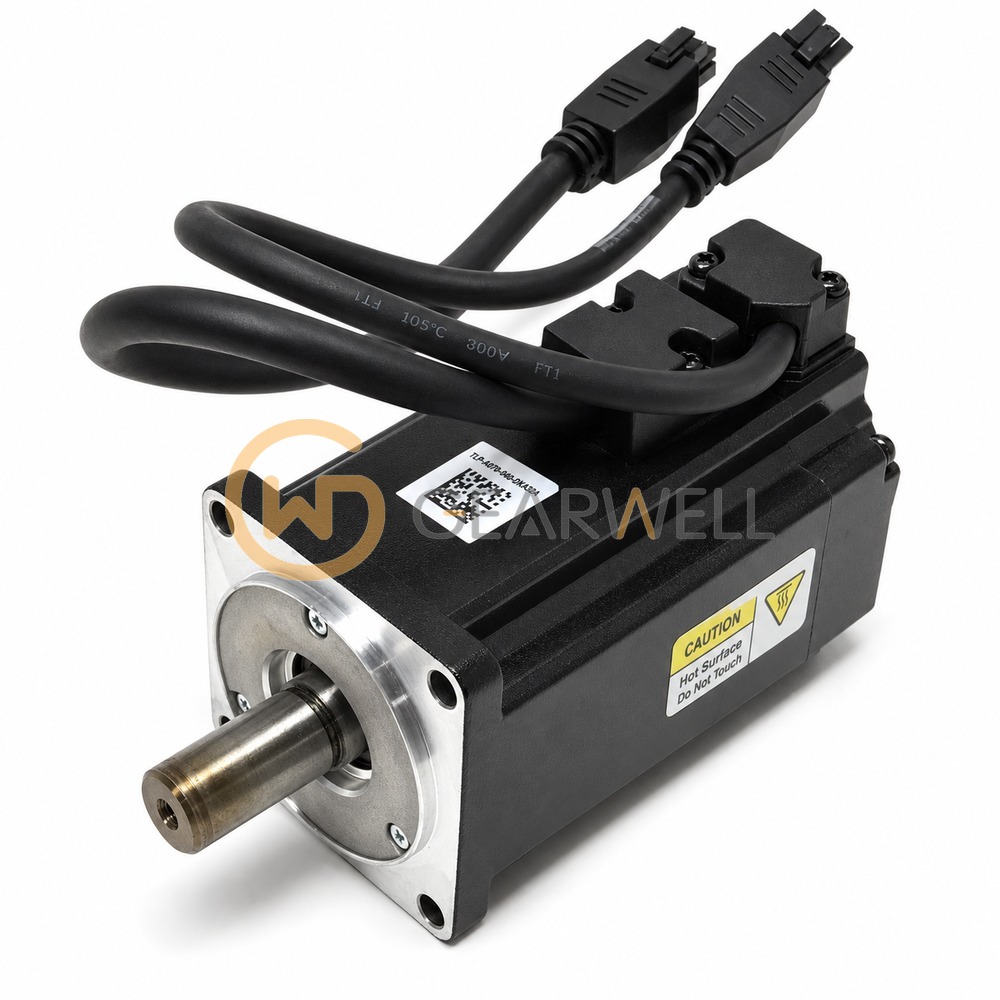

Allen-Bradley TLP-A070-040-DKA32A Kinetix TLP Servo Motor
- Brand
- Allen-Bradley
- Model
- TLP-A070-040-DKA32A
- GEARWELL SKU
- GWP-000003210
- Category
- Servo Systems
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TLP-A070-040-DKA32A is a Kinetix TLP multi-purpose servo motor (TLP-A070-040) for the 200V class with a 70 mm frame (bolt circle), rated 0.40 kW at 3000 rpm with a maximum speed of 6000 rpm. Continuous stall torque is 1.27 N·m and peak stall torque 4.275 N·m. It has a 24-bit absolute encoder (single-turn, multi-turn with a battery), a smooth shaft, rectangular connectors on 0.3 m motor cables, no brake and no shaft seal. TLP motors are optimized for Kinetix 5100 and Kinetix 5300 servo drives.
Technical reference
| Product name | Allen-Bradley TLP-A070-040-DKA32A Kinetix TLP Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLP-A070-040-DKA32A |
| Category | Servo Systems |
