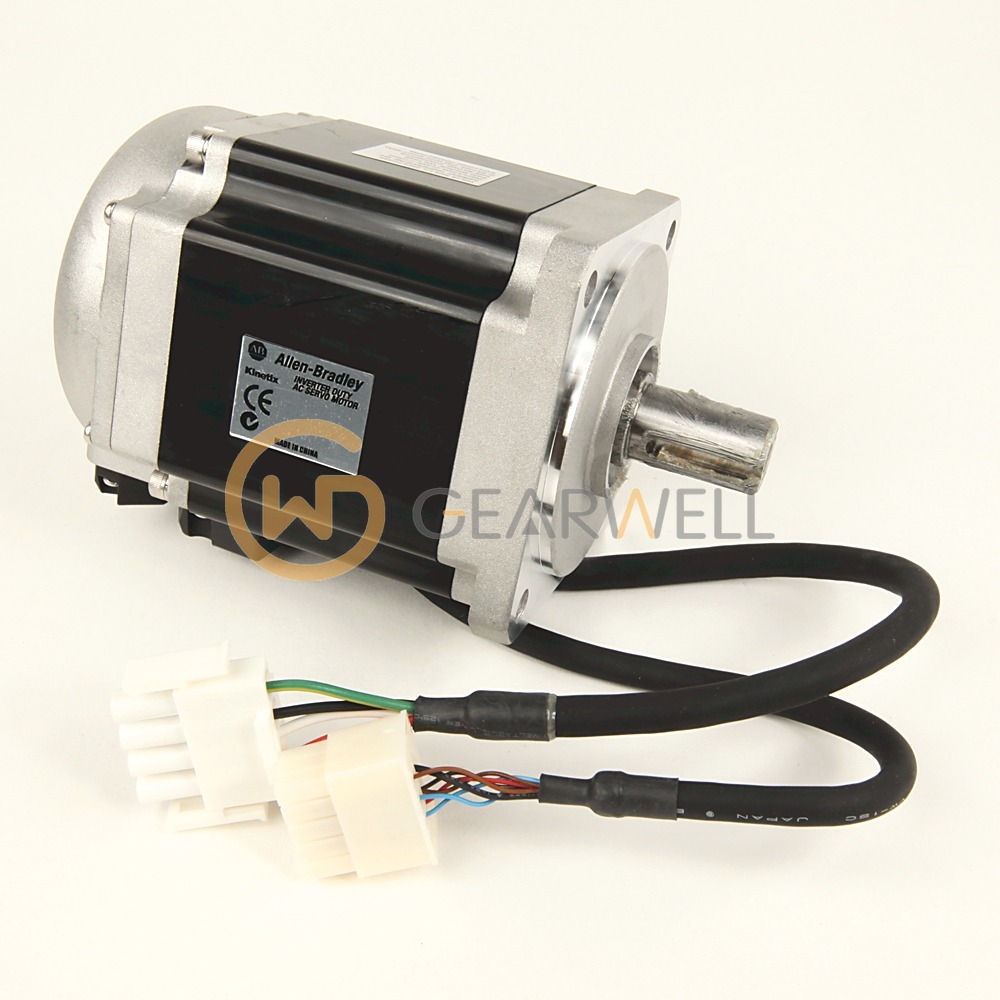

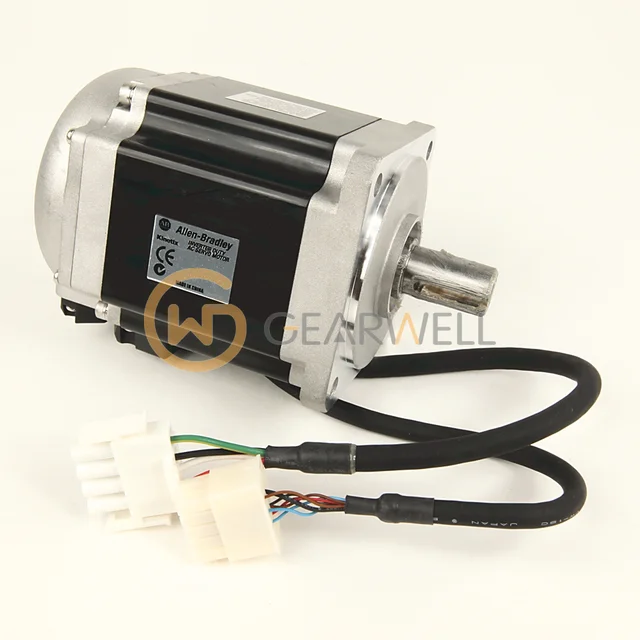

Allen-Bradley TL-A2540P-BJ32AA Kinetix TL Compact Servo Motor
- Brand
- Allen-Bradley
- Model
- TLA2540PBJ32AA
- GEARWELL SKU
- GWP-000004040
- Category
- Servo Systems
Key specifications
- Shaft
- Keyed
- Feedback
- Battery-backed multi-turn absolute encoder
- Bolt circle
- 90 mm
- Voltage class
- 230 V AC
- Maximum operating speed
- 5000 rpm
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley TL-A2540P-BJ32AA is a Kinetix TL compact servo motor (TL-A2540) for the 200V class with a 90 mm frame, IP65 housing, shaft key and metric flange. Rated speed is 4575 rpm; continuous stall torque is 2.94 N·m, peak stall torque 7.10 N·m and rated output 0.86 kW. It has a 17-bit multi-turn absolute encoder (battery-backed; single-turn without the battery), rectangular connectors on 300 mm cables and no brake.
Technical reference
| Product name | Allen-Bradley TL-A2540P-BJ32AA Kinetix TL Compact Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | TLA2540PBJ32AA |
| Category | Servo Systems |
| Shaft | Keyed |
| Feedback | Battery-backed multi-turn absolute encoder |
| Bolt circle | 90 mm |
| Voltage class | 230 V AC |
| Maximum operating speed | 5000 rpm |
