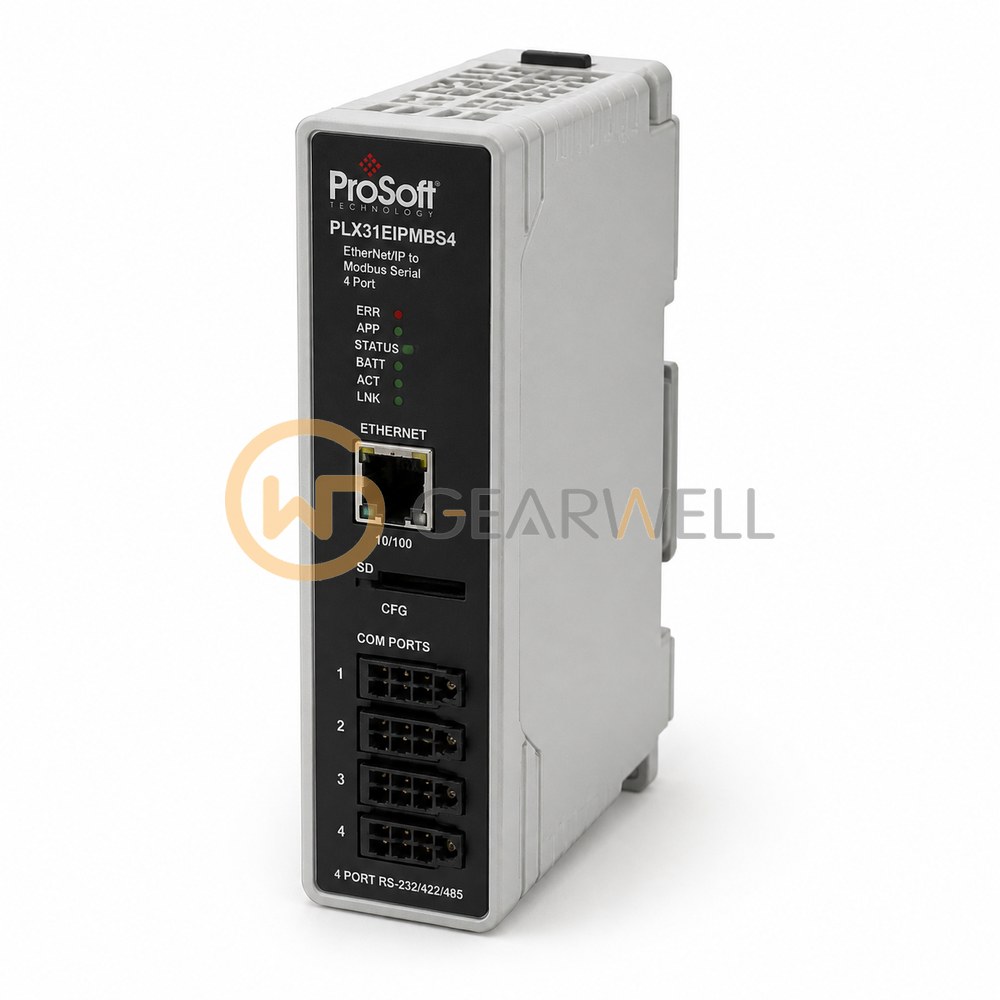

ProSoft Technology PLX31-EIP-MBS4 EtherNet/IP to Modbus Serial Gateway, 4 Ports
- Brand
- ProSoft Technology
- Model
- PLX31EIPMBS4
- GEARWELL SKU
- GWP-000004194
- Category
- Industrial Communication
Key specifications
- Power supply
- 24 V DC nominal; 10–36 V DC permitted
- Product type
- EtherNet/IP to four-port Modbus serial communication gateway
- Serial application ports
- 4
- Ethernet port
- 1 × 10/100 Base-T, RJ45
- Modbus master command list
- Up to 100 commands per master port
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsTechnical reference
| Product name | ProSoft Technology PLX31-EIP-MBS4 EtherNet/IP to Modbus Serial Gateway, 4 Ports |
|---|---|
| Brand | ProSoft Technology |
| Model | PLX31EIPMBS4 |
| Category | Industrial Communication |
| Power supply | 24 V DC nominal; 10–36 V DC permitted |
| Product type | EtherNet/IP to four-port Modbus serial communication gateway |
| Serial application ports | 4 |
| Ethernet port | 1 × 10/100 Base-T, RJ45 |
| Modbus master command list | Up to 100 commands per master port |
| Serial protocol | Modbus RTU / ASCII |
| Enclosure rating | IP20; NEMA/UL open type; DIN-rail mounting |
| Manufacturer catalog number | PLX31-EIP-MBS4 |
| Serial baud rate | 110 baud–115.2 kbit/s |
| Exchange capacity | Up to 10,000 16-bit registers |
| Serial interfaces | RS-232, RS-422 or RS-485 |
| Manufacturer | ProSoft Technology |
| Operating temperature | −25–70 °C |
