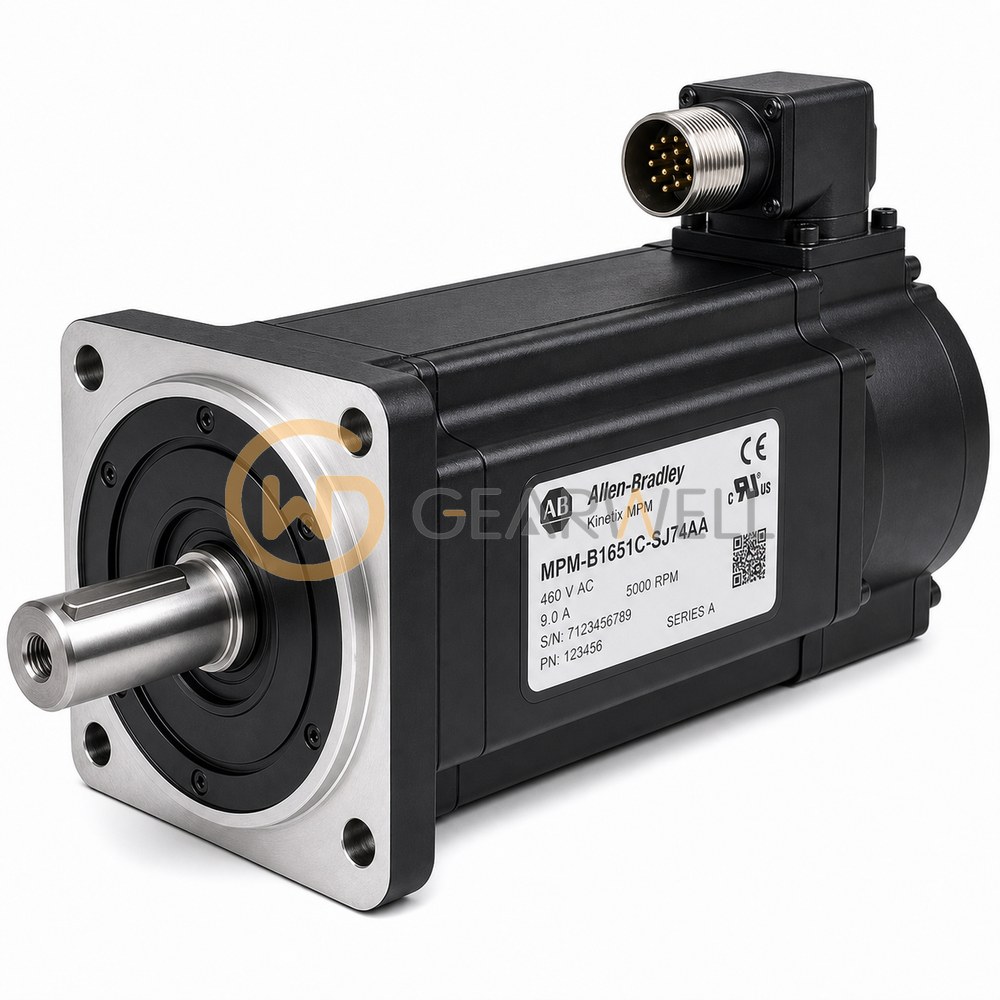

Allen-Bradley MPM-B1651C-SJ74AA Servo Motor
- Brand
- Allen-Bradley
- Model
- MPM-B1651C-SJ74AA
- GEARWELL SKU
- GWP-000001204
- Category
- Servo Systems
Key specifications
- Size
- 1500 r/m
- Voltage
- 24 V DC
- Product type
- MP-Series MPM 480V AC Rotary Servo Motor
- Lifecycle status
- Active
- Product description
- Bulletin MPM - Medium-Inertia Servo Motors Product, 460 V, 1500 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF)
This opens your email client. Send the email to submit your inquiry; this website does not store your message.
← Back to productsProduct overview
The Allen-Bradley MPM-B1651C-SJ74AA is a Kinetix MPM medium-inertia servo motor (MPM-B1651C) for the 400V class with a 165 mm frame and 1 magnet stack, a base speed of 1500 rpm, a rated speed of 3000 rpm and a maximum speed of 3500 rpm. Continuous stall torque is 10.7 N·m, peak stall torque 23.2 N·m and rated output 2.50 kW. It has a 1024 sin/cos absolute single-turn encoder (Hiperface), a shaft key without shaft seal, a right-angle SpeedTec DIN connector that rotates 180°, a 24V DC holding brake and an IEC metric flange with free mounting holes (type FF).
Technical reference
| Product name | Allen-Bradley MPM-B1651C-SJ74AA Servo Motor |
|---|---|
| Brand | Allen-Bradley |
| Model | MPM-B1651C-SJ74AA |
| Category | Servo Systems |
| Size | 1500 r/m |
| Voltage | 24 V DC |
| Product type | MP-Series MPM 480V AC Rotary Servo Motor |
| Lifecycle status | Active |
| Product description | Bulletin MPM - Medium-Inertia Servo Motors Product, 460 V, 1500 RPM, Single-turn High-resolution Encoder. Keyed Shaft Extension, (7) SpeedTEC DIN Connector, Right Angle, 180° Rotatable (Quick Connect), 24V DC Brake, IEC Metric, Free Mounting Holes (Type FF) |
